Job Management Partner 1/Integrated Management - Manager GUI Reference

2.7 Edit Event Details window

This window is used to edit and specify the memo entries of JP1 events when the memo entries setting function is enabled.

When the integrated monitoring database is used, the memo entries setting function allows the user to add notes to JP1 events saved in the integrated monitoring database that are displayed in the Event Console window. Users that have JP1_Console_Admin permission or JP1_Console_Operator permission can use this function.

Either of the following operations displays the window:

Clicking the Edit button in the Event Details window

Selecting a JP1 event, and then choosing the Edit Event Details menu in the event list

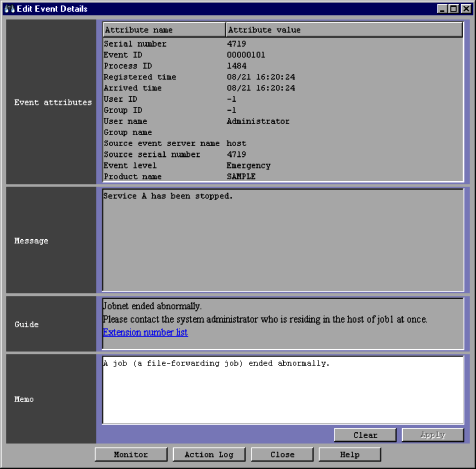

The following figure shows an example of the Edit Event Details window.

Figure 2-10 Edit Event Details window

The following describes the items displayed in the Edit Event Details window:

Event attributes

This area displays the attribute names and values for a JP1 event. The attribute names that are displayed depend on the event.

Message

This area displays the message text of a JP1 event.

Guide

This area displays the event guide information for the JP1 event for which detailed information is displayed. If no event guide information exists for the JP1 event, the following message appears:

KAVB1588-I There is no matching guide information.

The Guide area is displayed only if the event guide function is enabled.

The event guide information to be displayed in this area must be specified in the event guide information file. For details about the event guide information file, see Event guide information file (jco_guide.txt) in 2. Definition Files in the manual Job Management Partner 1/Integrated Management - Manager Command and Definition File Reference.

Memo

This area is used to display and edit memo entries for the displayed JP1 event. A character string of no more than 512 bytes can be entered in this area.

The following buttons are available in the Memo area.

Clear

Deletes the character string entered in the Memo area.

Apply

Stores the character string entered in the Memo area as a memo entry for the displayed JP1 event. The button is disabled when the memo entry has been stored.

Monitor

Clicking this button opens the monitor window for the JP1 event for which detailed information is displayed. This button is not available in Web-based JP1/IM - View. This button is disabled when no monitor window has been set for the JP1 event.

Action Log

Clicking this button opens the Action Log window if an automated action has been set for the JP1 event for which detailed information is displayed.
