2.6 Event Details window

The Event Details window displays detailed attribute information about a JP1 event. Either of the following operations displays the window:

In the Event Console window, the user chooses Event Details from the View menu.

In the Related Events window, the user selects and right-clicks a JP1 event, and then chooses Event Details from the displayed pop-up menu.

The following figure shows an example of the Event Details window.

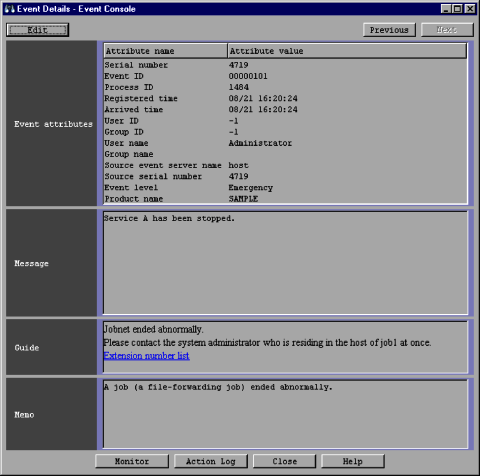

Figure 2-9 Event Details window

The following describes the items displayed in the Event Details window:

Edit

Clicking this button displays the Edit Event Details window. The Edit button is displayed only if settings for the integrated monitoring database and memo entries have been specified. Users that have JP1_Console_Admin permission or JP1_Console_Operator permission can use this button.

Previous

Clicking this button displays the detailed information about the JP1 event displayed one row above in the event list. Note that this button is disabled in the following cases:

When two or more events are selected in the Event Console window

When the JP1 event displayed at the top of the event list is selected

Next

Clicking this button displays the detailed information about the JP1 event displayed one row below in the event list. Note that this button is disabled in the following cases:

When two or more events are selected in the Event Console window

When the JP1 event displayed at the bottom of the event list is selected

Event attributes

This area displays the attribute names and values for a JP1 event. The attribute names that are displayed depend on the event.

Message

This area displays the message text of a JP1 event.

Guide

This area displays the event guide information for the JP1 event for which detailed information is displayed. If no event guide information exists for the JP1 event, the following message appears:

KAVB1588-I There is no matching guide information.

The Guide area is displayed only if the event guide function is enabled.

The event guide information to be displayed in this area must be specified in the event guide information file. For details about the event guide information file, see Event guide information file (jco_guide.txt) in 2. Definition Files in the manual Job Management Partner 1/Integrated Management - Manager Command and Definition File Reference.

Memo

This area displays memo entries set for the JP1 event. The Memo area is displayed only if settings for the integrated monitoring database and memo entries have been specified.

Monitor

Clicking this button opens the monitor window for the JP1 event for which detailed information is displayed. This button is not available in Web-based JP1/IM - View. This button is disabled if no monitor window has been set for the JP1 event.

Action Log

Clicking this button opens the Action Log window if an automated action has been set for the JP1 event for which detailed information is displayed.
