2.8 Related Events (Summary) window

When the consolidated display of repeated events function is enabled, the Related Events (Summary) window lists the repeated events for a consolidation event.

The consolidated display of repeated events function consolidates identical JP1 events received in succession by JP1/IM - View into one event, and displays the event on the Monitor Events or Severe Events page of the Event Console window.

An event into which identical JP1 events have been consolidated is called a consolidation event. A consolidation event for which consolidation is in progress is called an event being consolidated. A consolidation event for which consolidation has been completed is called a consolidation completion event. Of the successive identical JP1 events received by JP1/IM - View, the first JP1 event is called the consolidation start event and the other JP1 events are called repeated events. An event for which no consolidation occurs because there are no repeated events is called a non-consolidation event.

The Related Events (Summary) window is displayed in either of the following cases:

Note that the Related Events (Summary) window is displayed only when consolidation events exist.

The following figure shows an example of the Related Events (Summary) window.

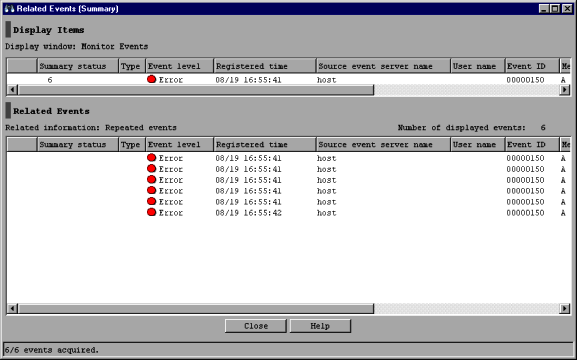

Figure 2-11 Related Events (Summary) window

[Figure]

The following describes the items displayed in the Related Events (Summary) window:

Display Items
This area displays the consolidation event selected in the Event Console window (Monitor Events or Severe Events page). The items displayed in the area are the same as the items displayed in the Event Console window when the function for displaying consolidated repeated events (Display most significant status) is enabled. As in the Event Console window, the user can change the status of the consolidation event. When the Related Events (Summary) window has been opened from the Severe Events page, the user can delete the consolidation event.
Information is displayed in the Display Items area as follows:
  • If the event status is changed, the corresponding status icon is displayed in the leftmost column. The status change is applied to all the repeated events displayed in the Related Events list, and the status icon is also displayed for each repeated event.
  • If the status of the consolidation start event displayed in the Related Events list is changed and the corresponding status icon is displayed, the status icon is also displayed in the leftmost column of the Display Items area.
  • If the statuses of repeated events displayed in the Related Events list are not the same, an exclamation mark (!) is displayed in the leftmost column of the area.
  • If the consolidation event is deleted, Del is displayed as the consolidation status in the Display Items area, and the displayed items are dimmed. In addition, all the repeated events displayed in the Related Events area are deleted.
  • If the consolidation start event displayed in the Related Events list is deleted, Del is displayed as the consolidation status of the consolidation event displayed in the Display Items area, and the displayed items are dimmed.
  • If the display items in the Preferences window are changed, the items displayed in the Display Items area are also changed.

Display window
The name of the page from which the Related Events (Summary) window was opened is displayed in the following format:
Display window: page-name
The following table lists the page names that can be displayed after Display window.

Table 2-10 Page names that can be displayed after "Display window"

No. Page name Description
1 Monitor Events Displayed when the Related Events (Summary) window is opened from the Monitor Events page of the Event Console window.
2 Severe Events Displayed when the Related Events (Summary) window is opened from the Severe Events page of the Event Console window.

Related Events list
The Related Events list displays the consolidation start event and the repeated events for the consolidation event selected in the Event Console window (Monitor Events or Severe Events page). The items displayed in the Related Events list are the same as the items displayed in the Event Console window when the function for displaying consolidated repeated events (Display most significant status) is enabled. However, nothing is displayed in the Summary Status column. The user can change the status of the repeated events in the same way as in the Event Console window. If the Related Events (Summary) window has been opened from the Severe Events page, the user can delete the consolidation start event and the repeated events for the consolidation event.
Information is displayed in the Related Events list as follows:
  • If the event status is changed, the corresponding status icon is displayed in the leftmost column.
  • If selected repeated events are deleted, they are not displayed in the Related Events list.
  • The Coloring settings in the Preferences window are not applied to the Related Events list. The background colors defined for severity levels (Emergency, Alert, Critical, Error, and Warning) are not added.
  • If the display items in the Preferences window are changed, the items displayed in the Related Events list are also changed.
  • The user can refresh the information displayed in the Related Events (Summary) window by closing and re-opening the window.
  • The user can change the consolidation event displayed in the Display Items area by selecting a new consolidation event in the Event Console window, choosing View from the menu bar, and then choosing Display Related Event List.
  • If the status of an event displayed in the Related Events (Summary) window is changed in another window, the change is not applied to the Related Events (Summary) window. The user can display the latest information by closing and re-opening the Related Events (Summary) window.

When the consolidation start event or repeated events cannot be displayed
The following dummy events (events that are not registered in the event database) are displayed dimmed:
  • Dummy event for the message KAVB0352-E (when the consolidation start event or repeated events cannot be acquired because of an exception occurring in JP1/IM - Manager or JP1/Base)
  • Dummy event for the message KAVB0341-W (when the event database does not contain the consolidation start event or repeated events)
  • Dummy event for the message KAVB0342-W (when the consolidation start event or repeated events are blocked by the event receiver filters)

Related information
Information about the consolidation start event and repeated events displayed in the Related Events (Summary) window is displayed after this label. In the Related Events (Summary) window, Repeated events is displayed.

Number of displayed events
The total number of the consolidation start event and repeated events is displayed after this label.

{0}/{1} events acquired
The progress of acquiring the consolidation start event and repeated events is displayed. {0} indicates the number of acquired events (including the consolidation start event), and {1} indicates the total number of the consolidation start event and repeated events. The value {0} is incremented each time an event is added to the Related Events list.
If the acquisition of the consolidation start event and repeated events stops because of an error, the following message is displayed:
Acquisition of related events stopped.
