Job Management Partner 1/Base User's Guide
If login authentication is performed by linking with the directory server, both the JP1 administrator and directory server administrator need to perform setup tasks. Perform the following setup tasks:
- Setup tasks for the JP1 administrator
- Setting up the authentication server linking with the directory server
- Specifying a directory server
- Setting up a JP1 user (linked user)
- Setup tasks for the directory server administrator
- Registering a JP1 user (linked user) in the directory server
This section describes the JP1 administrator's setup tasks.
The following figure shows the setup procedure required on each host and the corresponding subsections in this manual when performing login authentication by linking with the directory server.

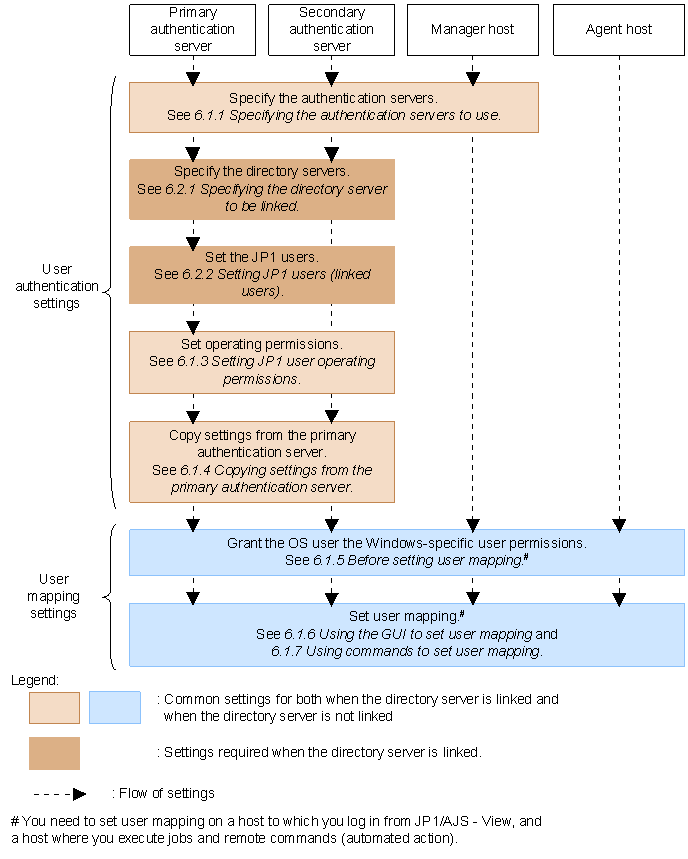

Figure 6-10 User management setup procedure (when linking with the directory server)
The settings required only when linking with the directory server as described in the subsections below. For details on other settings, see the location in this manual indicated in Figure 6-10. The settings are the same as the settings when using the authentication server only.
Notes when linking with the directory server
- A standard user can log into the authentication server even if directory server linkage is enabled.
- When the directory server administrator sets up the directory server, register JP1 users in the same container object. When linking with the directory server, CNs (common names) of a user in the directory server must be the same as the JP1 user name. For an example configuration, see Directory server linkage definition file (Windows only) in 14. Definition Files.
- When SSL is used, check the following:
Directory server
Authentication server
- Whether the certification service has been installed
- Whether the certification exported from the directory server has been installed
- Organization of this section
- 6.2.1 Specifying the directory server to be linked
- 6.2.2 Setting JP1 users (linked users)
