7.1.4 Setting the display conditions for the Event Monitor window

You can set the display conditions for the Event Monitor window, such as the event display period and the maximum display count.

To set the display conditions:

  1. From the monitoring console browser, log on to PFM - Web Console.
    The main window appears.

  2. From the menu bar frame of the main window, select the Event Monitor menu.
    The Event Monitor window (Report tab's window) appears as a separate window.

  3. Click the Show Options tab in the Event Monitor window.
    The window of the Show Options tab is displayed.

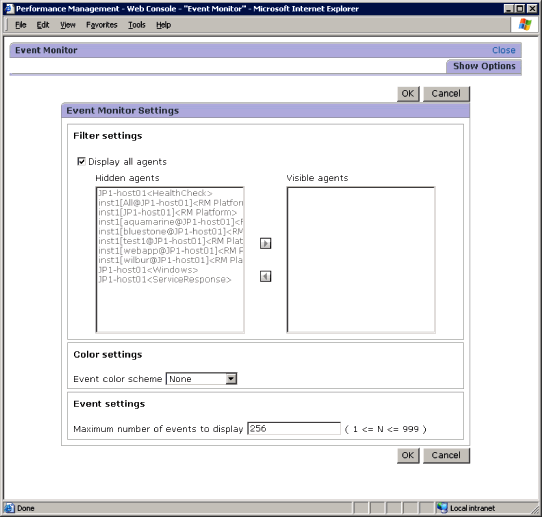

    Figure 7-4 Example of the Event Monitor window (Show Options tab)

    [Figure]

  4. Set the display condition.
    Set display conditions for the following items, if necessary:

    Filter Settings
    If you want to display the events that occurred in all the agents, select Display all agents. By default, this is selected.
    When you want to display only the specific agents, deselect Display all agents and using the move buttons ([Figure]/[Figure]), move the agent to be displayed into Visible agents and move the agent not to be displayed into Hidden agents.
    When you, however, deselect Display all agents, no event can be displayed unless you specify at least one agent in Visible agents.

    Color Settings
    You can color-code events to be displayed in the Event Monitor window according to their status (normal, warning, or abnormal). By default, Event color scheme is None (no color-coded).
    If you want to color-code the events, from the Event color scheme pull-down menu, select the color (Pastel colors or Bright colors) to be color-coded.

    Event Settings
    You can set the maximum number of events (records) to be displayed in the Event Monitor window. When you set it, enter an integer from 1 to 999 in Maximum number of events to display. The default is 256.

  5. Click the OK button.
    Accept the settings and return to the Report tab's window. In the Report tab's window, events are displayed according to the display conditions to be set.

Reference note:
The display conditions set in this operation are available during the session. When you log off, the display conditions are not saved and are reset to the initial values.
