7.1.3 Displaying alarm properties

In the Event Monitor window, clicking the icon for the alarm event (Alarm icon) displays the Alarm Properties window. In the Alarm Properties window, you can check the content of the alarm definition for the alarm event displayed in the Event Monitor window.

To display alarm properties:

1. From the monitoring console browser, log on to PFM - Web Console.
   The main window appears.

2. From the menu bar frame of the main window, select the Event Monitor menu.
   The Event Monitor window appears as a separate window.

3. From the View menu of the Event Monitor window, select Alarm events.
   The alarm events are listed.

4. Click an alarm icon for an alarm event.
   The Alarm Properties window appears as a separate window, so you can confirm the content of the alarm definition.

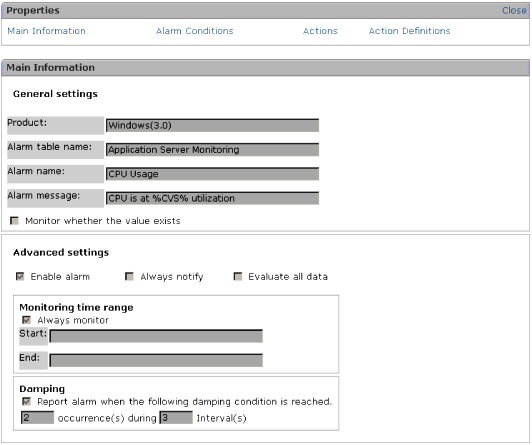

   Figure 7-3 Example of the Properties window



   Selecting the following items enables you to jump to the view area for the appropriate settings.


   Main Information

   Jump to the view area for the main information.

   Alarm Conditions

   Jump to the view area for the alarm conditions.

   Actions

   Jump to the view area for the action settings to be executed.

   Action Definitions

   Jump to the view area for the action definitions.

   If you want to close the Alarm Properties window and the Event Monitor window, click the Close button in the upper-right corner of the window.


Reference note:

If you have a user account with administrator user permissions, you can also display the Alarm Properties window from the Alarms window. For details on how to confirm the alarm properties from the Alarms window, see 6.6.5 Displaying alarm properties (definitions).
