6.6.3 Stopping monitoring with an alarm

You can temporarily stop and then start monitoring with an alarm without unbinding the alarm from the monitoring agent.

If you want to not only stop monitoring but also unbind the alarm definition from the monitoring agent, see 6.6.1(2)(b) Unbinding an alarm table bound to a monitoring agent.

To stop monitoring:

1. Log on to PFM - Web Console from the browser of the monitoring console.
   The main window appears.
   You must log on as a user with administrator user permissions.

2. In the tab frame of the main window, select the Alarms tab.
   The Alarms window appears.

3. In the navigation frame, select the alarm tables to stop monitoring from the folder of the monitoring agent.
   The selected alarm table is marked with a checkmark.

4. In the method frame, select Activate.
   The Activate window appears.

5. Change the setting of Activate.
   Deselect Activate for the alarm for which monitoring is to stop.

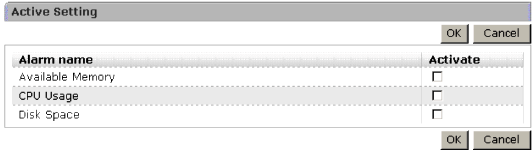

   The following figure shows an example of this setting.


   Figure 6-17 Active Setting window 1



6. Click the OK button.
   The monitoring with the alarm stops.
