6.6.1 Changing the association between an alarm table and a monitoring agent

An alarm table is a collection of several alarms. For Performance Management to monitor with alarms, you must associate one or more alarm tables with a monitoring agent. This association is known as binding. Canceling a bound alarm table is called unbinding. You can bind an alarm table to multiple monitoring agents, or bind one or more alarm tables to a monitoring agent. To bind more than one alarm table to a single monitoring agent, you must enable the functionality for binding multiple alarm tables using PFM - Manager, beforehand. For details on how to set this functionality, see the chapter that describes installation and setup in the Job Management Partner 1/Performance Management Planning and Configuration Guide.

The following describes the procedures for changing the association of an alarm table:

Organization of this subsection

(1) When the functionality for binding multiple alarm tables is enabled

(2) When the functionality for binding multiple alarm tables is disabled

(3) Notes on the limit on the number of alarms and alarm tables

(1) When the functionality for binding multiple alarm tables is enabled

If the functionality for binding multiple alarm tables is enabled, you can both bind and unbind alarm tables in a single window.

To change the association of an alarm table when the functionality for binding multiple alarm tables is enabled:

Log on to PFM - Web Console from the browser of the monitoring console.
The main window appears.
You must log on as a user with administrator user permissions.

In the tab frame of the main window, select the Agents tab.
The Agents window appears.

In the Display format pull-down menu in the navigation frame, select Products.
The agent tree organized by products appears.

In the navigation frame, select the monitoring agent to bind to the alarm table.
The selected agent is marked with a checkmark.
If you select Multiselect, you can select multiple agents.

Hint

To bind an agent monitored by PFM - RM, select the appropriate remote or group agent as the monitored agent.

In the method frame, select the Alarm Table Bind Settings method.
In the information frame, the Alarm Table Bind Settings [Select Alarm Tables] window appears.
For binding:
Select one or more alarm tables to bind. After you select alarm tables, the selected alarm tables are marked with a checkmark. You can select no more than 50 alarm tables.
For unbinding:
Clear the selection for the alarm table to unbind it.

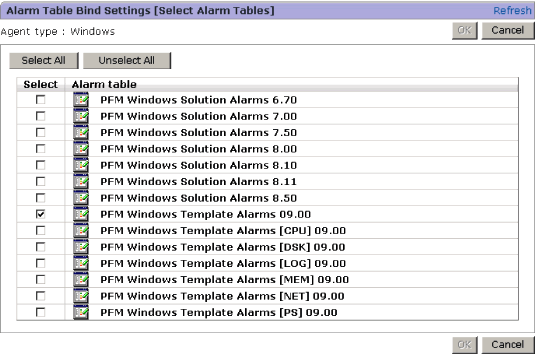

The following figure shows an example of the Alarm Table Bind Settings [Select Alarm Tables] window.

Figure 6-15 Alarm Table Bind Settings [Select Alarm Tables] window

Reference note:

You can only bind or unbind alarms on an alarm table basis. Therefore, you cannot bind or unbind individual alarms separately.

Click the OK button.
The alarm table selected in step 5 is bound to or unbound from the agent selected in step 4.

Reference note:

When an alarm table is bound or unbound, all the alarms bound to the monitoring agent are reset to Normal Status. If an alarm table is bound to a monitoring agent that has one or more alarm tables already bound to it, all the alarms in the alarm tables including the existing alarm tables are reset to Normal. These alarms are then set to their actual state the next time they are evaluated.

(2) When the functionality for binding multiple alarm tables is disabled

(a) Associating an alarm table with a monitoring agent

Note

Each agent can only have one alarm table bound to it. If you bind an alarm table to an agent already bound to another alarm table, the existing alarm table is unbound automatically and the new alarm table is bound.

When the functionality for binding multiple alarm tables is disabled, you can only bind one alarm table to an agent. Alternately, you can use the Quick Guide to set simplified alarms. For details on the Quick Guide, see 6.5 Setting alarms by using the Quick Guide.

To bind an alarm table when the functionality for binding multiple alarm tables is disabled:

From the monitoring console browser, log on to PFM - Web Console.
The main window appears.
You must log on as a user with administrator user permissions.

In the tab frame of the main window, select the Agents tab.
The Agents window is displayed.

In the Display format pull-down menu in the navigation frame, select Products.
The Agents tree organized by products appears.

In the navigation frame, select the monitoring agent to bind to the alarm table
The selected agent is marked with a checkmark.
If you select Multiselect, you can select multiple agents.

Hint

To bind an agent monitored by PFM - RM, select the appropriate remote or group agent as the monitored agent.

In the method frame, select the Bind Alarm Table.
In the information frame, the Bind Alarm Table to Agents (Select Alarm Table) window appears.

Select the alarm table to bind.
The selected alarm table is marked with a checkmark.
You cannot select multiple alarm tables.

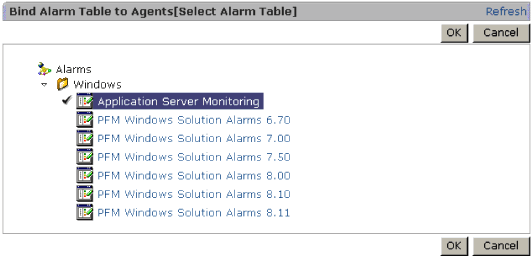

The following figure shows an example of the Bind Alarm Table to Agents (Select Alarm Table) window.

Figure 6-16 Bind Alarm Table to Agents [Select Alarm Table] window

Reference note:

You can bind alarms only on an alarm table basis. You cannot bind individual alarms separately.

Click the OK button.
The alarm table selected in step 6 is bound to the agent selected in step 4.

(b) Unbinding an alarm table bound to a monitoring agent

To unbind an alarm table when the functionality for binding multiple alarm tables is disabled:

Log on to PFM - Web Console from the browser of the monitoring console.
The main window appears.
You must log on as a user with administrator user permissions.

In the tab frame of the main window, select the Agents tab.
The Agents window appears.

In the Display format pull-down menu in the navigation frame, select Products.
The agent tree by products appears.

In the navigation frame, select the monitoring agent to unbind the alarm table from.
The selected agent is marked with a checkmark. If you select Multiselect, you can select multiple agents.

Hint

To unbind an agent monitored by PFM - RM, select the appropriate remote or group agent as the monitored agent.

In the method frame, select the UnBind Alarm Table.
The message box to confirm the unbinding of the alarm table appears.

If you want to unbind, click the OK button in the message box.
The alarm table is unbound from the monitoring agent selected in step 4.

(3) Notes on the limit on the number of alarms and alarm tables

You can create up to 50 alarms in one alarm table. In addition, you can bind up to 50 alarm tables to one agent.

Binding a large number of alarms to PFM - Agent or PFM - RM in the Performance Management system might delay the processing of PFM - Manager, PFM - Agent, or PFM - RM. We recommend that you limit the number of bound alarms to the following:

250 alarms per agent.

10,000 alarms across the entire Performance Management system.
