5.3.8 Associating a report with another report (drilldown report)

If necessary, set a drilldown report that is displayed by drilling down to the report, which is associated with the displayed report.

There are two types of drilldown reports that can be set according to which one best meets your purpose. You can also set both types.

• Setting a report-level drilldown report
  To set this type of drill-down report, go to (1) Defining a report-level drilldown report.

• Setting a field-level drilldown report
  To set this type of drill-down report, go to (2) Defining a field-level drilldown report.
  The following figure shows an example of the New Report > Drilldown window.

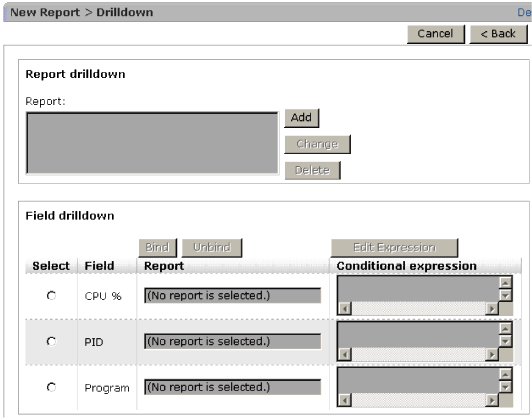

  Figure 5-15 New Report > Drilldown window



Organization of this subsection

(1) Defining a report-level drilldown report

(2) Defining a field-level drilldown report

(1) Defining a report-level drilldown report

To define a report-level drilldown report:

1. Click the Add button in the New Report > Drilldown window.
   The New Report > Drilldown > Select Report window appears.

2. Select a drilldown report to be associated with the report from the Reports tree.
   The selected report is marked with a checkmark. By selecting Bookmarks from the Tree type pull-down menu, you can assign a bookmark or combination bookmark as a drill-down report.
   The following figure shows an example of entering information in the New Report > Drilldown > Select Report window.

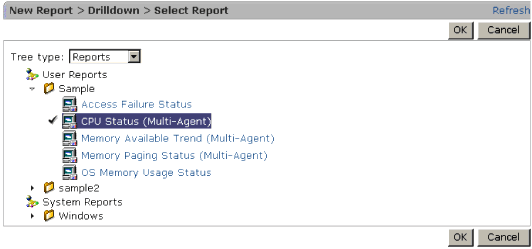

   Figure 5-16 Example of using the New Report > Drilldown > Select Report window



3. Click the OK button.
   The drilldown report selected in step 2 is displayed in Report of the New Report > Drilldown window.

4. Click the Finish button.
   The New Report > Drilldown window closes and the report setting is finished.


(2) Defining a field-level drilldown report

To define a field-level drilldown report:

1. From Field, select the field you want to associate with the drilldown report.
   Click the Select option button of the field to be selected.

2. Click the Bind button.
   The New Report > Drilldown > Select Report window appears.

3. Select a drilldown report to be associated with the field from the Reports tree.
   The selected report is marked with a checkmark.

4. Click the OK button.
   The drilldown report selected in step 3 is displayed in Report of Field drilldown of the New Report > Drilldown window.

5. To set a conditional expression when displaying selected fields, click the Edit Expression button.
   The New Report > Drilldown > Edit Conditional Expression for Drilldown window appears.

6. Set the conditional expressions for the drilldown report.
   For example, when displaying a drilldown report of the processes whose CPU usage ratio is higher than those of the processes displayed in the report window, set up the conditional expression as follows:
   Conditional expression: CPU % > CPU %
   CPU % at the left part indicates the CPU usage ratio displayed in the drilldown report. Specify this in the first Field of the New Report > Drilldown > Edit Conditional Expression for Drilldown window.
   CPU % at the right part indicates the CPU usage ratio, as the source of drilldown report, displayed in the report window. Specify this in the Field of Select value or field.

7. Click the OK button.
   The New Report > Drilldown window appears. The conditional expression set in step 6 is displayed in Conditional expression of Field drilldown.
   The following figure shows an example of entering information in the New Report > Drilldown > Edit Conditional Expression for Drilldown window.

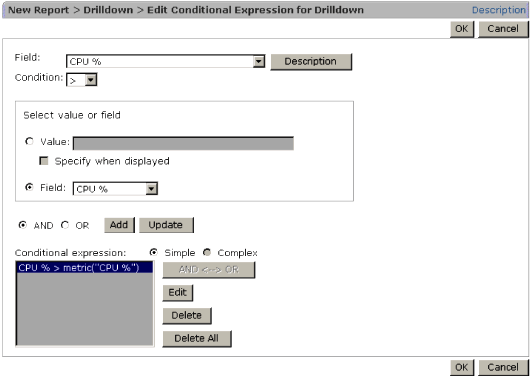

   Figure 5-17 Example of input in the New Report > Drilldown > Edit Conditional Expression for Drilldown window



8. Click the Finish button.
   The New Report > Drilldown window closes, and the report setting is finished.
