3.2.2 Placing agents in a management folder

To place agents in a created folder:

1. From the monitoring console browser, log on to PFM - Web Console.
   The main window appears.

2. In the navigation frame of the main window, choose the Agents tab.
   The Agents window appears.
   The navigation frame displays the Agents tree that has User Agents (logged-on-user-name) as the root.

   • When logging on for the first time:
     Only the Agent tree root User Agents (logged-on-user-name) appears.

   • If the logged-on user has already created components in the Agents tree:
     All folders under the root appear.

3. In the method frame, choose the Edit Agent Tree method.
   The Edit Agent Tree window appears.

   • When logging on for the first time
     Only the root User Agents (logged-on-user-name) appears in the information frame.

   • When the logged-on user has already created components of the Agents tree
     All folders under the root appear.

4. Select a folder in the Agents tree displayed in the information frame where you want to place agents.
   Select a folder where you want to place agents. Select User Agents (logged-on-user-name) to place agents immediately under the root.
   The selected component is marked with a checkmark.
   Select a folder or User Agents (logged-on-user-name) to activate the New Agent button.

5. Click the New Agent button.
   The Edit Agent Tree > New Agent window appears.
   The Agents connected to the PFM - Manager appear in a product-based tree in the information frame.

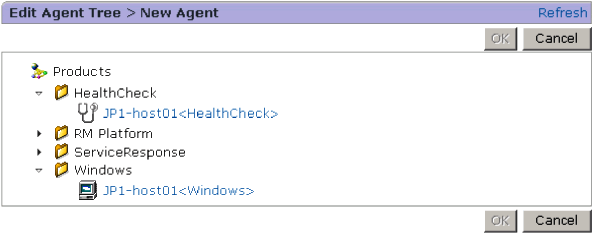

   Figure 3-3 Example of the Edit Agent Tree > New Agent window



   Reference note:

   Agents are listed by their service IDs. The format of the service ID depends on whether the product name display function is enabled. For example, if the host name for a PRM - RM Platform remote agent is remmon, its instance name is inst01, its monitored host name is rma1, and the product name display function is enabled, the service ID is displayed as inst01[rma1@remmon]<RMPlatform>. If the product name display function is disabled, the same service ID is displayed as 7A1inst01[rma1@remmon].

   For details on service IDs, see the description of the service naming rules in the appendixes of the Job Management Partner 1/Performance Management Planning and Configuration Guide. For details on the product name display function, see the chapter that describes the Performance Management functions in the Job Management Partner 1/Performance Management Planning and Configuration Guide

6. In the Agents tree displayed in the information frame, select an agent to be placed in the folder selected in step 4.
   The selected agent is marked with a checkmark.

7. Click the OK button.
   The agent selected in step 6 appears under the folder selected in step 4.
