Job Management Partner 1/Performance Management User's Guide

3.2.1 Creating a new agent management folder

To create a new agent management folder:

From the monitoring console browser, log on to PFM - Web Console.
The main window appears.

In the navigation frame of the main window, choose the Agents tab.
The Agents window appears.
In the navigation frame, the Agents tree with the root User Agents (logged-on-user-name) appears.

When logging on for the first time:
Only the root User Agents (logged-on-user-name) appears.

If the logged-on user has already created components in the Agents tree:
All folders under the root appear.

In the method frame, choose the Edit Agent Tree method.
The Edit Agent Tree window appears.

When logging on for the first time:
Only the root User Agents (logged-on-user-name) appears in the information frame.

If the logged-on user has already created components in the Agents tree:
All folders under the root appear.

In the Agents tree displayed in the information frame, select a higher component of the folder to be created.

When logging on for the first time:
Select User Agents (logged-on-user-name).

When the logged-on user has already created components in the Agents tree, select User Agents (logged-on-user-name) or a higher folder of the folder to be created.
The selected component is marked with a checkmark.
Select User Agents (logged-on-user-name) or a folder to activate the New Folder button.

Click the New Folder button.
The Edit Agent Tree > New Folder window appears.

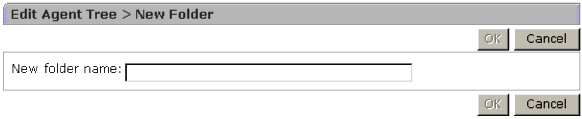

Figure 3-2 Example of the Edit Agent Tree > New Folder window

In New folder name, enter a folder name (1-64 characters).

Click the OK button.
The newly created folder appears under User Agents (logged-on-user-name) or under the folder selected in step 4.

Repeat steps 1 to 7 to create folders as necessary.
