2.3.4 Creating agent levels for monitoring

In Performance Management, agents being monitored can be managed and monitored by level. There are two types of agent levels:

Monitoring by the agent levels grouped together for each product
This monitors by agent level grouped by folders for each PFM - Agent product.

Monitoring by agent level created for each logon user
This monitors by agent level created specifically for each logon user. For example, folders can be created in units of the system configuration or organization, and monitoring agents can be grouped for each.

Agent management and monitoring are performed from the Agents window in PFM - Web Console.

Organization of this subsection

(1) Creating folders

(2) Placing PFM - Agent

(1) Creating folders

The following example shows folders created for each branch office.

To create a folder:

In the navigation frame of the main window, select the Agents tab.
The Agents window is displayed.

In the method frame, select the Edit Agent Tree method.
The Edit Agent Tree window is displayed.
User Agents (name-of-user-to-log-in) is displayed in the information frame.

Select User Agents (name-of-user-to-log-in) and click the New Folder button.
The Edit Agent Tree > New Folder window is displayed.

Enter Headquarters (Data Center) for New folder name.
An example is indicated in the following figure:

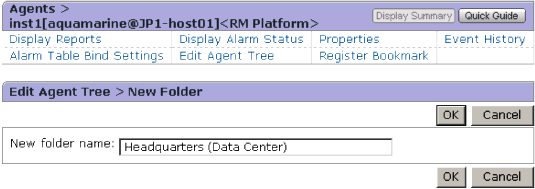

Figure 2-6 Example of the Edit Agent Tree > New Folder window

Click the OK button.
The Headquarters (Data Center) folder is created under User Agents (name-of-user-to-log-in) in the information frame.

Using the same operations as steps 3 to 5, create the following folders:

San Francisco Branch

San Diego Branch

Select the Headquarters (Data Center) folder created in steps 3 to 5 and click the New Folder button.

Enter Internet Marketing System for New folder name and click the OK button.
Similar levels are created as in the following figure.

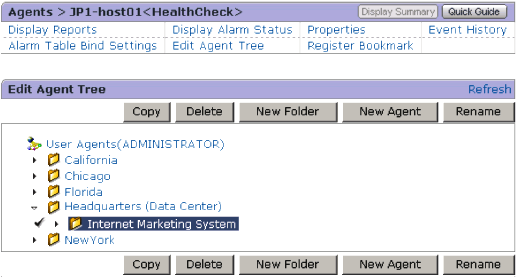

Figure 2-7 Example of creating agent levels

(2) Placing PFM - Agent

After creating folders, place agents (PFM - Agent product) in each folder. The following procedure describes how to place an agent in the Internet Marketing System folder.

To place PFM - Agent:

In the method frame of the Agents window, select the Edit Agent Tree method.
The Edit Agent Tree window is displayed.
User Agents (name-of-user-to-log-in) is displayed in the information frame.

From the agent level, select the Internet Marketing System folder, and click the New Agent button.
The Edit Agent Tree > New Agent window is displayed.

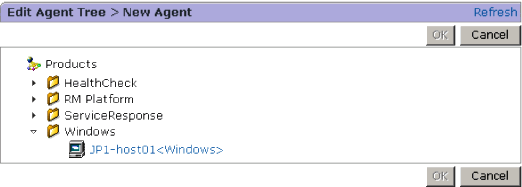

Figure 2-8 Example of the Edit Agent Tree > New Agent window

In the Edit Agent Tree > New Agent window, the PFM - Agents connected to the PFM - Manager is displayed. The name of each PFM - Agent is displayed as a service ID. For example, if the product name display function is active and WebAP is the host name for the PFM - Agent for Platform (Windows) agent, WebAP<Windows> is displayed.
For details on service IDs, see B.1 Naming rules for services. For details on the product name display function, see 4.1.2 Displaying and specifying services.

From the agent level, select the PFM - Agent to add to the folder.
Multiple PFM - Agents can also be selected. A selected PFM - Agent is marked with a check mark.

Click the OK button.
The PFM - Agent is added under the Internet Marketing System folder as shown in the following figure:

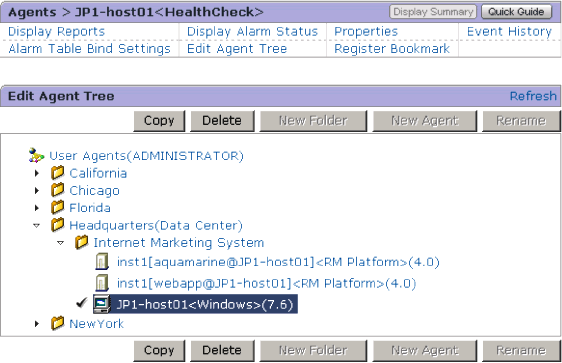

Figure 2-9 Example of displaying agent levels

Reference note:

The same PFM - Agent can be placed in multiple folders. It can also be placed directly under User Agents (name-of-user-to-log-in) without being placed in a folder.
