4.1.2 Displaying and specifying services

This subsection describes the formats for service IDs and service keys used to display and specify services.

A Performance Management service has the following two identifiers:

In Performance Management 09-00 and later, enabling the product name display function allows you to change the formats for the service IDs and the service keys you can display and specify.

For details on the Performance Management products required for using the product name display function, see (2) Coverage of the product name display function.

Organization of this subsection
(1) Overview of the product name display function
(2) Coverage of the product name display function
(3) Configuring the product name display function

(1) Overview of the product name display function

You can use the product name display function to change the service identifier format for Performance Management. If this function is enabled, each identifier displays the name of the program to be monitored. This makes it easier to identify the service. After the format is changed, it is called the product name.

For details on the format of the identifier in each case when the product name display function is enabled and disabled, see B.1 Naming rules for services.

The following figures provide examples of the monitoring console displays and the outputs generated when you execute the commands.

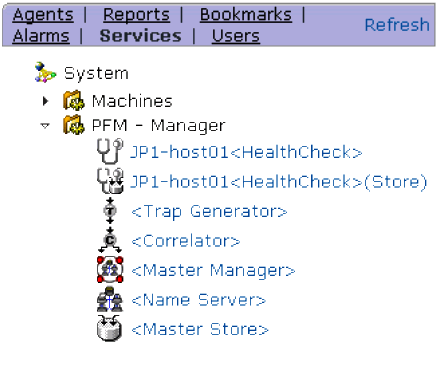

Figure 4-3 Example of the Services tree displayed on the monitoring console (if the product name display function is enabled)

[Figure]

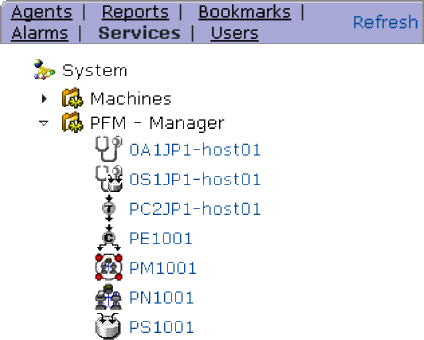

Figure 4-4 Example of the Services tree displayed on the monitoring console (if the product name display function is disabled)

[Figure]

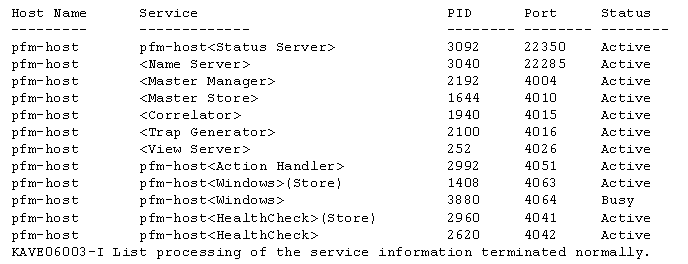

Figure 4-5 Example of the output generated when the jpctool service list command is executed (if the product name display function is enabled)

[Figure]

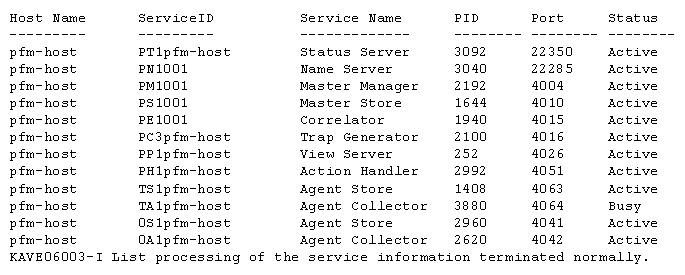

Figure 4-6 Example of the output generated when the jpctool service list command is executed (if the product name display function is disabled)

[Figure]

Reference note
To display the output generated when the jpctool service list command is executed as a product name, enable the product name display function and then specify the -v option.

(2) Coverage of the product name display function

The following table shows the coverage of the product name display function. For all other items, even if this function is enabled, you cannot use the product name to display the identifier. This table also describes all the Performance Management products and hosts for which you must configure this function to use each item. The product name display function can be used for all versions of PFM - Agent and PFM - RM.

Table 4-6 Items for which the product name is available

Items for which the product name is available Hosts for which the product name display function is set Required Performance Management products
Service ID displayed on the monitoring console PFM - Manager host
  • PFM - Manager 09-00 or later
  • PFM - Web Console 09-00 or later
Report on the monitoring console
Event monitor
Service ID displayed on the event history window
Service ID displayed when the jpctool service list command is executed# The host that executes the command

When the host that executes the command is a PFM - Manager host:
  • PFM - Manager 09-00 or later

When the host that executes the command is a PFM - Agent or PFM - RM host:
  • PFM - Base 09-00 or later
Service key specified when a command is executed --
Service key displayed in a message The host that outputs the message

When the host that outputs the message is a PFM - Manager host:
  • PFM - Manager 09-00 or later

When the host that outputs the message is a PFM - Agent or PFM - RM host:
  • PFM - Base 09-00 or later

Legend:
--: Available regardless of whether the product name display function is enabled or disabled.

#
To display this item by using the product name, specify the -v option. For details on the jpctool service list command, see the chapters that describe commands in the manual Job Management Partner 1/Performance Management Reference.

(3) Configuring the product name display function

For details on how to set up the product name display function, see 5.4.9 Configuring the product name display function (in Windows) or 6.4.8 Configuring the product name display function (in UNIX).

The default setting of the product name display function varies depending on how to install Performance Management. The following table lists and describes the installation methods and the default setting.

Table 4-7 Installation methods of Performance Management and the default settings of the product name display function

Installation method Performance Management version before upgrade Configuring the product name display function
New installation -- Enabled
Upgrade installation 09-00 or later Settings prior to upgrading are used.
08-11 or earlier Disabled

Legend:
--: Not applicable
