If you allocate multiple J2EE servers, you can configure multi-tenancy with the business processes (applications) partitioned for every tenant by effectively utilizing the host resources. You can set up Web front system that supports multi-tenancy by allocating multiple J2EE servers and adding a group of logical servers, including J2EE server, based on the single Web front system.

Example of system configuration

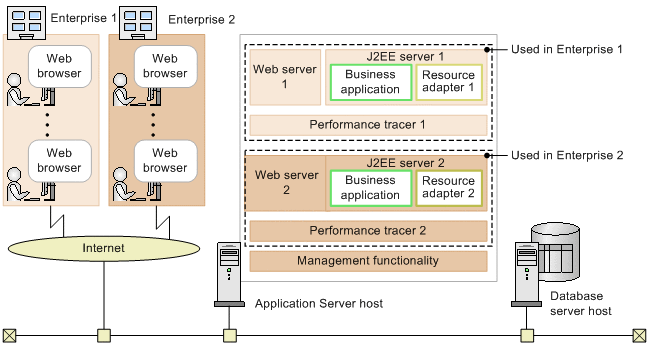

The following figure shows an example of configuring a Web front system that supports multi-tenancy by allocating multiple J2EE servers:

Figure 1-6 Example of configuring Web front system that supports multi-tenancy by allocating multiple J2EE servers

Tasks and their necessity

The following table describes the tasks to be executed for configuring a Web front system that supports multi-tenancy by allocating multiple J2EE servers and necessity of these tasks.

Table 1-3 Tasks to be executed for configuring a Web front system that supports multi-tenancy by allocating multiple J2EE servers and necessity of these tasks

Tasks to be executed for configuring a Web front system that supports multi-tenancy by allocating multiple J2EE servers	Necessity of executing the task	Conditions for executing the task	References
Preparing a database	Y#	Connecting to the database	2.1.1
Installing Application Server	Y	Mandatory (when the OS is Windows)	2.2.2
		Mandatory (when the OS is AIX and HP-UX)	2.2.3
		Mandatory (when the OS is Linux)	2.2.4
Installing the products used for connecting to the database	Y#	For connecting to the database	2.2.5
Setting up the system environment	Y	Mandatory	2.2.6
Timeout settings	A	When changing to the system environment definition that fulfills the system requirements	2.2.9
Setting and starting business applications	Y	Mandatory	2.2.10
Allocating multiple J2EE servers	Y	Mandatory	2.4.1

Legend:

Y: Mandatory tasks.

A: Tasks to be executed with the execution conditions are fulfilled.

#: In the Example of system setup described in this manual, connection with the database is a prerequisite. Therefore, this task is mandatory.
