12.3.7 Configuration for operation in a cluster system

JP1/IM supports cluster systems. When used in a cluster system, JP1/IM - Manager is failed over to the secondary node when a problem occurs on the primary node, and system monitoring continues without interruption.

An example of a system configuration for using JP1/IM - Manager in a cluster system is shown below.

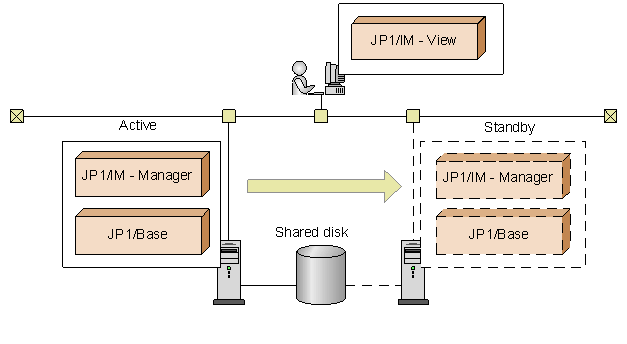

Figure 12-9 Example of configuration for operation in a cluster system (active-standby configuration)

In this configuration, there is a primary server and a secondary server.

JP1/IM - Manager executes on the primary server. The secondary server stands by in case a failure occurs on the primary server. In normal circumstances, JP1/IM - Manager on this server is in stopped state.

For details, see 6. Operation and Environment Configuration in a Cluster System in the Job Management Partner 1/Integrated Management - Manager Configuration Guide.

Organization of this subsection

(1) Notes

(1) Notes

When using JP1/IM in a cluster system, do not set up JP1/IM - Manager to restart after abnormal termination. If you need to restart JP1/IM - Manager, do so under the control of the cluster software.

When a process management process is activated on a logical host in a cluster configuration, if the logical host's conf folder does not contain an extended startup process definition file, the extended startup process definition file on the physical host is copied.
