12.3.8 Configuration for operation on a logical host in a non-cluster environment

JP1/IM - Manager can be run on a logical host in a non-cluster environment. By using a logical host that is not subject to failover, you can run multiple instances of JP1/IM - Manager, each dedicated to a particular application.

You can monitor more than one system from a single machine by running an instance of JP1/IM - Manager on a logical host corresponding to each system. The following figure shows an example of using JP1/IM - Manager to perform integrated monitoring of two systems from a single machine.

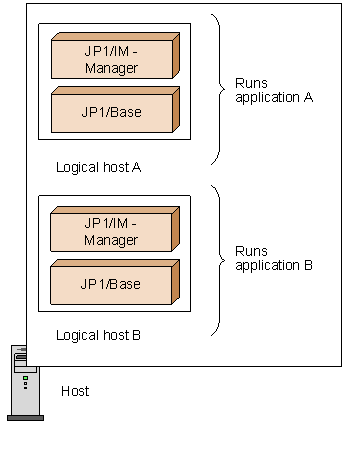

Figure 12-10 Performing integrated monitoring of two systems from one machine

[Figure]

For details, see 6.5 Logical host operation and environment configuration in a non-cluster system in the Job Management Partner 1/Integrated Management - Manager Configuration Guide.
