12.3.6 Configuration with JP1/IM - Rule Operation

By linking JP1/IM - Manager with JP1/IM - Rule Operation, you can automatically notify JP1/IM - Rule Operation when a rule startup event (JP1 event) is issued in the system.

An example of a system configuration for this purpose is shown below.

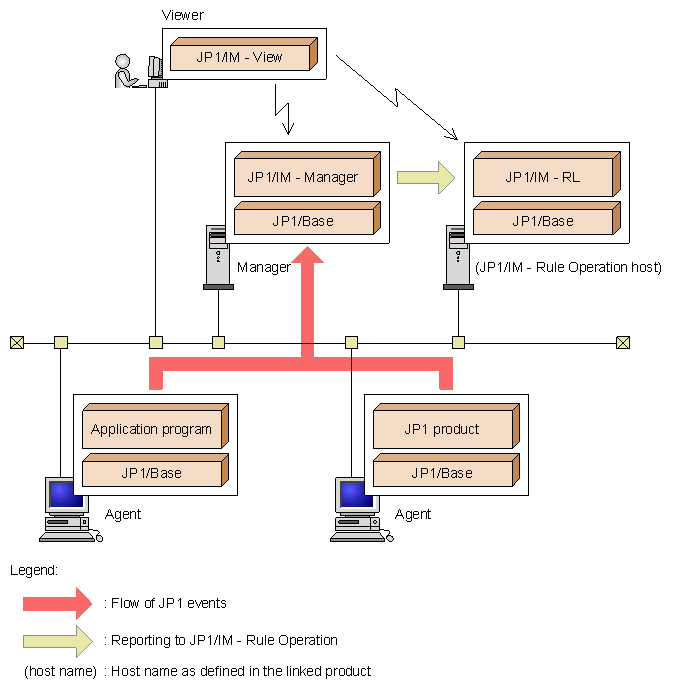

Figure 12-8 Example of configuration with JP1/IM - Rule Operation

[Figure]

The following products are required on each host:

Viewer
  • JP1/IM - View

Manager
  • JP1/IM - Manager
    The JP1/IM - Rule Operation linkage function must be enabled.
  • JP1/Base

(JP1/IM - RL host)
  • JP1/IM - Rule Operation
  • JP1/Base

Agents
  • Application program, JP1-series products, and so on
  • JP1/Base

In this example, JP1 events related to the status of application programs and JP1 products executing on the agents are forwarded to the manager and are monitored from JP1/IM - View.

When a rule startup request event is received among the forwarded JP1 events, JP1/IM - Manager on the manager sends the request to JP1/IM - Rule Operation automatically.

JP1/IM - Rule Operation invokes the rule specified in the rule startup request. The user can check whether it was executed by accessing JP1/IM - Rule Operation from JP1/IM - View. The JP1/IM - Rule Operation host and manager can be the same server.

Note
As with automated actions, JP1/IM - Manager performs the processing to notify JP1/IM - Rule Operation according to the system hierarchy.
For this reason, if you want to run JP1/IM - Manager and JP1/IM - Rule Operation on different hosts, you must configure the JP1/IM - Rule Operation host at a level below the JP1/IM - Manager host.
