Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide

6.2.6 Applying the system hierarchy

Using IM Configuration Management, you can apply edited configuration definition information to all the hosts in the system hierarchy.

To apply configuration definition information, use the Edit IM Configuration window.

The figure below shows the flow of processing when applying configuration definition information with IM Configuration Management.

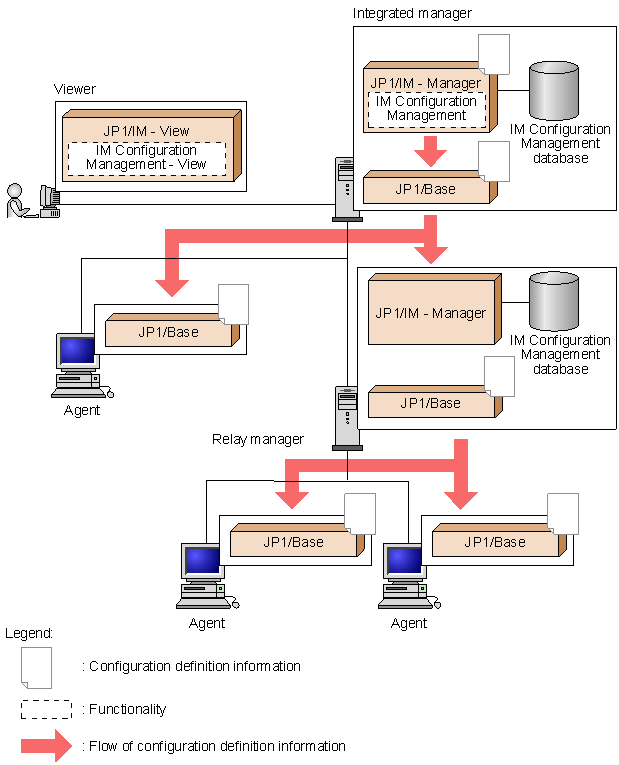

Figure 6-18 Applying configuration definition information with IM Configuration Management

When you apply configuration definition information, the jbsrt_distrib command is executed on the manager running IM Configuration Management. This command first deletes the information on all the hosts in the system, and then distributes the edited information to the hosts.

The applied information replaces the existing information in the configuration definition file (jbs_route.conf) on the host running IM Configuration Management. If you want to save the file contents before they are replaced, you must take a backup by saving the file under another name or by other means.

If processing fails for any host, its host name is displayed in a dialog box.

The result of applying a system hierarchy are shown in a dialog box. Also, you can check the new system hierarchy on the IM Configuration page of the IM Configuration Management window. If processing failed, the affected host is represented by an error-status icon in the tree display area of the IM Configuration page. To view further details, click the Basic Information button in the node display area of the IM Configuration page.
