Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide
Configuration definition information must be synchronized between the integrated manager and base managers if information was defined separately on each manager system in IM Configuration Management. Perform the synchronization from the integrated manager.
To synchronize information among the systems, use the Host List page or IM Configuration page of the IM Configuration Management window.

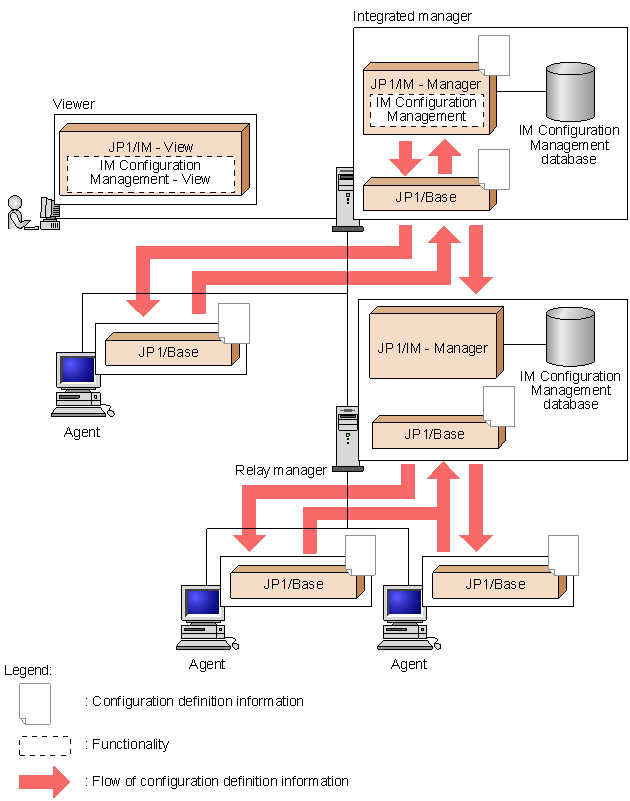

Figure 6-19 Synchronizing configuration definition information with IM Configuration Management
When you synchronize configuration definition information, the jbsrt_sync command is executed on the integrated manager. This command collects and synchronizes the information on the integrated manager, and then updates the configuration definition information on all the hosts in the system hierarchy.
If no base managers are defined under the integrated manager, an error message is displayed and the system hierarchy is not synchronized among the hosts.
