Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide
Using IM Configuration Management, you can create and edit configuration definition information by adding, moving, or deleting hosts.
Edit the system hierarchy in the Edit IM Configuration window of IM Configuration Management - View.
The functions for editing the system hierarchy using IM Configuration Management are described next.
- Organization of this subsection
- (1) Obtaining update rights
- (2) Adding hosts
- (3) Moving hosts
- (4) Deleting hosts
- (5) Saving edited information
- (6) Loading the system hierarchy
(1) Obtaining update rights
To edit the system hierarchy, you must have update rights to the configuration definition information. This prevents anyone else from editing the information, using IM Configuration Management - View on another host, while you are doing so.
To obtain update rights to the configuration definition information, in the Edit IM Configuration window select the Acquire update right check box.
If you attempt to obtain update rights while IM Configuration Management - View on another host has exclusive rights to the configuration definition information and profiles, an error message appears and the attempt fails. In this case, you must find out which user has exclusive rights in the Login User List window and revoke those rights.
(2) Adding hosts
You can add hosts to the system hierarchy by performing either of the following operations in the Edit IM Configuration window:
- Select a host in the Host List, and then move it to the tree display area by drag-and-drop operation.
- Select a host in the tree display area, and then choose Edit and Add Host.
When you define a 3-tier configuration in the tree display area of the Edit IM Configuration window and apply the configuration to the system hierarchy, the managers defined in the middle tier will be displayed as relay managers in the tree display area of the IM Configuration page of the IM Configuration Management window.

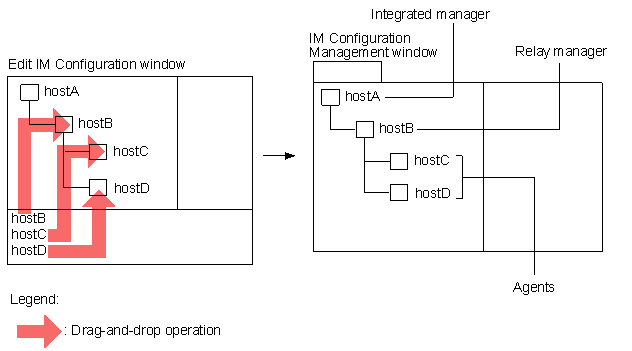

Figure 6-16 Adding hosts to the system hierarchy with IM Configuration Management
(3) Moving hosts
You can move hosts to another level in the system hierarchy by performing either of the following operations in the Edit IM Configuration window:
- Select a host in the tree display area, and then move it to another level by drag-and-drop operation.
- Select a host in the tree display area and choose Edit and Cut. Then select a higher-level host to place the selected host under, and choose Edit and Paste.
When you move a relay manager, the agents in its domain are also moved.

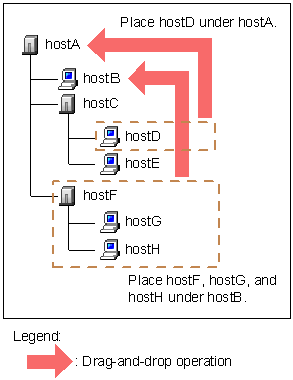

Figure 6-17 Moving a host in the system hierarchy with IM Configuration Management
The following table describes the types of higher-level hosts you can specify for each type of target host.
Table 6-10 Types of higher-level hosts that can be specified when moving a target host
Target host Specifiable higher-level host Moved hosts Integrated manager -- -- Base manager
- Integrated manager
- Relay manager
The selected base manager Relay manager
- Integrated manager
- Relay manager
The selected relay manager and the agents in its domain Agent
- Integrated manager
- Relay manager
The selected agent
- Legend:
- --: Cannot be moved.
(4) Deleting hosts
You can delete hosts from the system hierarchy by performing either of the following operations in the Edit IM Configuration window:
- Select a host in the tree display area, and then move it the Host List by drag-and-drop operation.
- Select a host in the tree display area, and then choose Edit and Delete Host.
When you delete a base manager or relay manager, the agents in its domain are also deleted from the system hierarchy. An integrated manager cannot be deleted.
If you want to delete the entire system hierarchy, choose File and then New.
(5) Saving edited information
You can save edited configuration definition information in a configuration definition file (jbs_route.conf) on the host where IM Configuration Management - View is active. To do so, choose File and then Save IM Configuration in the Edit IM Configuration window.
Use the Save command to temporarily save a system hierarchy you are creating, or to manage records of a system configuration.
(6) Loading the system hierarchy
You can load the following configuration definition information in the Edit IM Configuration window:
- Information in the IM Configuration Management database
In the Edit IM Configuration window, choose File and then Acquire IM Configuration from Server to load the configuration definition information held in the IM Configuration Management database.
- Information on the IM Configuration Management - View host
In the Edit IM Configuration window, choose File and then Open IM Configuration to load configuration definition information as a configuration definition file (jbs_route.conf) on the host where IM Configuration Management - View is active.
