17.2 Example of system configuration using the cold standby configuration

The following figure shows an example of a system configuration using the cold standby configuration.

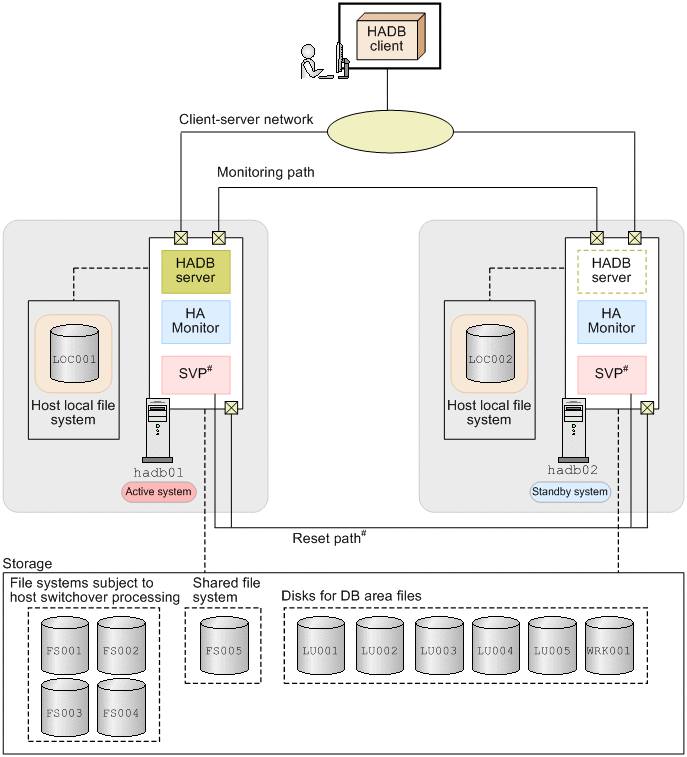

Figure 17‒1: Example of a system configuration using the cold standby configuration

#

When using the SCSI reservation for shared disk method, neither an SVP nor a reset path are required.

Important

You can select either of the following as the shared disk data protection method that uses HA Monitor. We recommend you use host reset.

• Host reset

• SCSI reservation for shared disk

Organization of this section

• 17.2.1 Prerequisite software program

• 17.2.2 Server configuration

• 17.2.3 Network configuration

• 17.2.4 Storage configuration
