16.2 System configuration example that uses the multi-node function

The following figure shows an example of a system configuration using the multi-node function.

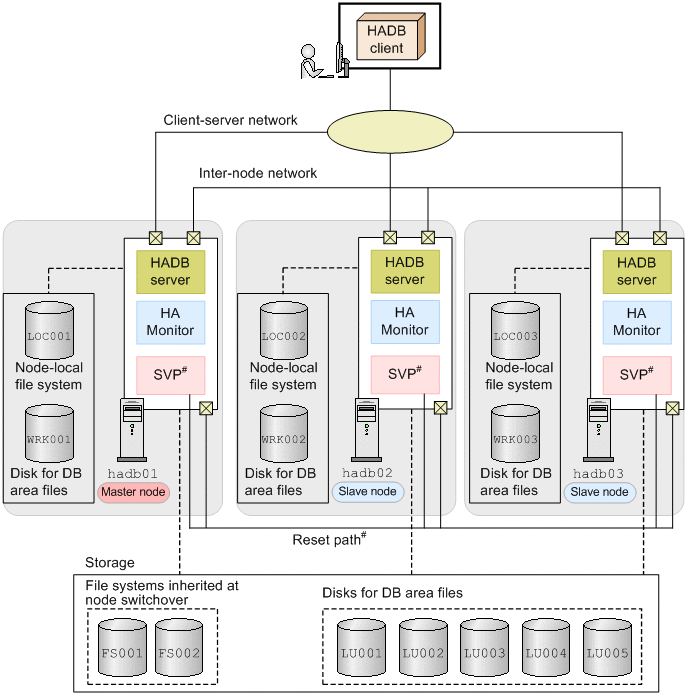

Figure 16‒1: Example of a system configuration using the multi-node function

#: When using the SCSI reservation for shared disk method, neither an SVP nor a reset path are required.

Important

You can select either of the following as the shared disk data protection method that uses HA Monitor. We recommend you use host reset.
