11.14.1 Flow of using the function for centrally managing client definitions

This subsection describes the flow of using the function for centrally managing client definitions.

Organization of this subsection

(1) Flow of newly using the function for centrally managing client definitions

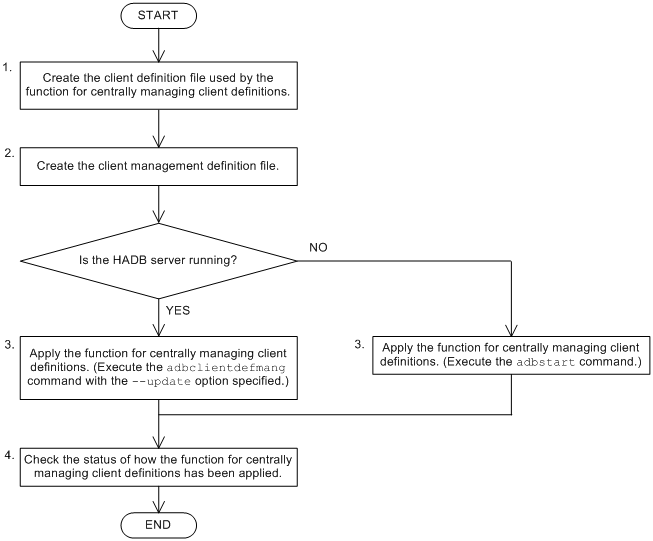

The following figure shows the flow of newly using the function for centrally managing client definitions.

Figure 11‒43: Flow of newly using the function for centrally managing client definitions

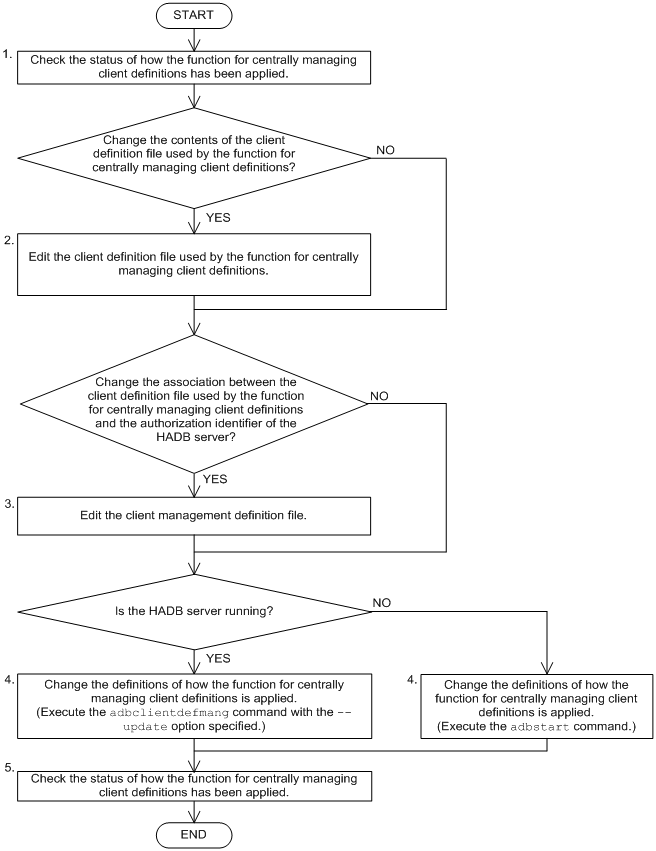

The following figure shows the flow of changing the definitions of how the function for centrally managing client definitions is applied.

Figure 11‒44: Flow of changing the definitions of how the function for centrally managing client definitions is applied
