4.1 System design flow

This section provides figures that illustrate the following aspects of system design:

• Database design

• Resource design

• Server definition design

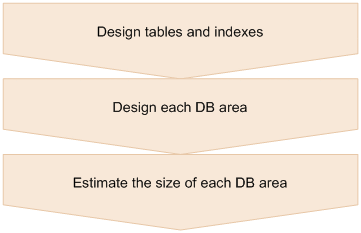

Figure 4‒1: System design flow (database design)

For details about the database design to be performed in the system design stage, see 5. Designing a Database.

Note

Before designing a database, you can estimate its size and memory requirements based on the amount of data to be stored on the HADB server (input data). For details, see the following topics:

• 4.2 Estimating resource requirements

• 4.3 Estimating memory requirements

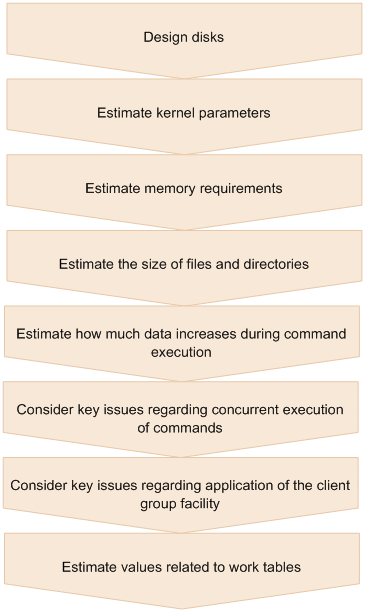

Figure 4‒2: System design flow (resource design)

For details about the resource design to be performed in the system design stage, see 6. Preparing Resources.

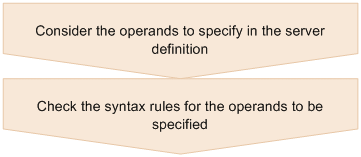

Figure 4‒3: System design flow (server definition design)

For details about the server definition design to be performed in the system design stage, see 7. Designing the Server Definition.
