2.13.3 Application example of the processing by centralized management of client definitions

The following figure shows an application example of the processing by centralized management of client definitions.

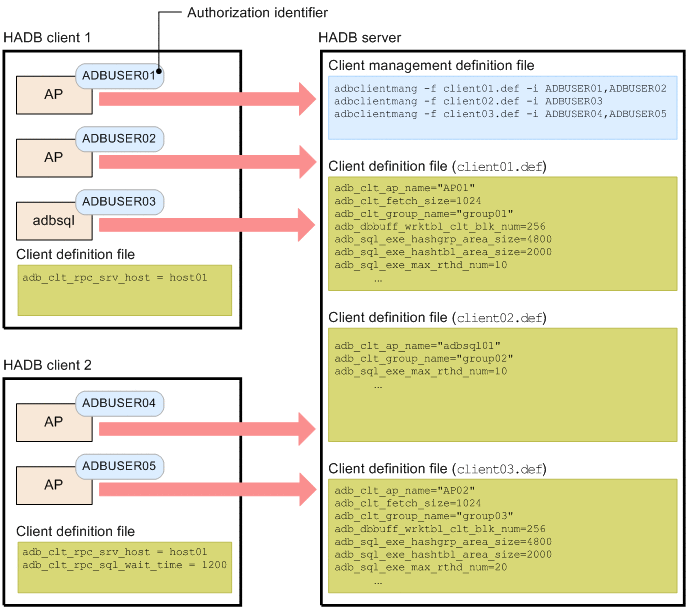

Figure 2‒40: Application example of the processing by centralized management of client definitions

Explanation

For an application program or the adbsql command that connects to the HADB server, the client definition to be applied is determined by the specified authorization identifier. In the preceding example, if the authorization identifier is ADBUSER01, the client definition in the client01.def file is applied.

▪ Notes

• If an application program or the adbsql command whose authorization identifier is not specified in the client management definition file (for example, in the preceding figure, ADBUSER06) attempts to connect to the HADB server, the HADB client's own definition is applied.

• Centralized management of client definitions works only when either of the following items is executed (the function does not work when a command other than adbsql is executed):

  • Application program

  • adbsql command
