2.12.3 Setting the numbers of connections and processing real threads for each group

(1) Setting the number of connections for each group

The client-group facility supports the following connection limitations:

• Maximum number of concurrent connections

  You can set a maximum number of concurrent connections that are to be made available to a target group. The HADB clients and commands belonging to the group can establish concurrent connections only within the set maximum number of concurrent connections.

• Guaranteed minimum number of concurrent connections

  You can set a minimum number of connections that will always be available to a target group. This minimum number of concurrent connections is guaranteed to this group at any time. This number of connections is not affected by the connections used by HADB clients and commands that belong to other groups.

The following figure provides an overview of the maximum number of concurrent connections and the guaranteed minimum number of concurrent connections supported by the client-group facility.

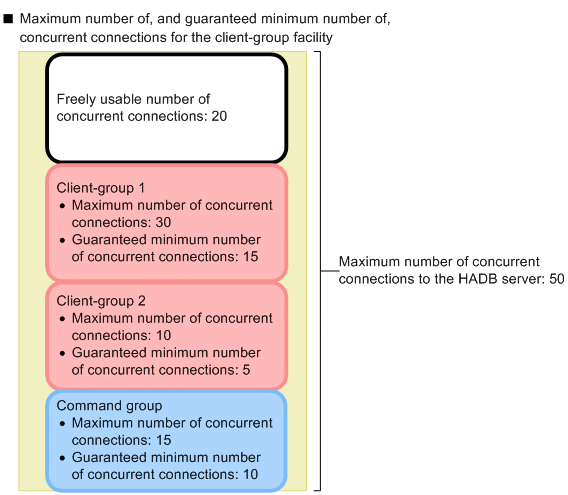

Figure 2‒37: Overview of the maximum number of concurrent connections and the guaranteed minimum number of concurrent connections supported by the client-group facility

Explanation

The target group can always use up to the set guaranteed minimum number of concurrent connections. For example, 15 concurrent connections (guaranteed minimum number of concurrent connections) will always be available to client group 1.

The maximum number of concurrent connections to the HADB server (50) minus the sum of the guaranteed minimum numbers of concurrent connections set for all groups (30) is the freely usable number of connections (20).

All HADB clients and commands can establish connections within the scope of the freely usable number of connections. Whether they belong to a group is irrelevant.

If an HADB client or command belongs to a group and there are freely usable connections (20), the maximum number of concurrent connections set for that group is available to that HADB client or command. For example, 15 connections are available for client group 1 in addition to the guaranteed minimum number of concurrent connections (15), because this group's maximum number of concurrent connections is 30.

If the freely usable number of connections (20) are all unused, a maximum of 20 connections are available to the HADB clients and commands that belong to no group.

Note

You can enable a setting at the group level that outputs a warning message KFAA40020-W when the number of connections to the HADB server approaches the maximum number of concurrent connections.

To Page Top

(2) Setting the number of processing real threads for each group

The client-group facility supports the following types of processing real thread counts.

• Maximum number of processing real threads that can be used

  You can set a maximum number of processing real threads that can be used by a target group. The HADB clients and commands belonging to the target group will perform processing within the set maximum number of processing real threads.

• Guaranteed minimum number of processing real threads that can be used

  You can set a guaranteed minimum number of processing real threads that can be used by a target group. This guaranteed minimum number of processing real threads will always be available to the target group. This number is not affected by the connections used by HADB clients and commands that do not belong to the local group.

The following figure provides an overview of the maximum number of processing real threads and the guaranteed minimum number of processing real threads supported by the client-group facility.

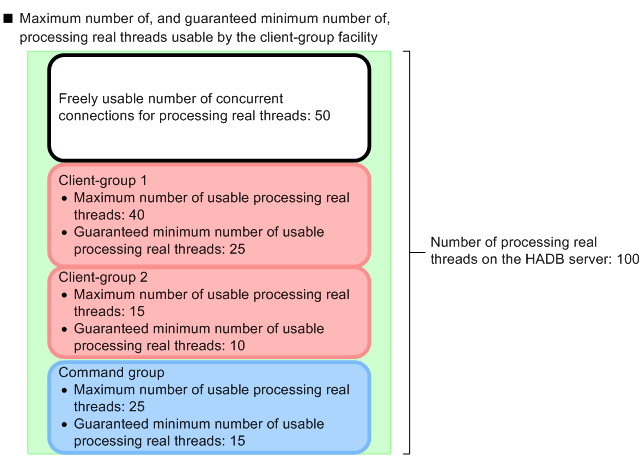

Figure 2‒38: Overview of the maximum number of processing real threads and the guaranteed minimum number of processing real threads supported by the client-group facility

Explanation

The guaranteed minimum number of processing real threads will always be available to the target group. For example, up to the guaranteed minimum number of processing real threads (25) are always available to client group 1.

The number of processing real threads on the HADB server (100) minus the sum of the guaranteed minimum numbers of processing real threads set for all groups (50) is the freely usable number of processing real threads (50).

All HADB clients and commands can use processing real threads within the freely usable number of processing real threads, regardless of whether HADB clients and commands belong to a group.

If an HADB client or command belongs to a group and there are freely usable processing real threads (50), the maximum number of processing real threads set for that group are available to that HADB client or command. For example, for client group 1, 15 processing real threads are available in addition to the guaranteed minimum number of processing real threads (25) because this group's maximum number of processing real threads is 40.

If the freely usable number of processing real threads (50) are all unused, a maximum of 50 processing real threads are available to the HADB clients and commands that belong to no group.
