2.4.1 DB areas

HADB stores tables and indexes in a logical area called a DB area.

Each DB area can store multiple tables or indexes. The following figure shows cases in which tables and indexes can be stored in a DB area.

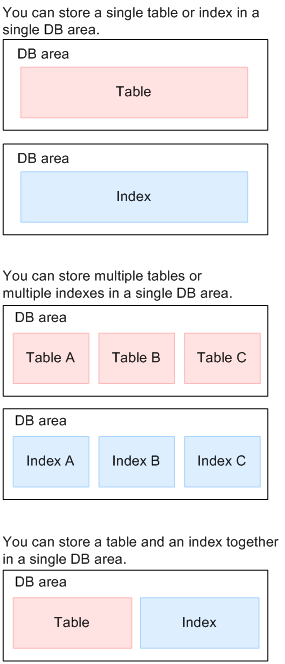

Figure 2‒12: Cases in which tables and indexes can be stored in a DB area

Note that a single table or index cannot span multiple DB areas. The following figure shows cases in which a table or index cannot be stored in DB areas.

Figure 2‒13: Cases in which a table or index cannot be stored in DB areas
