定義例

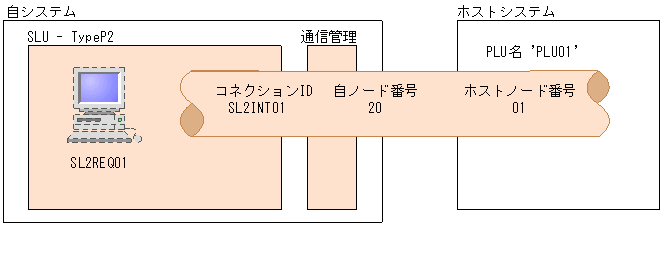

SLU - TypeP2のシステム構成例を次の図に，その構成に沿った定義例をそのあとに示します。
SLU - TypeP2では，この定義のコーディング例を次のファイルで提供しています。
-
/BeTRAN/examples/mcf/SLUP2/conf/com_d
|
|
![[図データ]](GRAPHICS/ZU050200.GIF)
#############################################################
# MCF COMMUNICATION CONFIGURATION DEFINITION #
# for SLU - TypeP2 protocol #
#############################################################
#--------------Connection definition (mcftalccn)------------#
mcftalccn -c SL2INT01 \
-p slup2 \
-n "ownnode = 20" \
-q "hostnode = x'01'" \
-o e'LOGONMOD' \
-j "pluname = e'PLU01'" \
-g "sndbuf = 1 \
rcvbuf = 2" \
-e "msgbuf = 3 \
count = 10" \
-m "mode = xnfas" \
-i auto \
-b "bretry = yes \
bretrycnt = 10 \
bretryint = 2" \
-k ws \
-d rqe \
-w "firststsn = positive" \
-t "termself = forced" \
-r "sndrusiz = 1024 \
rcvrusiz = 1024"
#-----------------------------------------------------------#
########LE definition (SL2REQ01)
mcftalcle -l SL2REQ01 \
-t request \
-m "mmsgcnt = 0 \
dmsgcnt = 0" \
-k "quekind = disk \
quegrpid = quegrp01" \
-o "aj = yes" \
-v slmhprv1
#-----------------------------------------------------------#
###Connection definition end (SL2INT01)
mcftalced
