trnlsrm (Display information about resource manager)

Format

trnlsrm [-o file-name [, file name]...] [-s]

Function

The trnlsrm command displays the information about resource managers cataloged in OpenTP1, UAPs or transaction control objects.

Options

-o file-name~<full path name>

Outputs the information about the resource manager cataloged in the specified file to the standard output. Only files storing UAP execution-form programs or transaction control object files can be specified. More than one file name can be specified, with a comma (,) placed between names.

-s

Outputs the information about resource managers cataloged in OpenTP1 to the standard output.

When none of the options is specified, the -s option is assumed.

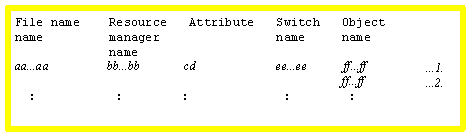

Output format

[Figure]

The information on lines 1. and 2. is displayed as many times as the number of the resource managers cataloged. For display of information about the same file, its name appears on the leading line alone.

2. When there is more than one RM-related object, information is displayed as many times as the number of the objects.

aa...aa
system or the specified file name (excluding the path name)

bb...bb
Resource manager name (1-31 characters)

c
The first attribute of a resource manager
B: OpenTP1 resource manager
N: Non-OpenTP1 resource manager

d
The second attribute of a resource manager
O: One-phase commit control enabled
N: One-phase commit control disabled

ee...ee
RM switch name (1-32 characters)
******** is displayed for OpenTP1 resource managers.

ff...ff
RM-related object name
******** is displayed for OpenTP1 resource managers.
