OpenTP1 Version 7 Operation
When a reserve file group is opened by the jnlopnfg command, it becomes a standby file group.
When an overwritable file group is closed by the jnlclsfg command, it becomes a reserve file group. A non-overwritable file group cannot be closed, because it contains a journal required for recovery.
If there is only one overwritable file group, that file group cannot be closed.

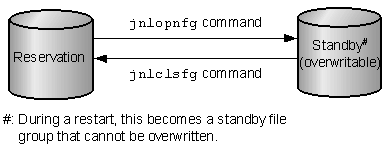

The following figure shows the status changes for a system journal file caused by the open and close commands.
Figure 4-7 Status changes caused by open and close commands (system journal file)
