OpenTP1 Version 7 Operation
The procedure for setting up the OpenTP1 environment is explained below.
The following shows the OpenTP1 environment setup procedure.

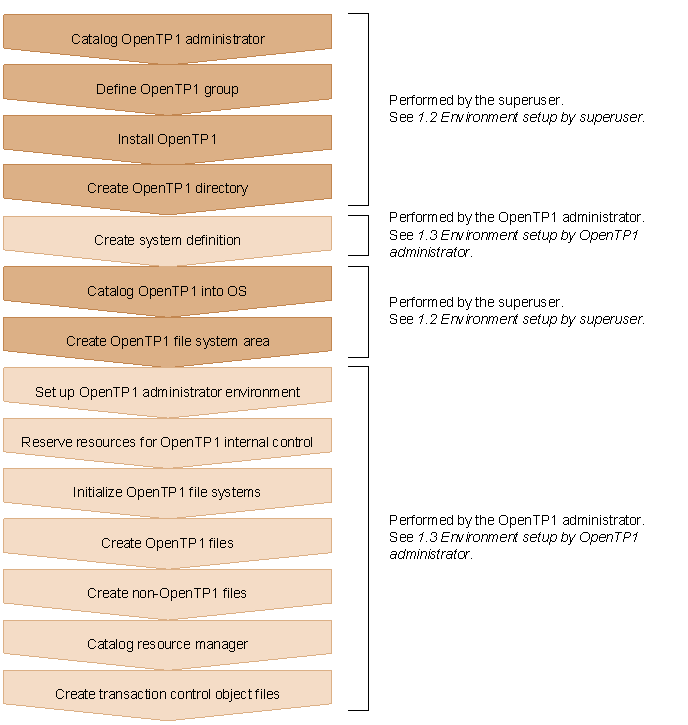

Figure 1-1 OpenTP1 environment setup procedure
When you link JP1/Base, JP1/AJS2, and JP1/AJS2 - Scenario Operation, and use the scenario templates of the Scale Out scenario, you can partially automate the OpenTP1 environment setup procedure. For details about environment setup using scenario templates, see 3.15.3(3) Using Scale Out and DPM for the OpenTP1 environment setup procedure.
The following shows the environment setup procedure for TP1/Message Control.

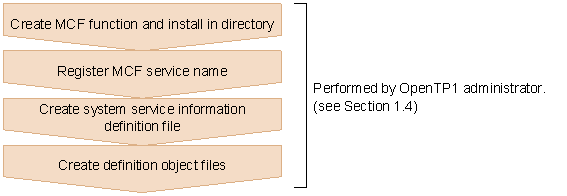

Figure 1-2 Environment setup procedure for TP1/Message Control
The following shows the environment setup procedure for TP1/Message Queue.

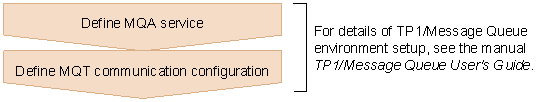

Figure 1-3 Environment setup procedure for TP1/Message Queue
