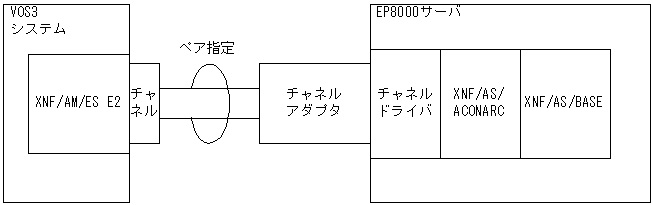

1台のEP8000と1台のVOS3ホストをペア指定した二つのチャネルラインで接続する場合の構成例を図4-21に示します。

図4-21　1台のEP8000と1台のVOS3ホストをペア指定した二つのチャネルラインで接続する場合の構成例

定義例を次に示します。

(a)　EP8000シリーズのXNF/ASの定義例


configuration
  version 1
  max_CHANNEL_link 1
  max_CHANNEL_VC 1
  max_CHANNEL_host 1
  max_TSAP 100
  max_OSI_association 1024
  max_CHANNEL_TC 1024
  ;
OSI_buffer
  name OSIchbuf
  number 1024
  size 8192
  ;
CHANNEL_definition
  name channel
  ;
CHANNEL_line
  name chline01
  device_name esca0
  send_subchannel_name cliob30
  receive_subchannel_name cliob31
  send_buffer_number 256
  receive_buffer_number 512
  ;
  CHANNEL_link
    name chlink01
    VASS 101
    ;
CHANNEL_line
  name chline02
  device_name esca0
  send_subchannel_name cliob40
  receive_subchannel_name cliob41
  pair_of chline01
  ;
CHANNEL_VC
  name chvc01
  VASS 900
  DTE_address 1234567
  network_id 8001
  initial_status active
  buffer_pool OSIchbuf
  ;

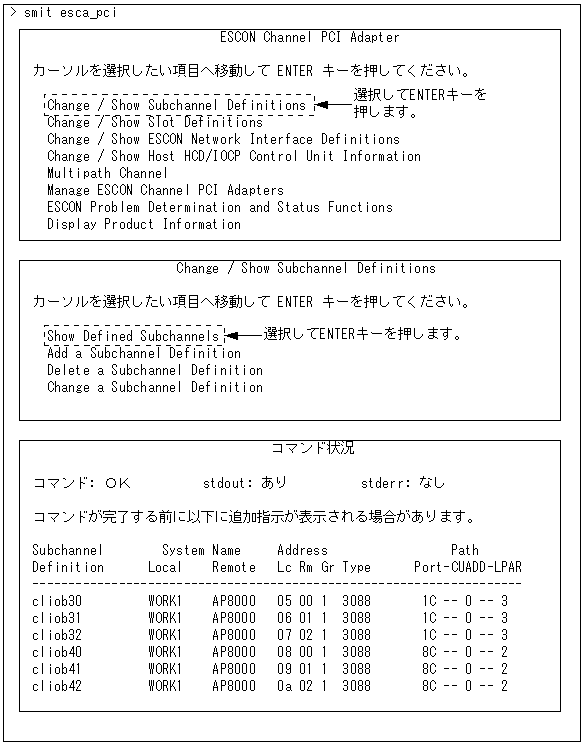

(b)　EP8000シリーズのチャネルドライバのサブチャネルの定義例

(c)　VOS3システムのXNF/AM/ES E2の定義例

 /***************************************************************/
 /*    サーバ ジッキ ヨウ テイギ                                */
 /*                                                             */
 /*   HOST   : HOST1                                            */
 /*                                                             */
 /***************************************************************/
 DEFINE-NETWORK
      VERSION 2;
 DEFINE-SUBNETWORK
      NAME HSTFEP
      SNIC 8002
      AUTHORITY PRIVATE
      TYPE HOST-FEP
      VERSION 2;
 /***************************************************************/
 /*    HOST1                                                    */
 /***************************************************************/
  HOST-NODE NAME HOST1 VERSION 25 SNPA-NNP 100;
     ULE NAME HOST1XNF TYPE XNF
         XNF-PARAMS CONNECTION(50 1024 50 100)
                    COMMAND 20
                    TRACE-BUF 128
                    DATA-BUF (500,1024,500,9);
     ULE N OSAS1000 TYPE OSAS TSEL X'00010000'
                    UPROFILE UPROF.OSAS.TL0;
     ULE N OSAS2000 TYPE OSAS TSEL X'00020000'
                    UPROFILE UPROF.OSAS.TL0;
   SERVER-CHANNEL NAME CH110
       ADDRESS (@10 @11)
       T-FUNCTION-PROFILE TPROF.SVCHN
       CONNECTED SVNET1
       IWU SVIWU1
              ;
   IWU NAME SVIWU1
       SNPA-TNP 0001
       CONNECTED SVNET1
       ;
 /***************************************************************/
 /*    SUBNETWORK ノ テイギ                                     */
 /***************************************************************/
 DEFINE-SUBNETWORK
      NAME SVNET1
      SNIC 8001
      TYPE SERVER-NETWORK
      VERSION 2;
   NODE NAME NODE1
        SNPA 1234567
        ;
   ULE NAME ULE1
        TYPE OSI-ENTITY
        T-SELECTOR X'00020000'
        U-FUNCTION-PROFILE UPROF.SV.TL2
        TL-NEGOTIATION-PROFILE TNEGO.SV.TL2;
 /***************************************************************/
 /*    PROFILE ノ テイギ                                        */
 /***************************************************************/
  DEFINE-PROFILE NAME PROF;
    T-FUNCTION-PROFILE NAME TPROF.SVCHN
      DL-SPECIFICATION
        DLC-PROTOCOL CHANNEL-SERVER
           MAX-DPDU 32768;
   U-FUNCTION-PROFILE NAME UPROF.SV.TL2
        T-CONNECTION-PROFILE TCONN.SV.TL2
        S-CONNECTION-PROFILE S-PROF;
   U-FUNCTION-PROFILE NAME UPROF.OSAS.TL0
        T-CONNECTION-PROFILE TCONN.SV.TL0
        S-CONNECTION-PROFILE S-PROF;
   S-CONNECTION-PROFILE NAME S-PROF
        MAX-TSDU 0;
   T-CONNECTION-PROFILE NAME TCONN.SV.TL2
     EXPEDITED-DATA NOT-USE
     MULTIPLEX USE
     CONCATENATION USE
     CREDIT 15
     FLOW-CONTROL USE
     TL-CLASS 2
     MAX-TPDU 32768;
   TL-NEGOTIATION-PROFILE NAME TNEGO.SV.TL2
     EXPEDITED-DATA NOT-USE
     CREDIT 15
     FLOW-CONTROL USE
     RESPONSE-CLASS 2
     MAX-TPDU 32768;
   T-CONNECTION-PROFILE NAME TCONN.SV.TL0
     TL-CLASS 0;
