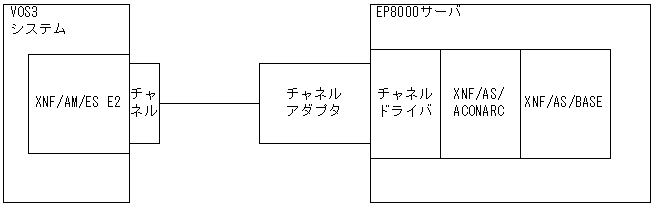

1台のEP8000と1台のVOS3ホストを接続する場合の構成例を図4-20に示します。

図4-20　1台のEP8000と1台のVOS3ホストを接続する場合の構成例

定義例を次に示します。

(a)　EP8000シリーズのXNF/ASの定義例


configuration
  version 1
  max_CHANNEL_link 1
  max_CHANNEL_VC 1
  max_CHANNEL_host 1
  max_TSAP 100
  max_OSI_association 1024
  max_CHANNEL_TC 1024
  ;
OSI_buffer
  name OSIchbuf
  number 1024
  size 8192
 ;
CHANNEL_definition
  name channel
  ;
CHANNEL_line
  name chline01
  device_name esca0
  send_subchannel_name cliob30
  receive_subchannel_name cliob31
  send_buffer_number 256
  receive_buffer_number 512
  ;
  CHANNEL_link
    name chlink01
    VASS 101
    ;
CHANNEL_VC
  name chvc01
  VASS 900
  DTE_address 1234567
  network_id 8001
  initial_status active
  buffer_pool OSIchbuf
  ;

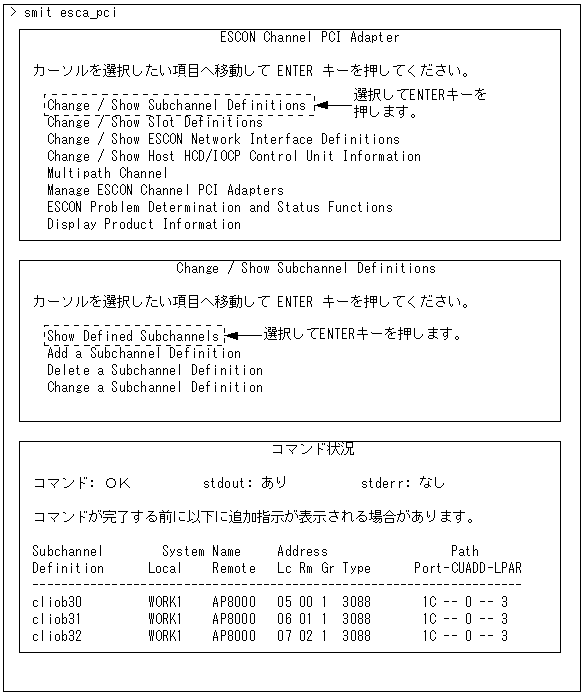

(b)　EP8000シリーズのチャネルドライバのサブチャネルの定義例

(c)　VOS3システムのXNF/AM/ES E2の定義例


 /***************************************************************/
 /*   サーバ ジッキ ヨウ テイギ                                 */
 /*                                                             */
 /*   HOST   : HOST1                                            */
 /*                                                             */
 /***************************************************************/

 DEFINE-NETWORK
      VERSION 2;
 DEFINE-SUBNETWORK
      NAME HSTFEP
      SNIC 8002
      AUTHORITY PRIVATE
      TYPE HOST-FEP
      VERSION 2;
 /***************************************************************/
 /*    HOST1                                                    */
 /***************************************************************/
  HOST-NODE NAME HOST1 VERSION 25 SNPA-NNP 100;
     ULE NAME HOST1XNF TYPE XNF
         XNF-PARAMS CONNECTION(50 1024 50 100)
                    COMMAND 20
                    TRACE-BUF 128
                    DATA-BUF (500,1024,500,9);

     ULE N OSAS1000 TYPE OSAS TSEL X'00010000'
                    UPROFILE UPROF.OSAS.TL0;
     ULE N OSAS2000 TYPE OSAS TSEL X'00020000'
                    UPROFILE UPROF.OSAS.TL0;

   SERVER-CHANNEL NAME CH110
       ADDRESS (@10 @11)
       T-FUNCTION-PROFILE TPROF.SVCHN
       CONNECTED SVNET1
       IWU SVIWU1
              ;
   IWU NAME SVIWU1
       SNPA-TNP 0001
       CONNECTED SVNET1
       ;

 /***************************************************************/
 /*    SUBNETWORK ノ テイギ                                     */
 /***************************************************************/
 DEFINE-SUBNETWORK
      NAME SVNET1
      SNIC 8001
      TYPE SERVER-NETWORK
      VERSION 2;

   NODE NAME NODE1
        SNPA 1234567
        ;
   ULE NAME ULE1
        TYPE OSI-ENTITY
        T-SELECTOR X'00020000'
        U-FUNCTION-PROFILE UPROF.SV.TL2
        TL-NEGOTIATION-PROFILE TNEGO.SV.TL2;

 /***************************************************************/
 /*    PROFILE ノ テイギ                                        */
 /***************************************************************/
  DEFINE-PROFILE NAME PROF;
    T-FUNCTION-PROFILE NAME TPROF.SVCHN
      DL-SPECIFICATION
        DLC-PROTOCOL CHANNEL-SERVER
           MAX-DPDU 32768;

   U-FUNCTION-PROFILE NAME UPROF.SV.TL2
        T-CONNECTION-PROFILE TCONN.SV.TL2
        S-CONNECTION-PROFILE S-PROF;
   U-FUNCTION-PROFILE NAME UPROF.OSAS.TL0
        T-CONNECTION-PROFILE TCONN.SV.TL0
        S-CONNECTION-PROFILE S-PROF;

   S-CONNECTION-PROFILE NAME S-PROF
        MAX-TSDU 0;

   T-CONNECTION-PROFILE NAME TCONN.SV.TL2
     EXPEDITED-DATA NOT-USE
     MULTIPLEX USE
     CONCATENATION USE
     CREDIT 15
     FLOW-CONTROL USE
     TL-CLASS 2
     MAX-TPDU 32768;
   TL-NEGOTIATION-PROFILE NAME TNEGO.SV.TL2
     EXPEDITED-DATA NOT-USE
     CREDIT 15
     FLOW-CONTROL USE
     RESPONSE-CLASS 2
     MAX-TPDU 32768;

   T-CONNECTION-PROFILE NAME TCONN.SV.TL0
     TL-CLASS 0;
