2.2.2 Use in cloud environment

This section explains the system configuration for constructing JP1/AJS3 for Cloud Service Applications in a cloud environment.

Note: It is also possible to use the manager host as a service linkage job or service linkage monitoring job execution destination host without constructing an agent host.

Organization of this subsection

(1) To construct JP1/AJS3 - Manager and JP1/AJS3 - Agent in on-premises environment
(2) To construct only JP1/AJS3 for Cloud Service Applications in cloud
(3) To construct on the same host as JP1/AJS3 - Manager or JP1/AJS3 - Agent on cloud
(4) To construct JP1/AJS3 - Manager and JP1/AJS3 - Agent in a mix of on-premises and cloud

(1) To construct JP1/AJS3 - Manager and JP1/AJS3 - Agent in on-premises environment

JP1/AJS3 for Cloud Service Applications is constructed on a cloud, and JP1/AJS3 - Manager and JP1/AJS3 - Agent are in an on-premises environment.

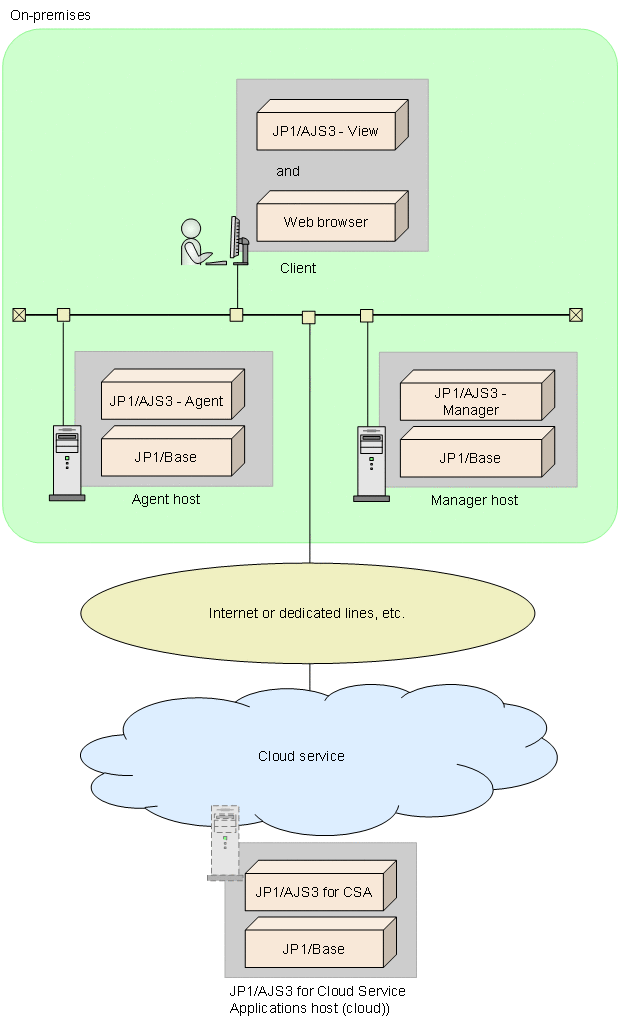

Figure 2‒5: Example of system configuration for constructing JP1/AJS3 for Cloud Service Applications on cloud and JP1/AJS3 - Manager and JP1/AJS3 - Agent in the on-premises host

Legend:: JP1/AJS3 for CSA: JP1/AJS3 for Cloud Service Applications

To Page Top

(2) To construct only JP1/AJS3 for Cloud Service Applications in cloud

JP1/AJS3 for Cloud Service Applications is constructed in a cloud host separate from the one for JP1/AJS3 - Manager and JP1/AJS3 - Agent.

JP1/AJS3 - Manager and JP1/AJS3 - Agent are also constructed in the cloud.

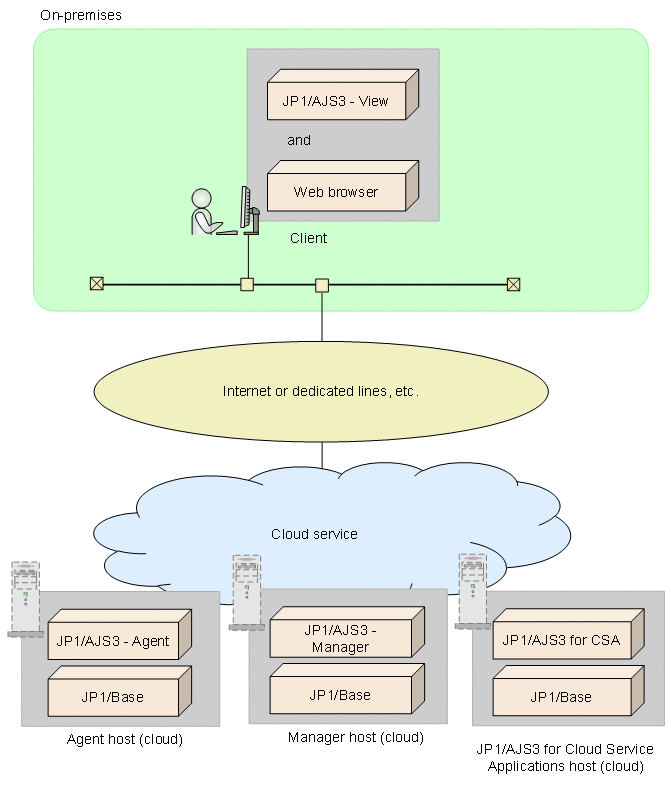

Figure 2‒6: Example of system configuration for constructing JP1/AJS3 for Cloud Service Applications, JP1/AJS3 - Manager, and JP1/AJS3 - Agent in the cloud

Legend:: JP1/AJS3 for CSA: JP1/AJS3 for Cloud Service Applications

To Page Top

(3) To construct on the same host as JP1/AJS3 - Manager or JP1/AJS3 - Agent on cloud

JP1/AJS3 for Cloud Service Applications is constructed on the same host as the one for JP1/AJS3 - Manager or JP1/AJS3 - Agent in the cloud.

Figure 2‒7: Example of system configuration for constructing JP1/AJS3 for Cloud Service Applications on the same cloud host for JP1/AJS3 - Manager

Legend:: JP1/AJS3 for CSA: JP1/AJS3 for Cloud Service Applications

To Page Top

(4) To construct JP1/AJS3 - Manager and JP1/AJS3 - Agent in a mix of on-premises and cloud

JP1/AJS3 for Cloud Service Applications is constructed on a host in a cloud, while JP1/AJS3 - Manager and JP1/AJS3 - Agent are constructed in a mixed environment of on-premises and cloud.

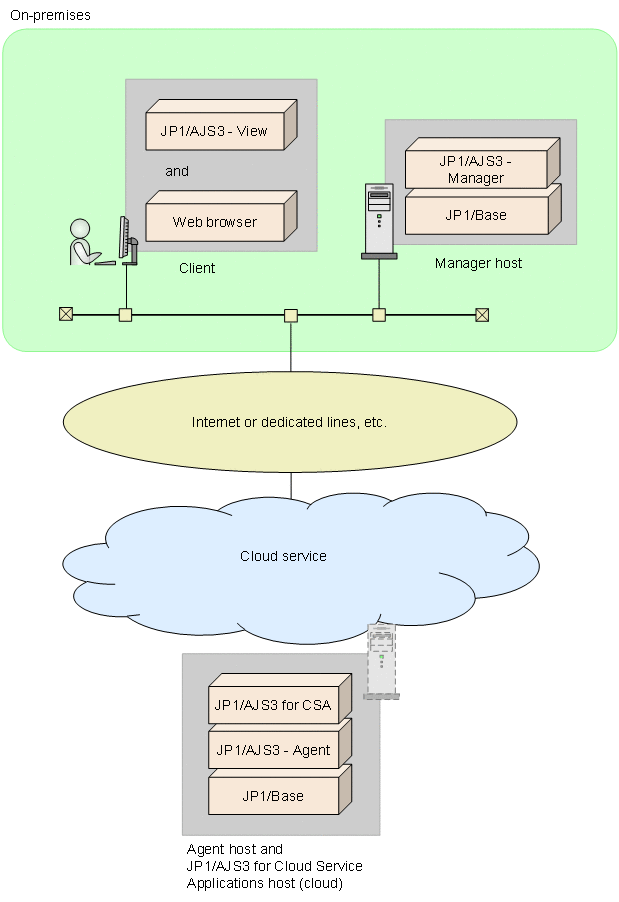

Figure 2‒8: Example of system configuration for constructing JP1/AJS3 for Cloud Service Applications and JP1/AJS3 - Agent in the cloud host and JP1/AJS3 - Manager in on-premises

Legend:

JP1/AJS3 for CSA: JP1/AJS3 for Cloud Service Applications

Notes

JP1/AJS3 - Agent and JP1/AJS3 for Cloud Service Applications can be constructed on another host.
It is possible to construct JP1/AJS3 - Manager in a cloud and JP1/AJS3 - Agent in an on-premises environment.
