2.2.1 Use in on-premises environment

This section describes the system configuration for constructing JP1/AJS3 for Cloud Service Applications in an on-premises environment.

Note that JP1/AJS3 for Cloud Service Applications is abbreviated as JP1/AJS3 for CSA in the figures of this section.

Note: It is also possible to use the manager host as a service linkage job or service linkage monitoring job execution destination host without constructing an agent host.

Organization of this subsection

(1) To construct only JP1/AJS3 for Cloud Service Applications
(2) To construct on-premises JP1/AJS3 - Manager and JP1/AJS3 - Agent in same host
(3) To construct JP1/AJS3 - Manager and JP1/AJS3 - Agent in cloud
(4) To construct JP1/AJS3 - Manager and JP1/AJS3 - Agent in on-premises environment and on cloud in mix

(1) To construct only JP1/AJS3 for Cloud Service Applications

Construct JP1/AJS3 for Cloud Service Applications in a host separate from the one for JP1/AJS3 - Manager and JP1/AJS3 - Agent.

JP1/AJS3 - Manager and JP1/AJS3 - Agent are constructed in an on-premises environment.

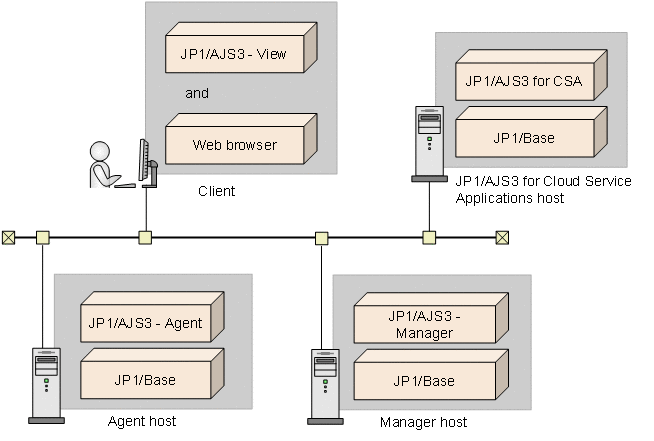

Figure 2‒1: Example of system configuration for constructing only JP1/AJS3 for Cloud Service Applications

Legend:: JP1/AJS3 for CSA: JP1/AJS3 for Cloud Service Applications

To Page Top

(2) To construct on-premises JP1/AJS3 - Manager and JP1/AJS3 - Agent in same host

JP1/AJS3 for Cloud Service Applications and JP1/AJS3 - Manager and JP1/AJS3 - Agent are constructed in the same host.

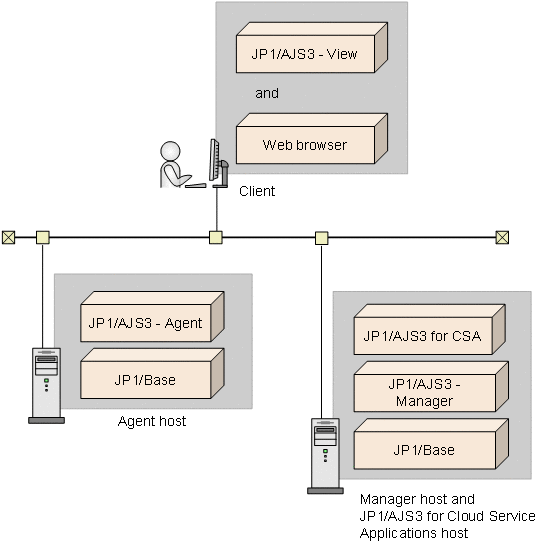

Figure 2‒2: Example of system configuration for constructing JP1/AJS3 for Cloud Service Applications and JP1/AJS3 - Manager are on the same host

Legend:: JP1/AJS3 for CSA: JP1/AJS3 for Cloud Service Applications

To Page Top

(3) To construct JP1/AJS3 - Manager and JP1/AJS3 - Agent in cloud

JP1/AJS3 for Cloud Service Applications is constructed in an on-premises host and JP1/AJS3 - Manager and JP1/AJS3 - Agent are in the cloud.

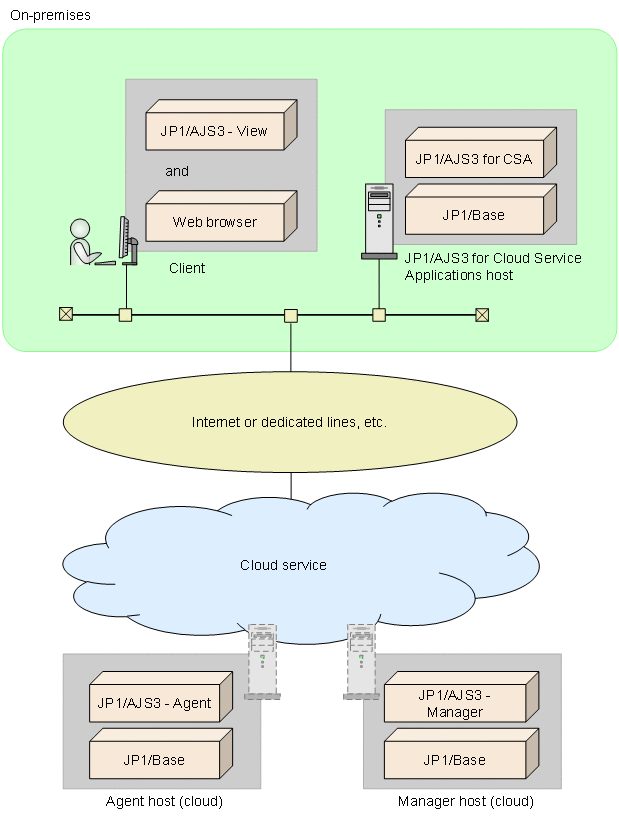

Figure 2‒3: Example of system configuration for constructing JP1/AJS3 for Cloud Service Applications in on-premises host and JP1/AJS3 - Manager and JP1/AJS3 - Agent in the cloud

Legend:: JP1/AJS3 for CSA: JP1/AJS3 for Cloud Service Applications

To Page Top

(4) To construct JP1/AJS3 - Manager and JP1/AJS3 - Agent in on-premises environment and on cloud in mix

JP1/AJS3 for Cloud Service Applications is constructed on an on-premises host while JP1/AJS3 - Manager and JP1/AJS3 - Agent are constructed in an on-premises environment and on a cloud in mix.

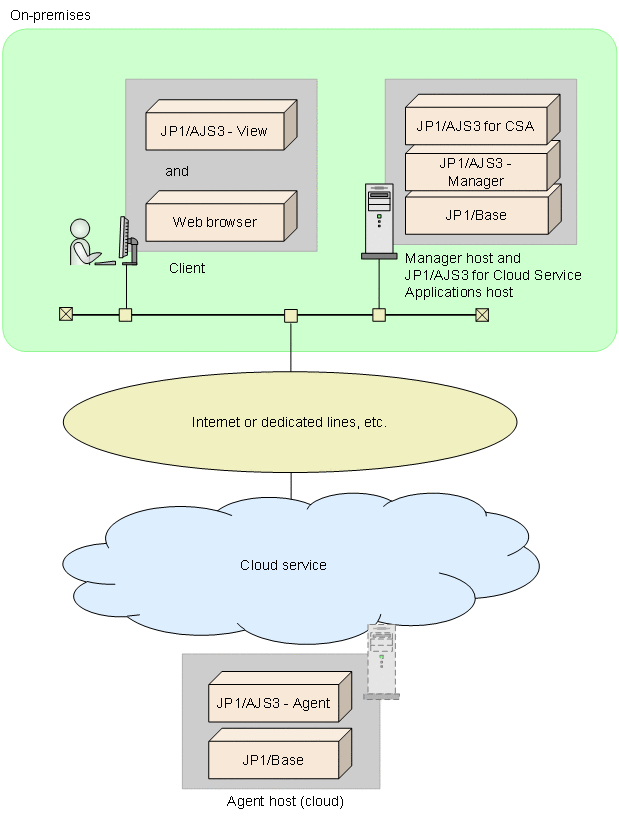

Figure 2‒4: Example of system configuration for constructing JP1/AJS3 for Cloud Service Applications and JP1/AJS3 - Manager in on-premises host and JP1/AJS3 - Agent in the cloud

Legend:

JP1/AJS3 for CSA: JP1/AJS3 for Cloud Service Applications

Notes

JP1/AJS3 - Manger and JP1/AJS3 for Cloud Service Applications can also be constructed on another host.
It is also possible to construct JP1/AJS3 - Manager on a cloud and JP1/AJS3 - Agent in an on-premises environment.
