16.2.1 Page transitions in Management Portal

The following figure shows the screen transitions in the management portal.

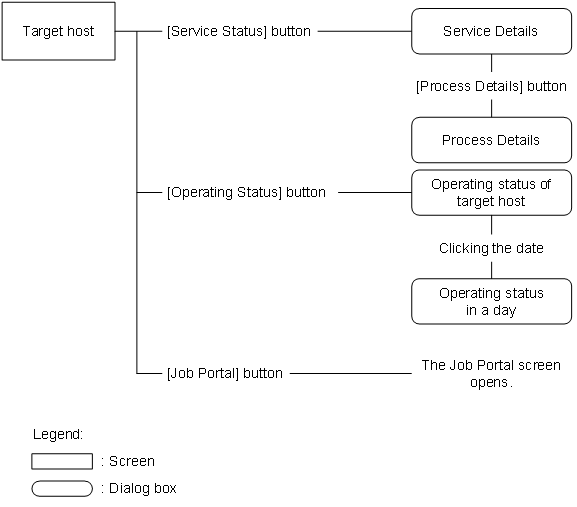

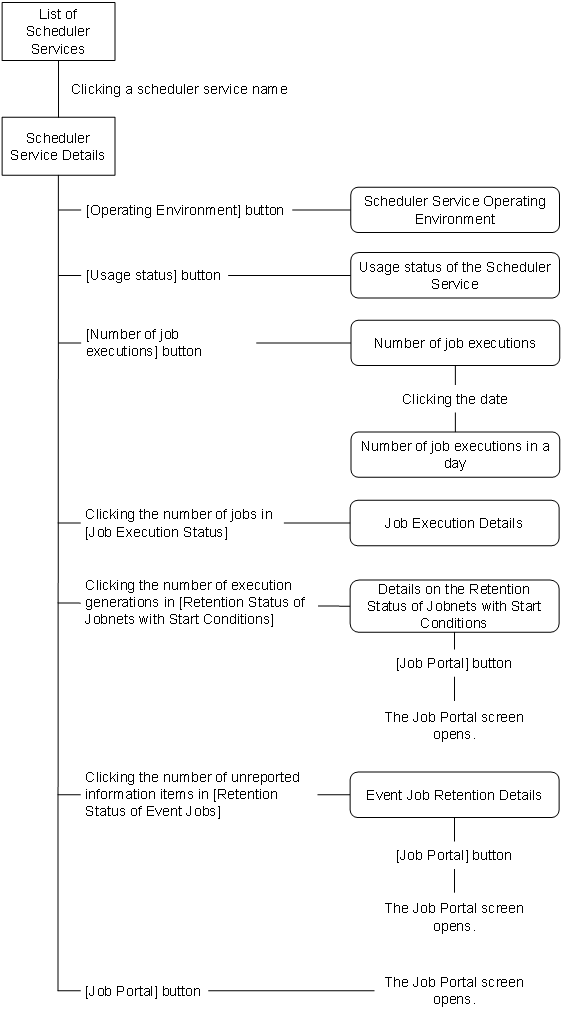

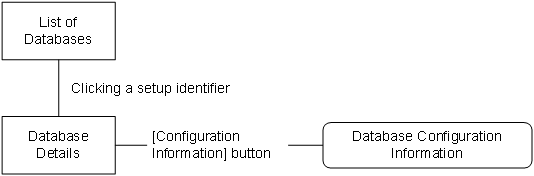

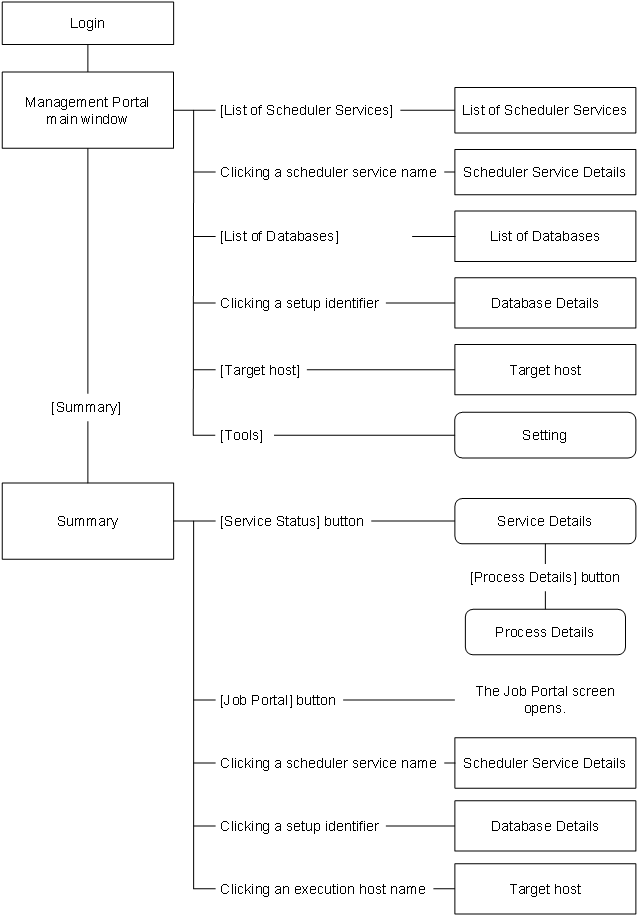

Figure 16‒1: Screen transitions in management portal

The following table lists the screens and dialog boxes of the management portal and the sections related to them:

No.	Screen	Relevant section
1	Summary screen	16.2.3
2	List of Scheduler Services screen	`16.2.4`
3	Scheduler Service Details screen	16.2.5
4	Job Execution Details dialog box	16.2.6
5	Details on the Retention Status of Jobnets with Start Conditions dialog box	16.2.7
6	Event Job Retention Details dialog box	16.2.8
7	Scheduler Service Operating Environment dialog box	16.2.9
8	Usage status of the Scheduler Service dialog box	16.2.10
9	Number of job executions dialog box	16.2.11
10	Number of job executions in a day dialog box	16.2.12
11	List of Databases screen	16.2.13
12	Database Details screen	16.2.14
13	Database Configuration Information dialog box	16.2.15
14	Target host screen	16.2.16
15	Service Details dialog box	16.2.17
16	Process Details dialog box	16.2.18
17	Operating status of target host dialog box	16.2.19
18	Operating status in a day dialog box (for an execution host)	16.2.20
19	Setting dialog box	16.2.21
