16.2.19 Operating status of target host dialog box

The Operating status of target host dialog box can display the following types of information on an execution host basis: daily maximum number of concurrently executed jobs, daily number of executed jobs, and hourly job execution status. The type of information to be displayed in the graph can be changed by using the radio buttons in the Display target area.

The following figure shows the Operating status of target host dialog box.

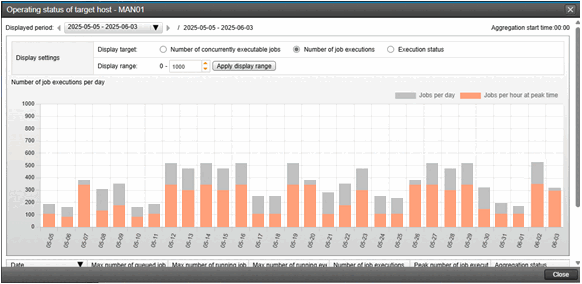

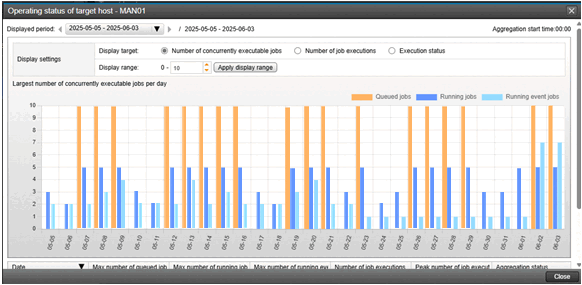

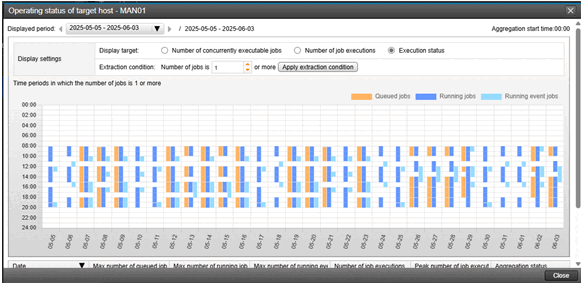

Figure 16‒19: Operating status of target host dialog box

When you click a date, the Operating status in a day dialog box appears. In this dialog box, you can check the hourly maximum number of concurrently executed jobs and the hourly number of executed jobs.

The following table lists the items displayed in the Operating status of target host dialog box.

Table 16‒10: List of items displayed in the Operating status of target host dialog box
Displayed item		Description
Displayed period		Displays the period for which the operating status of an execution agent can be shown.
Aggregation start time		Displays the value of the AGTAGGSTARTTIME environment setting parameter. For details about the AGTAGGSTARTTIME environment setting parameter, see 20.15.2(20) AGTAGGSTARTTIME in the JP1/Automatic Job Management System 3 Configuration Guide.
Display settings	Display target	Contains the following radio buttons, which allow the user to select the type of information to be displayed in the graph: Number of concurrently executable jobs Number of job executions Execution status
Display settings	Display range or Extraction condition	Allows the user to specify the upper limit on, or the extraction conditions for, the execution agent performance data to be displayed.
Date		Displays the date on which aggregation was performed.
Max number of queued jobs (concurrent)		Displays the maximum number of concurrently queued jobs.
Max number of running jobs (concurrent)		Displays the maximum number of concurrently running jobs.
Max number of running event jobs (concurrent)		Displays the maximum number of concurrently running event jobs.
Number of job executions		Displays the number of jobs executed.
Peak number of job executions per hour		Displays the hourly number of jobs executed during the peak time period.
Aggregation status		Displays the aggregation status. When the aggregation of execution agent operation data is in progress on the connection host, it will be displayed as "Currently aggregating".

The following table shows the details of the values displayed in the Operating status of target host dialog box. For details about the output items of the ajsagtreport command, see the descriptions about ajsagtreport in 3. Commands Used for Normal Operations in the manual JP1/Automatic Job Management System 3 Command Reference.

Table 16‒11: Details of the values displayed in the Operating status of target host dialog box
No.	Displayed target	Value	Description	Output items of the ajsagtreport command
1	Largest number of concurrently executable jobs per day	Queued jobs	Displays the maximum number of jobs executed concurrently per hour for the execution host within a day. The number of jobs executed concurrently per hour for the execution host is the total number of jobs executed concurrently per hour for all execution agents.	QUEUING_JOB_NUM
2		Running jobs		RUNNING_JOB_NUM
3		Running event jobs		RUNNING_EVJOB_NUM
4	Number of job executions per day	Jobs per day	Displays the total number of jobs executed per hour for the execution host over 24 hours. The number of jobs executed per hour for the execution host is the total number of jobs executed per hour for all execution agents.	Sum of JOB_EXEC_START_NUM and EVJOB_EXEC_START_NUM
5	Number of job executions per day	Jobs per hour at peak time	Display the maximum number of jobs executed per hour for the execution host within a day. The number of jobs executed per hour for the execution host is the total number of jobs executed per hour for all execution agents.	Sum of JOB_EXEC_START_NUM and EVJOB_EXEC_START_NUM
6	Hourly job execution status	Queued jobs	Display the time periods in which the number of jobs executed concurrently per hour for the execution host is equal to or greater than the number of jobs set for extraction conditions. The number of jobs executed concurrently per hour for the execution host is the total number of jobs executed concurrently per hour for all execution agents.	QUEUING_JOB_NUM
7		Running jobs		RUNNING_JOB_NUM
8		Running event jobs		RUNNING_EVJOB_NUM
