15.2.42 Execution Status dialog box
The Execution Status dialog box can display the details of the following items in a list format: the number of jobs queued on an execution agent, the number of jobs running on the execution agent, and the number of event jobs running on the execution agent.

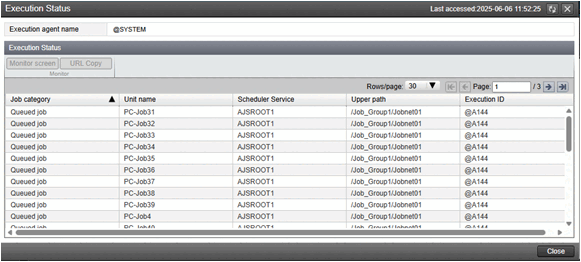

The following figure shows the Execution Status dialog box.
|
|
![[Figure]](./GRAPHICS/ZVFU0770.GIF)
Clicking the Monitor screen button displays the Monitor screen.
You can copy the URL of the Monitor screen for a specific unit. To do this, select the unit, and then click the URL Copy button. For details about the Monitor screen, see 15.2.9 Monitor screen. You can also open the Monitor screen with a web browser by entering the copied URL on the address bar (URL entry area) of the web browser.
If the message Information could not be acquired from some units appears in the Execution Status dialog box, the dialog box has failed to acquire information from some units. If you click this message, the Units from which information could not be acquired dialog box appears. You can use this dialog box to check the information about the units from which information could not be acquired.
- Cautionary notes
-
-
If there are a large number of jobs running or queued, it might take time for all of them to be displayed, or a timeout might occur. Use the Web GUI (Job Portal) in a period of low workload to display the information. Additionally, you can also confirm results by using the ajsagtshow command. If the Web GUI display takes too long and interferes with operations, use the ajsagtshow command. For details about the ajsagtshow command, see ajsagtshow in 3. Commands Used for Normal Operations in the manual JP1/Automatic Job Management System 3 Command Reference.
-
This dialog box might not be displayed if multiple instances are launched concurrently or if the -j option is specified with the ajsagtshow command to execute multiple instances simultaneously. If message KNAK3696-E is displayed and message KAVT8332-E is output to the integrated trace log, please attempt to redisplay the dialog box.
-
