15.2.41 Operating status in a day dialog box (for an execution agent)
The Operating status in a day dialog box displays the hourly maximum number of concurrently executed jobs and the hourly number of executed jobs on an execution agent basis.
The aggregation results displayed in the Operating status in a day dialog box differ depending on the type of data selected in the Operating status of execution agent dialog box.
-
If the user selects Number of job executions and clicks a date:
The hourly number of executed jobs is displayed for each hour.
-
If the user selects Number of concurrently executable jobs or Execution status and clicks a date:
The hourly maximum number of concurrently executed jobs is displayed for each hour.
The type of displayed aggregation data changes according to selection of the radio buttons in the Display target area.

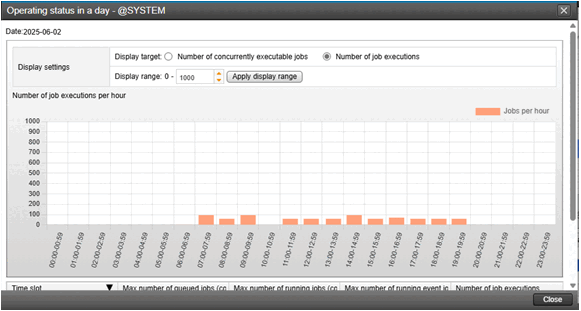

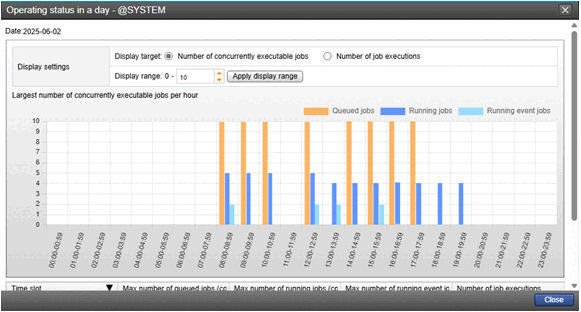

The following figure shows the Operating status in a day dialog box.
|
|
![[Figure]](./GRAPHICS/ZVFU0760.GIF)
![[Figure]](./GRAPHICS/ZVFU0761.GIF)
