2.6.1 Tabs area

(a) Suggestion list area

This subsection describes the suggestion list area.

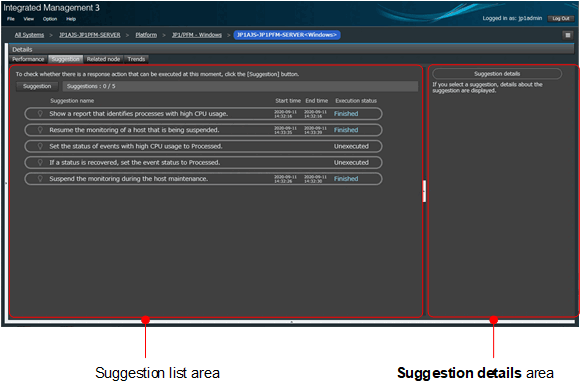

Figure 2‒47: Example of the suggestion list area

Message

This field displays the message: To check whether there is a response action that can be executed at this moment, click the [Suggestion] button.

Suggestion button

This button starts judgment on the criteria of displayed suggestion bars to suggest response actions. When this button is clicked, the system judges whether criteria associated with the suggestions match the current system status to activate/deactivate the suggestion bars. Then, the suggestion list area is refreshed, resulting in activated suggestion bars being moved to the top of the list.

Suggestions: number-of-suggestions / number-of-suggestion-definitions

The number-of-suggestions placeholder represents the number of activated suggestion bars. The number-of-suggestion-definitions placeholder represents the number of suggestion bars.

Suggestion bar

A bar displays a suggestion that is defined for the selected IM management node. Suggestion bars can be activated or deactivated depending on whether the Suggestion button is clicked and how the criteria are judged.

• Deactivated (not judged)

  Indicates that the Suggestion button has not yet been clicked.

• Activated (judged)

  Indicates that the Suggestion button was clicked and the criteria of the suggestion were judged to match the current status.

• Deactivated (judged)

  Indicates that the Suggestion button was clicked and the criteria of the suggestion were judged not to match the current status.

If the judgment of suggestion criteria failed, the suggestion bar displays the error icon at the left of the bar.

When you select a suggestion bar, the bar is enclosed in a blue frame indicating that the suggestion is currently selected.

Each suggestion bar displays the following items:

Suggestion icon

The icon appears when the suggestion bar is activated. When the suggestion bar is deactivated, the suggestion icon is also deactivated.

Suggestion name

Displays the suggestion name. A long suggestion name can be truncated and followed by an ellipsis (...).

Start time

Displays the date and time when the previous execution of the suggestion started. The following format is used:

YYYY-MM-DD HH:mm:ss

The Start time field is blank if the response action has not yet been executed.

End time

Displays the date and time when the previous execution of the suggestion finished. The following format is used:

YYYY-MM-DD HH:mm:ss

The End time field is blank if the response action has not yet been executed, the action is running, or the call failed.

Execution status

Displays the result of the response action executed last time. The text color varies as follows:

• Finished (blue)

• Call error (red)

• Unexecuted (gray)

• Running (green)

Execute button

This button appears after the Suggestion button is clicked to judge the criteria of the suggestion. The button is activated when the suggestion bar is activated, or the response action is not running.

Clicking the Execute button opens a dialog box asking you to confirm the execution of the response action. When you click the OK button on the dialog box, the caption of this button changes from Execute to Running, and the execution of the selected suggestion starts.

(b) Suggestion details area

The Suggestion details area displays the details of a suggestion bar you selected in the suggestion list area. It just displays the message If you select a suggestion, details about the suggestion are displayed. until a suggestion bar is selected.

Note that the Suggestion details area displays different information depending on the criteria of the suggestion bar you selected in the suggestion list area.

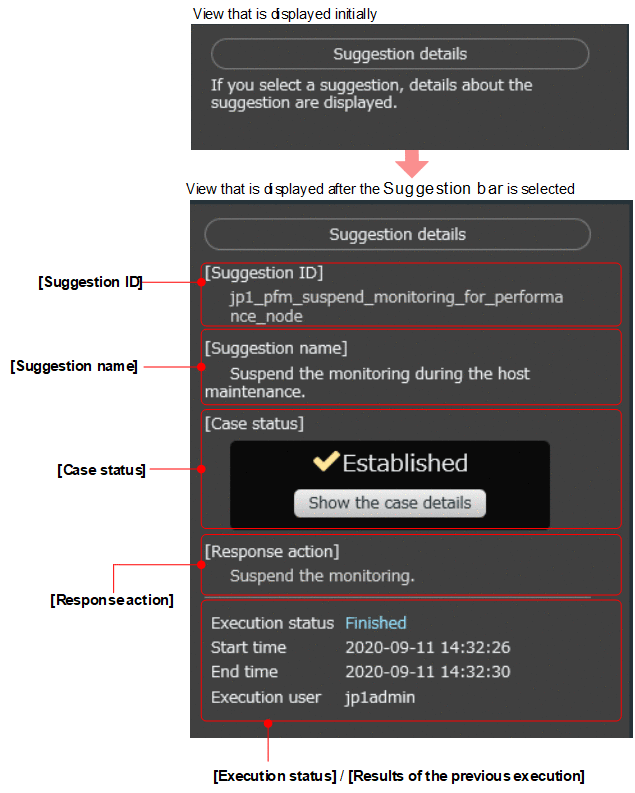

Figure 2‒48: Example of the Suggestion details area

Message

The message If you select a suggestion, details about the suggestion are displayed. is shown.

[Suggestion ID]

Displays the ID of the suggestion.

[Suggestion name]

Displays the suggestion name of the suggestion bar that you selected in the suggestion list area.

[Case status]

Displays whether the defined criteria are established, after the Suggestion button is clicked and the criteria of the suggestion are judged. Additionally, a message appears in red to provide users with information, if available. A long message can be truncated and followed by an ellipsis (...). Click to view the complete message. Click

to go back to the initial view.

The possible states are as follows:

• Established

  Indicates that the criteria were judged and the suggestion bar was activated.

• Not established

  Indicates that the criteria were judged and the suggestion bar was deactivated. The icon appears when an error occurred with the suggestion.

• Not judged

  Indicates that the Suggestion button has not yet been clicked.

Show the case details button

Opens the Case details window to display the details of the criteria defined for the selected suggestion bar. This button is activated when the Suggestion button in the suggestion list area is clicked.

[Response action]

Displays the description of the response action that is defined for the selected suggestion bar. The response action does not appear if the Suggestion button in the suggestion list area is not clicked.

When you use your mouse to hover over each item in [Response action], is displayed. Clicking it causes what you selected to be copied.

[Execution status] / [Results of the previous execution]

Displays the execution status while the selected suggestion bar is running, or otherwise the result of the previous execution.

The execution status or the result of the previous execution of the response action is displayed in one of the following text colors:

• Finished (blue)

• Call error (red)

• Unexecuted (white)

• Running (green)

Start time

Displays the date and time when the previous execution of the response action started. The following format is used:

YYYY-MM-DD HH:mm:ss

The start time does not appear if the response action has not yet been executed.

End time

Displays the date and time when the previous execution of the response action finished. The following format is used:

YYYY-MM-DD HH:mm:ss

The end time does not appear if the response action has not yet been executed, or the action is running.

Execution user

Displays the user name of the user who last executed the response action. The user name does not appear if the response action has not yet been executed.

(c) Case details window

Click the Show the case details button to open the Case details window. The Case details window displays the status of the activation criteria for the suggestion bar you selected in the suggestion list area.

Figure 2‒49: Example of the Case details window

Suggestion name

Displays the suggestion name.

Case status

Displays the status of the suggestion activation criteria.

• Established

  It is displayed when the suggestion activation criteria are met.

  Note that the icon appears if the judgment of a criterion failed.

• Not established

  It is displayed when the suggestion activation criteria are not met.

Message

If there is information that the user is notified of, a message is displayed in red letters above Case set n. If the message is too long to show the whole of it, the end of it is replaced with an ellipsis (...). Clicking allows you to view the whole text of the message. Clicking causes the message to shrink.

Case set n

The placeholder n is a sequence number of a set of suggestion activation criteria, starting from 1.

A set of suggestion activation criteria is defined as an array where criteria are combined with the AND condition and evaluated to judge whether to activate the suggestion. For details, see Suggestion definition file in Chapter 2. Definition Files in the JP1/Integrated Management 3 - Manager Command, Definition File and API Reference.

Judgment result

Displays the result of judgment on the set of suggestion activation criteria. The value can be either of the following:

• Established

• Not established

Note that the icon appears if the judgment of a criterion failed.

Judgment

Displays the judgment result of each suggestion activation criterion. The possible values are as follows:

• Match

• Does not match

• Error

• Not judged

Case

Describes a criterion. A long description can be truncated and followed by an ellipsis (...). Click to view the complete description. Click to go back to the initial view.

Acquisition time

Displays the date and time when the data of the criterion used for judgment was acquired, in the following format:

YYYY-MM-DD HH:mm:ss

A hyphen (-) appears when Judgment displays Not judged or Error. The text color is changed to gray for failed.

Close button

Closes the Case details window.

(a) Job flow area

This subsection describes the Job flow area.

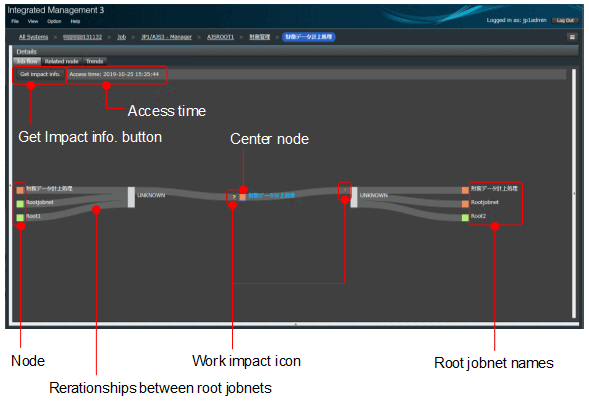

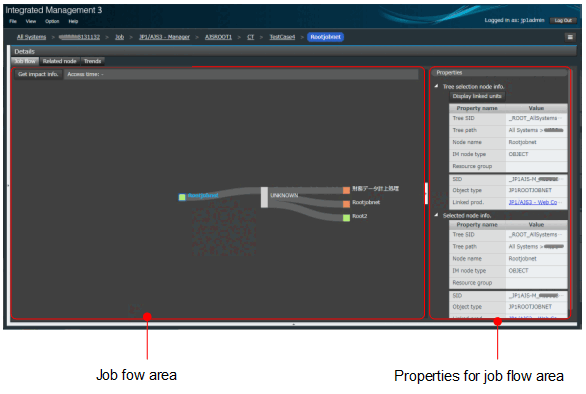

Figure 2‒51: Job flow area

Get impact info. button

Retrieves the information about whether failures in the preceding root jobnets impact following root jobnets from the Intelligent Integrated Management server and displays the work impact icons in the Job flow.

Access time

Indicates the time when the information about whether failures in the preceding root jobnets impact following root jobnets is retrieved from the Intelligent Integrated Management server.

To show the access time in the following format, click the Get impact info. button:

Access time: YYYY-MM-DD hh:mm:ss

If part of the information is updated, (*) is displayed at the end of the date and time.

Node

Each root jobnet is represented as a box. The colors of a node are the same as those of the corresponding component in the sunburst chart. When you click a node, the clicked node shows up in the middle of the window as the center node, and the window is refreshed to display information regarding the clicked node. Note, however, that gray nodes are not clickable.

On the other hand, you can click any node names regardless of their color. If you click a node name, only information displayed in the properties for job flow area is refreshed.

The nodes of JP1 events that are defined as severe events are colored according to the event level and status. The nodes of JP1 events that are not defined as severe events appear in white.

The table below describes how the nodes of JP1 events that are defined as severe events are colored according to the event level and status.

Table 2‒3: Colors of nodes according to the event level and status of JP1 events

Event level	Event status				UNKNOWN node#
	Unprocessed	Held	Processing	Normal or Resolved/Processed
Emergency	Red	Red	Red	Green	Gray
Alert
Critical
Error	Orange	Orange	Orange
Warning	Yellow	Yellow	Yellow
Notice
Information
Debug

#

This means a root jobnet for which the user has no permissions or a root jobnet (node) that lacks the tree SID.

When you hover over the icon, the tree path of the node is displayed in a tooltip.

Center node

The component (root jobnet) selected in the Operating status area, the Job flow tab, or the Related node tab is put in the middle of the window as the center node, and the relationships with other nodes are displayed. If the center node has no relationship with other nodes, only the center node is displayed. The center node is displayed enclosed in a blue frame.

The preceding root jobnets and succeeding root jobnets are displayed on the left and right of the center node on the window, respectively. If there is no preceding root jobnet or succeeding root jobnet, a gray node (UNKNOWN node) is displayed.

The Events area displays the information on the center node.

Root jobnet name

The name of the node is displayed as the root jobnet name. When you hover over a node, the tree path appears. If the full path is too long, the end of the path is replaced with an ellipsis (...).

When you click it, the root jobnet name turns blue, showing the information in the properties for Job flow area. Note that the component selected in the Operating status area remains unchanged.

Relationships between root jobnets

The relationships between root jobnets are represented with curved lines.

If a root jobnet has a looped connection to itself, the node is displayed at the right end and left end on the window as separate nodes.

Work impact icon

Shows if failures in the preceding root jobnets impact following root jobnets when failures occur, with one of the icons below.

There is no impact if no icon is displayed.

• : Impact: Yes

• : Error

• : Unknown^#

  #: If this icon is configured in the Intelligent Integrated Management Base definition file not to be shown, a blank field is displayed.

When you hover over the icon, the meaning of the icon is displayed in a tooltip.

When you click the work impact icon, the information of the linked units for the relation line on which the icon is shown is displayed in the Linked unit dialog box. For details about the Linked unit dialog box, see the description in (b) Properties for job flow area.

Note that the Job flow tab can display relationships involving the same root jobnet repeatedly. For example, a definition to run root jobnet A, root jobnet B, and then root jobnet A results in the same root jobnet appearing repeatedly. Repeated nodes have the work impact icons individually, but all icons displayed on the nodes with the same root jobnet name open the Linked unit dialog box containing the same information. This means that you do not need to click every work impact icon displayed on repeated nodes to open the Linked unit dialog box.

(b) Properties for job flow area

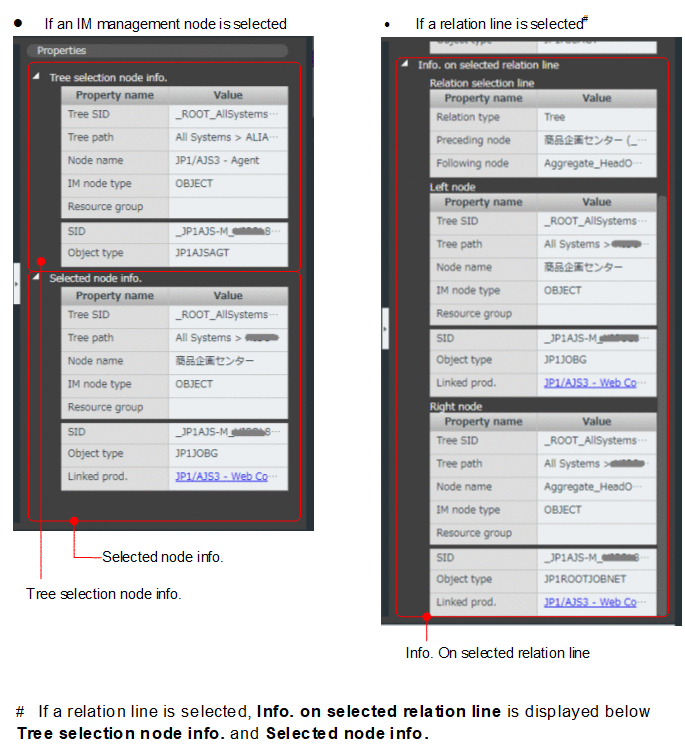

This subsection describes the properties for job flow area. The displayed properties vary depending on the conditions of the selected IM management node.

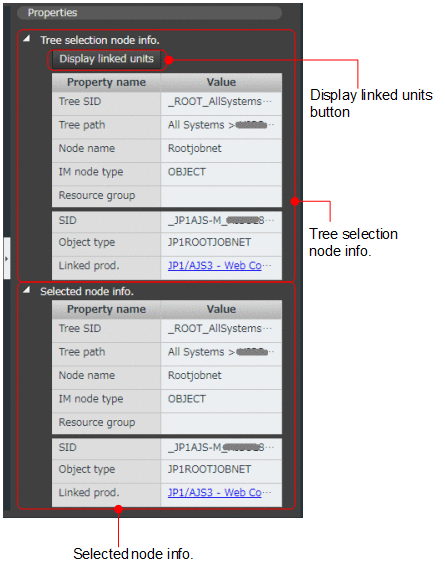

Figure 2‒52: Properties for job flow area

Tree selection node info.

The area shows the information of the node selected in the tree. When you hover over a value, the icon appears. Clicking it allows you to copy the value to the clipboard.

Clicking causes Tree selection node info. to be closed. Clicking causes Tree selection node info. to be opened.

The property names and values are shown below. If there is no information to be shown, no value is displayed in the field.

• Tree SID: Displays the SID of the tree.

• Tree path: Displays the tree path. It is the same information as the tree path that is displayed when you hover over the node.

• Node name: Displays the node name of the tree.

• IM node type: Displays the type name of the tree SID.

• Resource group: Displays the resource group name.

• SID: Displays the SID of the configuration information.

• Object type: Displays the object type.

• Linked prod.: Displays the JP1/AJS3 - Web Console link of the root jobnet to which the node selected in the tree belongs. When you click the link, the window of JP1/AJS3 - Web Console appears. If there is no information to be shown, the item itself is not displayed.

Display linked units button

This button is activated when a linked unit is connected with the selected node through a relation line.

When you click it, the Linked unit dialog box appears, showing the linked unit for which the IM management node selected in the tree serves as either a preceding root jobnet or following root jobnet.

If the selected IM management node does not have a linked unit, this button is inactive.

Selected node info.

Displays the information of the selected node. It shows the same information as that of Tree selection node info., other than the Display linked units button.

(c) Linked unit dialog box

Units that realize the relationships between root jobnets, such as JP1 event sending jobs and JP1 event reception monitoring jobs, are called linked units.

The Linked unit dialog box displays the list of linked unit information for each relation line. The information varies depending on the window from which the Linked unit dialog box is opened.

• If the dialog box is opened through the Display linked units button in the properties for job flow area:

  All linked units connected to the node selected in the tree via relation lines are displayed.

• If the dialog box is opened through an icon in the job flow area:

  The linked units connected to the relation line that has the icon selected in the job flow area are displayed.

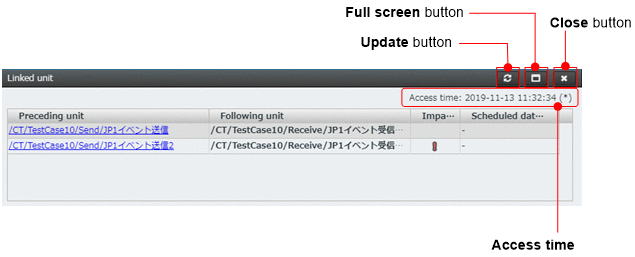

  Figure 2‒53: Linked unit dialog box

Each item can be sorted by item name. You can also change the order of the columns by dragging the header.

NO DATA is displayed if any of the following conditions is met:

• If a preceding root jobnet or following root jobnet shows the following linked unit:

  Linked unit in a link of a subordinate root jobnet of JP1/AJS - Manager 12-00

• If a linked unit in the following link is displayed:

  Link for which no linked unit information defined in the IM management node link definition file is specified

• If, after JP1/IM is upgraded from 12-00 to 12-10 or later, linked units are displayed without the jddcreatetree command and jddupdatetree command

The following describes the items displayed in the Linked unit dialog box.

Access time

Displays the date and time when the Linked unit dialog box is opened, in the following format:

Access time: YYYY-MM-DD hh:mm:ss

If part of the information is updated, (*) is displayed at the end of the date and time.

Refresh button

Refreshes the information in the Linked unit dialog box and updates the information in the job flow area.

Full screen button

Displays the Linked unit dialog box in full screen. Clicking the button restores it to the original size.

Close button

Closes the Linked unit dialog box.

Preceding unit

Displays a link showing the name of a linked unit when the selected IM management node is a preceding unit.

For a waiting relationship, this displays a link showing the name of the unit whose end is being waited for. For a relationship with a jobnet connector^#, this displays a link showing the job connector or the name of the connection-destination root jobnet.

When you click a link, the Monitor window of JP1/AJS3 - Web Console appears with the preceding unit selected. The generation of which impact information is retrieved in the Linked unit dialog box is displayed in the Monitor window.

Following unit

Displays a link showing the name of a linked unit when the selected IM management node is a following unit.

For a waiting relationship, this displays a link showing the name of the unit with wait conditions. For a relationship with a jobnet connector^#, this displays a link showing the job connector or the name of the connection-destination root jobnet.

When you click a link, the Monitor window of JP1/AJS3 - Web Console appears with the following unit selected. The generation of which scheduled link time of the following unit is retrieved is displayed in the Monitor window.

#

For jobnet connectors, the relationship between units in Preceding unit and Following unit varies depending on how execution order is controlled. When execution order is controlled synchronously, the unit names are displayed as follows:

• Preceding unit displays a jobnet connector, and Following unit displays a connection-destination root jobnet.

• Preceding unit displays a connection-destination root jobnet, and Following unit displays a jobnet connector.

When execution order is controlled asynchronously, the unit names are displayed as follows:

• Preceding unit displays a connection-destination root jobnet, and Following unit displays a jobnet connector.

For details about how to control execution order, see the JP1/Automatic Job Management System 3 System Design (Work Tasks) Guide.

Note

Suppose that you open the Linked unit dialog box by using the Display linked units button in the properties for job flow area. In this case, the name of the unit corresponding to the node (root jobnet) selected in the tree is displayed in bold. On the other hand, if you open the Linked unit dialog box by using a work impact icon displayed in the job flow area, unit names are not displayed in bold.

Impact (yes/no)

An icon is displayed if there is an impact on the following root jobnet from a failure in the preceding root jobnet.

It is displayed based on the information retrieved of the result generation whose root jobnet's end date and time is closest to the current date and time, or about the currently being executed generation. There is no impact if no icon is displayed.

• : Impact :Yes

• : Error

• : Unknown

Scheduled date and time for linkege

Displays the scheduled linkage date and time. The date and time displayed is the date and time of execution simulation by JP1/AJS.

• When the preceding unit is a root jobnet unit whose end is being waited for, and the following unit is a unit with wait conditions

  This displays the scheduled start date and time of an executing generation or scheduled generation of the following unit that is waiting for the execution ID of the preceding unit.

  A hyphen (-) appears in Scheduled date and time for linkage when the unit with wait conditions has no execution schedule, and the JP1/AJS - Manager environment setting parameter PREWAITNOSCHUNITS is set to yes.

• When the preceding unit and following unit are a jobnet connector or connection-destination root jobnet

  This displays the scheduled end date and time or the scheduled start date and time of an executing generation or scheduled generation of the following unit that is associated with the execution ID of the preceding unit. The scheduled end date and time appears when the following unit is a jobnet connector, or the scheduled start date and time appears when the following unit is a connection-destination root jobnet.

• When the preceding unit and following unit are units other than those described above

  This displays the information of an executing generation or scheduled generation whose scheduled start date and time or scheduled end date and time is the closest to the current date and time.

Message

Displays a message when an attempt to acquire linked unit information fails.

(a) Related node area

This subsection describes the related node area.

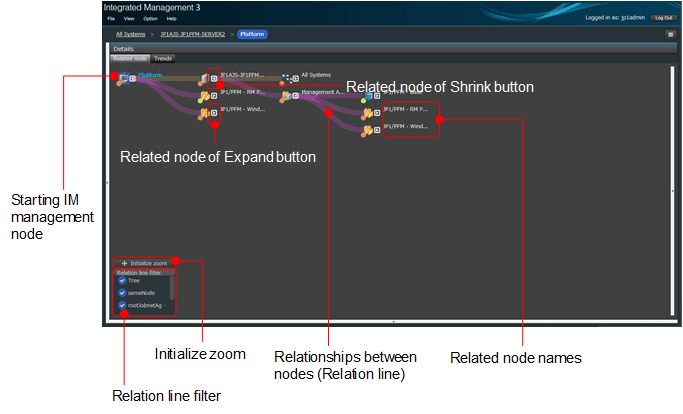

Figure 2‒55: Related node area

Note

You can change the position where a related node icon is displayed in the window by clicking and dragging the node in the related node area. To enlarge the node, double-click it. You can also use the mouse wheel to change the scale of enlargement.

Related node icon

Displays the types of related nodes, starting from the IM management node selected in the Operating status area or on the Job flow tab. For details about various icons for related nodes, see (7) Icons for related nodes.

At the lower left of a related node icon, an icon appears to indicate the status of the related node. The status icons are displayed in the same colors as those in the sunburst chart. Click a related node icon to display the information of the selected node in Selected node info. of Properties. You can click any related node icon and related node name regardless of the color of the status icon.

For JP1 events that are defined as severe events, the status icons are colored according to the event level and status. For JP1 events that are not defined as severe events, the status icons appear in white.

The table below describes how status icons for JP1 events that are defined as severe events are colored according to the event level and status of the JP1 events.

Table 2‒4: Colors of status icons according to the event level and status of JP1 events

Event level	Event status				UNKNOWN node#
	Unprocessed	Held	Processing	Normal or Resolved/Processed
Emergency	Red	Red	Red	Green	Gray
Alert
Critical
Error	Orange	Orange	Orange
Warning	Yellow	Yellow	Yellow
Notice
Information
Debug

#

This means a related node for which the user has no permissions or a related node that lacks the tree SID.

Related node name

Displays the names of related nodes. When you hover over a node, the tree path is displayed. If the full path is too long, the end of the path is replaced with an ellipsis (...).

This displays UNKNOWN if the relationship between the nodes indicates that no following node exists for the preceding node or no preceding node exists for the following node.

Relationships between nodes (relation line)

Displays connections between nodes as lines (relation lines).

By default, the relationships between the selected node and nodes with link information and the upper layer (infrastructure nodes) in the sunburst chart or the tree chart are displayed. The lower layers are not displayed.

The following shows the colors and meanings of the relation lines:

• Magenta: The relation type is Tree and the direction of the relation is from preceding node (left) to following node (right).

• Yellow: The relation type is Tree and the direction of the relation is from following node (left) to preceding node (right).

• Turquoise: The relation (link information) has a relation type other than Tree.

• White: There is a mix of multiple relation types (relation type Tree and others, or a mix of multiple relations (link information) other than Tree).

Relation type of a relation line

When you hover over a relation line, the relation type of the relation line is displayed in a tooltip.

• On a relation line with a mix of multiple relation types (blue), the tooltip shows the relation types separated by new lines.

• If some relation types as part of a mix of relation types are hidden through Relation line filter, the ends of the applicable relation types are followed by (-).

• If multiple relations (link information) other than Tree exist and they all are of the same relation type, they are displayed as one relation type.

Selecting a relation line

When you click a relation line, the line is thickened, showing the information of the selected relation line in Info. on selected relation line of Properties.

If you try to display the same combination of relation lines as the one that has been displayed before, the relation lines are not displayed, but all the buttons are switched to expanded state.

Expand related node button

When you click it, the related nodes and the upper and lower layers of the system configuration are expanded to the right. If all the relation lines have already been displayed, the icon is displayed.

Shrink related node button

When you click it, the related nodes displayed to the right are all shrunk.

Initialize zoom button

When you click it, the display positions and scale of enlargement in the Related node tab return to their initial states.

Relation line filter

Enables you to specify the type of relation lines displayed in the Related node tab through the selection of filter items. When you click a filter item, you can show or hide the corresponding relation line. All the relation lines are shown by default. The following lists available relation line filter items with their meanings:

• rootJobnetExecutionOrder: Relations for execution order of root jobnets

• rootJobnetAgent: Relations for root jobnets and AJS agents

• managerAgent: Relations for JP1 product managers and agents

• sameNode: Relations for nodes with the same name

• tree: Relations for parent nodes and child nodes in IM management node trees

(b) Properties for related node area

The properties for related node area displays the properties of the base node in the related node area, and the properties of the selected node or selected relation line.

This subsection describes the properties for related node area. Displayed properties vary depending on the conditions of the selected IM management node.

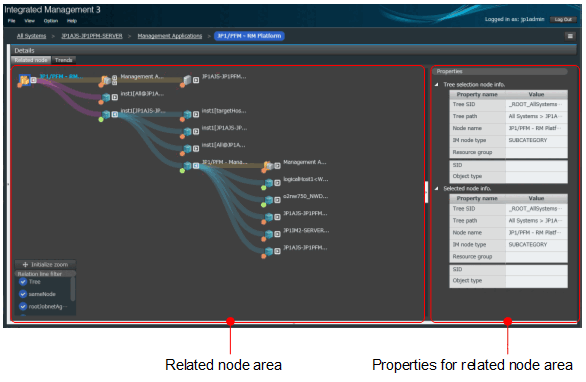

Figure 2‒56: Properties for related node area

Tree selection node info. / Selected node info.

Displays the same property information as that in the properties for job flow area as well as the property information specified by user-created plug-ins. However, for the Linked prod. item, it displays the information obtained from the plug-ins. For details about user-created plug-ins, see Chapter 4. User-created Plug-ins in the JP1/Integrated Management 3 - Manager Command, Definition File and API Reference.

See Tree selection node info. and Selected node info. in 2.6.1 (4)(b) Properties for job flow area.

Info. on selected relation line

Displays the information of the selected relation line.

When you hover over a value, appears. Clicking it allows you to copy the value to the clipboard.

Clicking causes Info. on selected relation line to be closed. Clicking causes Info. on selected relation line to be opened.

The property names and values are shown below. If there is no information to be shown, no value is displayed in the field.

Relation selection line

• Relation type: Displays the type of the relation line.

• Preceding node: The tree path of the preceding node are displayed in the following format:

  Preceding-node-name (preceding-node's-configuration-information-SID or tree-SID)

• Following node: The tree path of the following node are displayed in the following format:

  Following-node-name (following-node's-configuration-information-SID or tree-SID)

Left node / Right node

• Tree SID: Displays the SID of the tree.

• Tree path: Displays the tree path. It is the same information as the tree path that is displayed when you hover over the node.

• Node name: Displays the node name.

• IM node type: Displays the IM management node type.

• Resource group: Displays the resource group name.

• SID: Displays the SID of the configuration information.

• Object type: Displays the object type.

• Linked prod.: Displays the link of the linked product obtained from the plug-ins. When you click the link, the window of the linked product appears. If there is no information to be shown, the item itself is not displayed.

Note that Left node and Right node also show the property information specified by user-created plug-ins. For details about user-created plug-ins, see Chapter 4. User-created Plug-ins in the JP1/Integrated Management 3 - Manager Command, Definition File and API Reference.

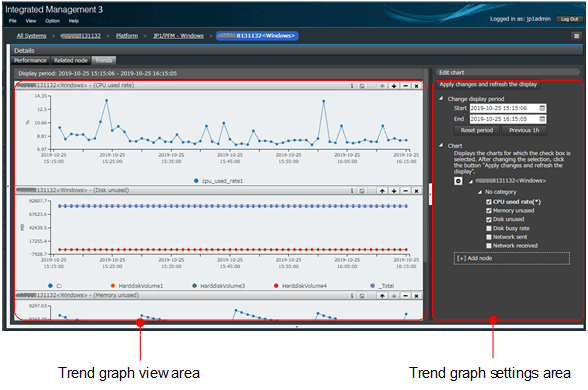

(a) Trend graph view area

This subsection describes the trend graph view area.

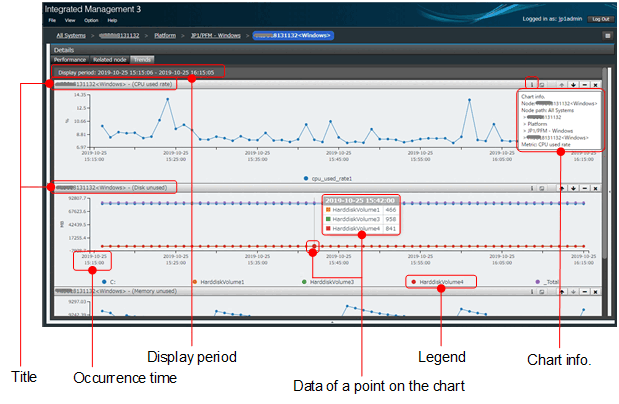

Figure 2‒58: Trend graph view area

Display period

Displays the period of the trend information on display in the following format:

YYYY-MM-DDΔhh:mm:ss (YYYY: year, MM: month, DD: day, Δ: space character, hh: hour, mm: minute, and ss: second)

Title

Displays the information below. If the title is too long, the end of it is replaced with an ellipsis (...).

• If a metric is not selected: label-name-of-the-IM-management-node

• If a metric is selected: label-name-of-the-IM-management-node - metric-name

If the chart on display is summarized, the title is displayed in the format of title. When you hover over , Summarized is displayed in the tooltip. If you want to see values before they are summarized, use Change display period so that the display period is shorter.

Chart info.

When you hover over it, the tree path of the chart on display is displayed in the tooltip.

Node transition

When you click it, the IM management node from which the chart on display retrieves the information is selected in the Operating status area, showing the list of events on the selected IM management node in the Events area.

The metrics, time period, and chart displayed in the trend graph settings area remain the same even after the transition. All the other tabs are initialized by the transition.

When you find an unusual node (for example, any unexpected value in the displayed chart), you can transition to that node and view a list of relevant events.

This icon is deactivated when the node to transition to happens to be the currently selected node.

Move up button

Moves the selected chart up by one spot.

Move down button

Moves the selected chart down by one spot.

Minimize button

Minimizes the selected chart. Clicking it again restores it to the original size.

Restore button

Restores the minimized chart to the original size.

Close button

Closes the selected chart.

Data of a point on the chart

Displays the time, legends on the chart, and values when you hover over a point on the chart.

Occurrence time

Displays the time when the event selected in Events occurred, together with the serial number. If multiple events with the same occurrence time are selected, the occurrence time of the event with the largest serial number is displayed.

Legend

Displays the legend of a graph. When you hover over a legend, the graph for the selected legend is highlighted in the chart, showing the legend in the tooltip.

If you want to show a specific graph in the chart, click the legends for graphs you want to hide. The graphs that correspond to the legends you clicked are hidden. When you click the legends again, the graphs are shown.

(b) Trend graph settings area

This subsection describes the trend graph settings area.

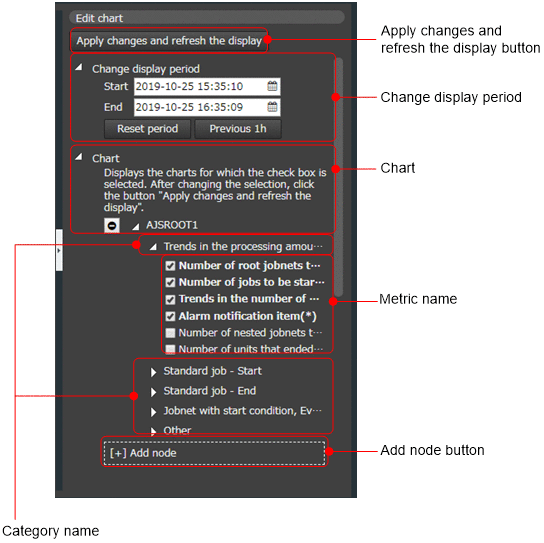

Figure 2‒59: Trend graph settings area

Apply changes and refresh the display button

Updates the trend information in the view area with the edits on the chart.

Change display period

Displays the period displayed in the trend information view area in the following format:

YYYY-MM-DDΔhh:mm:ss (YYYY: year, MM: month, DD: day,

Δ: space character, hh: hour, mm: minute, and ss: second)

Clicking closes Change display period. Clicking opens Change display period.

Start / End

• If an event is not selected: The period to be displayed is from 59 minutes 59 seconds ago up to the current time.

• If an event is selected: The period to be displayed is from 29 minutes 59 seconds before the event occurrence time to 30 minutes after.

• If multiple events are selected: The issuance date and time of the event with the latest date and time of event issuance is displayed.

• If an event that occurred between 30 minutes ago and now: The period between 29 minutes 59 seconds before the event occurrence time and now is displayed.

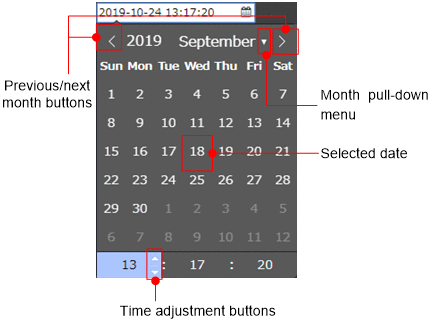

If you want to change the display period, click to open the calendar, where you can change the year, month, and time. You can specify a range between 1970/01/01:00:00 ~ 2099/12/31 23:59:59.

When you hover over the time, the time adjustment buttons appear. You can set the year by one year, the hour by one hour, the minute by five minutes, and the second by five seconds. You can enter the time manually.

If the start time specified in the calendar is later than the set end time, or if the specified end time is earlier than the set start time, the time specified as the end time is treated as the start time, and the time specified as the start time is treated as the end time.

Reset period button

Resets the time specified in Change display period.

Previous 1h button

Sets the Start time and the End time in Change display period to the time one hour before the specified time.

Chart

Displays the chart for the selected IM management node.

Clicking closes Chart. Clicking opens Chart.

IM node name

When you click next to the IM management node name, the node is deactivated, showing . Clicking undoes it.

If you want to remove a deactivated node, click the Apply changes and refresh the display button. You cannot recover a node once removed.

When you hover over a node name, the information below is displayed. If the text in the information is too long, the end of it is replaced with an ellipsis (...).

• Tree path of the IM management node

• Type of the metric

• Metric name

Category name

Displays the name of the category for the selected node. If the node has no category name, No category is displayed.

Clicking closes the corresponding category. Clicking opens the corresponding category to show the metric names.

• Metric names: Display the metric names under the node, with check boxes. Select the check boxes for the metrics for which you want to show graphs in the trend graph view area.

  For details about the metrics that can be retrieved from linked products, see 2.7 Metrics that can be retrieved from linked products.

[+] Add node button

Opens the Add node dialog box.

(c) Add node dialog box

The Add node dialog box is used to add a node that is selected in the displayed related node area.

It has the same items as those displayed in the related node area, other than those described here. For details, see 2.6.1(5)(a) Related node area.

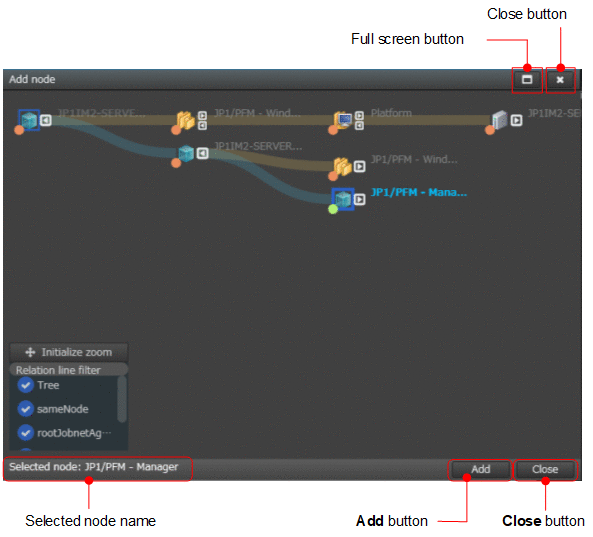

Figure 2‒60: Example of add node dialog box

The following describes the items displayed in the Add node dialog box.

Full screen button

Displays the Add node dialog box in full screen. Clicking the button restores it to the original size.

Close button

Closes the Add node dialog box.

Node icon

You can add nodes with white node names only.

When you hover over a node icon, the mouse cursor turns to , and text is displayed in the tooltip. The relation lines that connect to the node icon over which you hover become opaque.

When you hover over an inactive node name, the mouse cursor turns to .

When you select a node icon, the node icon is enclosed in a blue frame and the text color of the node name is changed to blue.

Once you add a node, you cannot add it again. You also cannot select and add multiple nodes at once. If you want to add multiple nodes, repeat the process to add each node.

Color of node name letters

The following shows the meanings of the node name letters:

• White: Means a node that has trend information and is not added to the trend graph settings area.

• Gray: Means a node that has no trend information.

• Bold gray: Means a node that has already been added.

Connection between nodes (relation line)

Displays a connection between nodes as a line (relation line). The relation line cannot be selected.

Selected node: node name

Displays the name of the selected node. If no node is selected, a hyphen (-) is displayed. If the node name is too long, the end of it is replaced with an ellipsis (...).

Add button

Adds the selected node.

Close button

Closes the Add node dialog box.

When you select a metric for the added node and click the Apply changes and refresh the display button, the graph for the added node is displayed in the trend information view area.

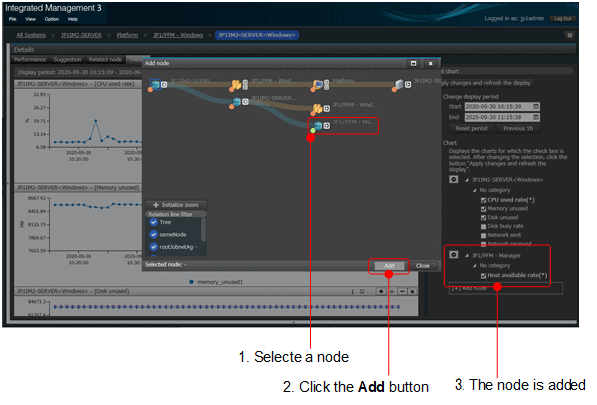

Figure 2‒61: Adding a node
