2.4.3 Add panel window

Clicking the Add panel button in the Setting Dashboard window displays the Add panel window.

The following shows an example of the Add panel window.

Figure 2‒30: Add panel window

Panel title

Specify the panel name up to 255 characters.

Panel type

Select the panel type you want to add from the pull-down menu.

The eight panel types are Trend, Ranking, Numerical value, Gauge, Alert information, Node state, Node state map, and Text. Depending on the selected panel type, different display items can be set.

Organization of this subsection

(1) Trend

If you select Trend as the panel type, the trend data (time-series data) of various metric such as CPU utilization of the specified node is displayed in the panel in a graphical format. It is used for analysis at the time of failure and estimation of future trends.

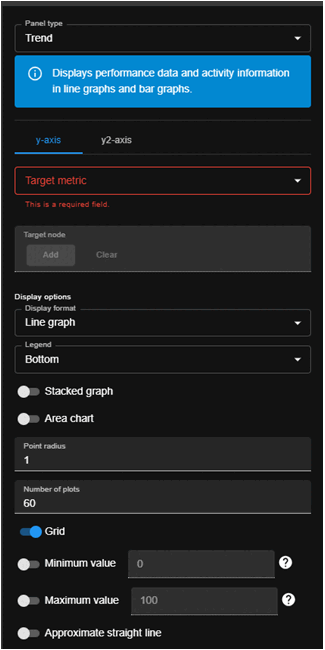

The following shows an example of the display when Trend is selected in the panel type.

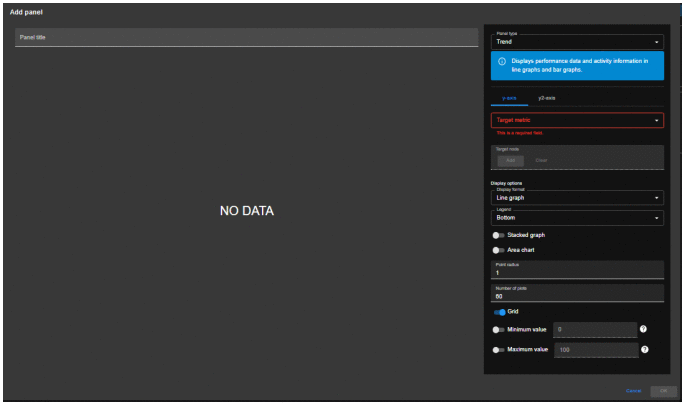

Figure 2‒31: Display example when Trend is selected as the panel type

Target metric

Select the target metric from the pull-down menu. Metrics include CPU utilization and free disk space.

Target node

Set target node by clicking the Add button.

We recommend that you have no more than 20 target node. If it exceeds 20, it will take longer to display the dashboard panel. In addition to the number of target nodes, the dashboard panel display is time-consuming, depending on the following conditions:

The fixed value of the range vector selector specified in PromQL of target metric (promql of the metric definition file)
The number of performance data samples associated with the target nodes for the target metric
The number of label sets for performance data associated with target node in target metric
The duration of Display range setting in the panel
Number of plots in the panel

Display options

Select a display format and legend from the pull-down menus.

Display format

Select one of the following display formats from the pull-down menu:

Line graph
Bar graph

Legend

Select the display position of the legend from the next pull-down menu.

Hidden
Bottom

Stacked graph

Select whether to enable the display in the stacked graph. When this is activated, the values of the selected nodes are stacked and displayed.

Area chart

Select whether to enable display in area graphs. This can be specified when the Line graph is set in the Display format.

Point radius

Specify the size of the plot. This can be specified when the Line graph is set in the Display format.

Number of plots

Specify the number of plots. This item can be specified when the Line graph is set in the Display format. The number of plots can be an integer from 2 to 400.

Grid

Determines whether the graph displays a grid. The default is on.

Minimum value

Specifies the minimum value for the axis of the graph.

Maximum value

Specifies the maximum value for the axis of the graph.

Approximate straight line

Specifies whether Approximate straight line is to be displayed.

y2-axis

When this button is clicked, the Enable y2 axis button is displayed. Click the button to create a graph with two axes. Setting items are the same as for y1-axis.

To Page Top

(2) Ranking

If you select the Ranking as the panel type, you can select more than one target node and view it as a ranking. It is easier to compare with other nodes.

The following shows an example of the display when the Ranking is selected for the panel type.

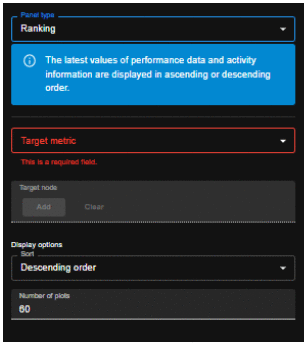

Figure 2‒32: Display example when Ranking is selected as the panel type

Target metric

Select target metric from the pull-down menu. Metric can include CPU utilization, free disk space, and so on.

Target node

Set target node by clicking the Add button.

We recommend that you have no more than 20 target nodes. If the number exceeds 20, displaying the dashboard panels will take longer. In addition to the number of target nodes, the display time depends on the following conditions:

The fixed value of the range vector selector specified in PromQL of target metric (promql of the metric definition file)
The number of performance data samples associated with the target nodes for the target metric
The number of label sets for performance data associated with target node in target metric
The duration of Display range setting in the panel
Number of plots in the panel

Display options

Select Sort from the pull-down menu.

Descending order
Ascending order

Number of plots

Specifies the number of trend data to use for the graph display. The ranking panel displays the latest values of this trend data. The number of plots can be an integer from 1 to 300.

To Page Top

(3) Numerical value

When the Numerical value is selected as the panel type, the latest trend data of the specified node is displayed in numerical format. Use this format for operations that want to check only the most recent metric. Large numbers are displayed so that you can check specific values from a distance.

If you want to monitor the color change of the numerical panel, use it in the case where values such as usage rate and usage are monitored for increase.

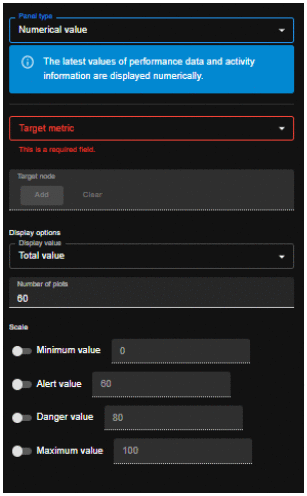

The following shows an example of the display when the Numerical value is selected for the panel type.

Figure 2‒33: Display example when Numerical value is selected as the panel type

Target metric

Select target metric from the pull-down menu. Metrics include CPU utilization, network transmission speed, and so on.

Target node

Click the Add button to set the target node.

The fixed value of the range vector selector specified in PromQL of target metric (promql of the metric definition file)
The number of performance data samples associated with the target nodes for the target metric
The number of label sets for performance data associated with target node in target metric
The duration of Display range setting in the panel
Number of plots in the panel

Display options

Select the value to be displayed from the pull-down menu. The default is Total value.

Total value
Average value

Specify Minimum value, Alert value, Danger value, or Maximum value, When the set value is exceeded, the panel color changes.

Minimum value: Specify the minimum value. The default is 0.
Alert value: Specify the warning value. The default is 60.
Danger value: Specify the hazard value. The default is 80
Maximum value: Specify the maximum value. The default is 100.

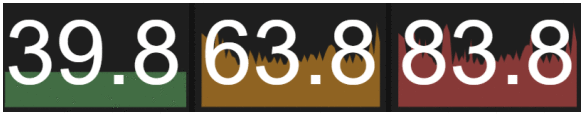

The following table shows the meaning of panel colors.

Red: When the value of Danger value is exceeded
Orange: When the value of Alert value is exceeded and the value is less than or equal to the Danger value.
Green: If the value is less than or equal to the number of Alert value or if Alert value or Danger value is not specified

Number of plots

Specifies the number of trend data to use for the graph display. The numerical value panel displays the most recent value of this trend data. The number of plots can be an integer from 1 to 300.

To Page Top

(4) Gauge

When the Gauge is selected as the panel type, the latest trend data of the specified node is displayed in gauge format. It is used for operations where you want to check only the value of the most recent metric. Large display on gauge, so you can check if it is in Minor or Critical area from a distance.

If you want to monitor the color change of the gauge panel, use it in the case of monitoring the increase in values such as usage rate and usage.

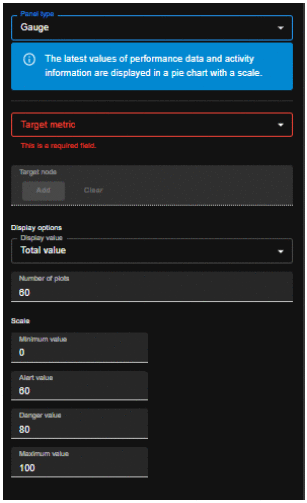

The following shows an example of the display when the Gauge is selected in the panel type.

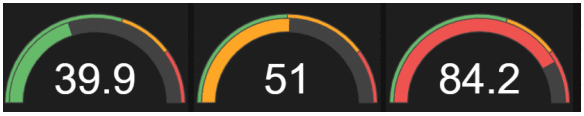

Figure 2‒34: Display example when Gauge is selected as panel type

Target metric

Select target metric from the pull-down menu. Metrics include CPU utilization, network transmission speed, and so on.

Target node

Set target node by clicking the Add button.

The fixed value of the range vector selector specified in PromQL of target metric (promql of the metric definition file)
The number of performance data samples associated with the target nodes for the target metric
The number of label sets for performance data associated with target node in target metric
The duration of Display range setting in the panel
Number of plots in the panel

Display options

Select the value to be displayed from the pull-down menu. The default is Total value.

Total value
Average value

Specify Minimum value, Alert value, Danger value, or Maximum value. When the set value is exceeded, the panel color changes.

Minimum value: Specify the minimum value. The default is 0.
Alert value: Specify the warning value. The default is 60.
Danger value: Specify the hazard value. The default is 80
Maximum value: Specify the maximum value. The default is 100.

The following table shows the meaning of panel colors.

Red: When the value of Danger value is exceeded
Orange: When the value of Alert value is exceeded, and the value is less than or equal to the Danger value.
Green: If the value is less than or equal to the number of Alert value or if Alert value or Danger value is not specified

Number of plots

Specifies the number of trend data to use for the graph display. The gauge panel displays the most recent value of this trend data. The number of plots can be an integer from 1 to 300.

To Page Top

(5) Alert information

When the Alert information is selected as the panel type, the number of alerts occurring under the target node is displayed. Alerts are displayed when a certain period of time has passed when the metric exceeds the threshold and is canceled when the threshold is less than or equal to the threshold.

The following shows an example of the display when the Alert information is selected in the panel type.

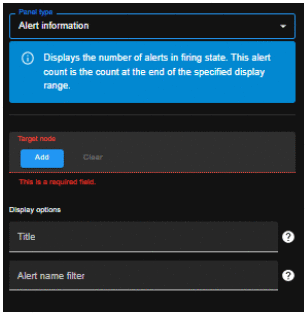

Figure 2‒35: Display example when Alert information is selected as the panel type

Target node

Set target node by clicking the Add button.

Display options

You can narrow down the alerts that you want to view. You can also specify only the Alert name for the alert that is displayed.

In the donut chart, the number of alerts per severity is displayed.

Red: Emergency/Alert/Critical
Orange: Error
Yellow: Warning
Green: Notice/Information/Debug
Gray: Others

Click the Alert information panel to display the Instance list window.

[Figure]

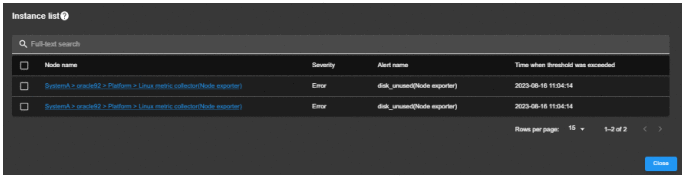

Instance list window

Node name: Displays the node on which the alert occurred.
Severity: Displays the severity of the alert.
Alert name: Displays the type of alert that occurred.
Time when threshold was exceeded: Displays the time when the threshold was exceeded.

It becomes an alert state at the time when the time specified in the alert definition has elapsed since the threshold was exceeded.

Time when threshold was exceeded is the first time the threshold was exceeded. This is different from the time when an alert state was triggered after a certain amount of time after being exceeded.

To Page Top

(6) Node state

Select the Node state as the panel type to display the status of the specified IM management node. Displays the status of the selected node.

The following shows an example of the display when the Node state is selected in the panel type.

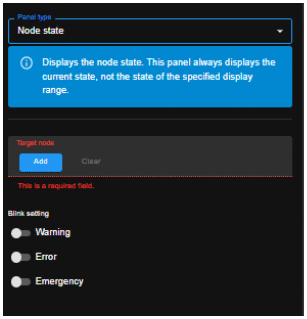

Figure 2‒36: Example of display when Node statue is selected as the panel type

Target node

Set target node by clicking the Add button.

[Figure]

The meaning of the panel color of the node state is as follows:

Red: Emergency/Alert/Critical
Orange: Error
Yellow: Warning
Green: Normal/Resolved

Blink setting

The default for blinking is Never.

Warning button: When enabled, the entire node state panel flashes when the target node is in the Warning state.
Error button: When enabled, the entire node state panel flashes when the target node is in the Error state.
Emergency button: When enabled, the entire node state panel flashes when the target node is in the Emergency/Alert/Critical state.

To Page Top

(7) Node state map

When the Node statue map is selected as the panel type, the status of the specified node is displayed on the background image. You can also display multiple nodes.

When the Node statue map is selected in the panel type, the following is a sample view.

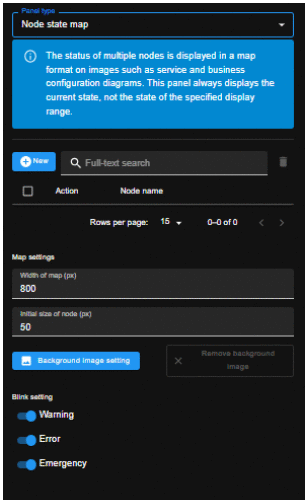

Figure 2‒37: Display example when Node state map is selected as the panel type

New button

Click the New button to add the target node. The target node can be specified more than once.

button

Removes the selected target node from the map.

Map settings

Width of map (px): Specify the maximum width of the background image size. The default is 800. The unit is px (pixels). If the specified maximum width is smaller than the panel size, it is displayed reduced. The aspect ratio is not changed. If the vertical size is larger than the panel size, a scroll bar is displayed.
Initial size of node (px): Specify the size to display the node specified in the Node state. The default is 50. Units are in px (pixels).
Background image setting button: Click to specify the background image of Node state map.

Blink setting

The default for blinking is "Yes".

Warning button: When enabled, the entire node status panel flashes when the target node enters the Warning state.
Error button: When enabled, the entire node status panel flashes when the target node enters the Error state.

Emergency button: When enabled, the entire node status panel flashes when the target node enters the Emergency/Alert/Critical state.

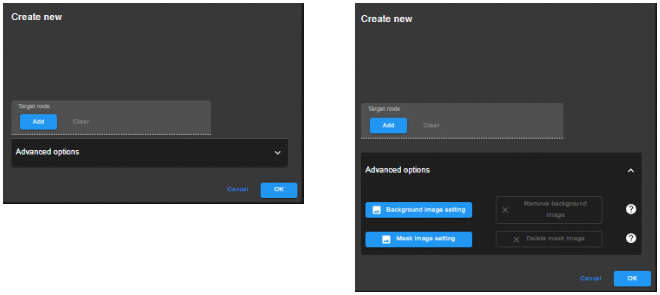

Figure 2‒38: Create new window

Add button

Click the Add button to set the target node.

Background image setting button

When the background image is set, the node state color is displayed in the transparent part of the background image.

Mask image setting button

The element of the background image is multiplied by the mask image, and the transparent part of the mask image is displayed on the window.

OK button

Click to return to the Add panel window. The added node is placed in the upper left corner.

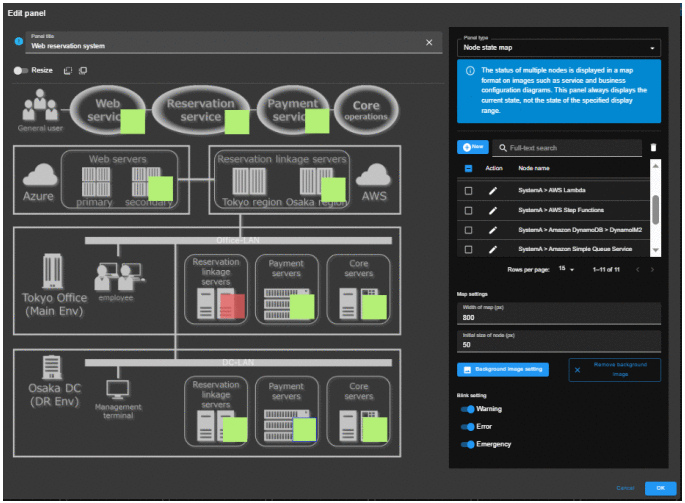

Figure 2‒39: Example of display when background image is set

Resize button

Select to change the display size of the node.

button

Move the selected node icon on the map to the back. Use when nodes overlap on the map.

button

Brings the selected node icon to the front on the map. Use when nodes overlap on the map.

To Page Top

(8) Text

Select the Text for the panel type to display the text data. Text can be written in a markdown format.

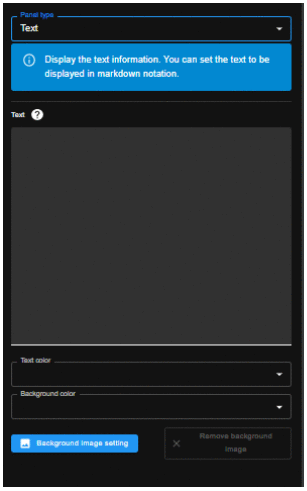

The following shows an example of the display when the Text is selected for the panel type.
