2.3.2 Preview Execution Script of Response Action window
The Preview Execution Script of Response Action window displays the execution contents specified in the Run Response Action window by replacing the specified variable with the event information. You can check whether response action has been successfully replaced prior to executing it, or whether response action has been executed properly.
|
|
![[Figure]](./GRAPHICS/DD020300.GIF)
|
|
![[Figure]](./GRAPHICS/DD020310.GIF)
|
|
![[Figure]](./GRAPHICS/DD020320.GIF)
|
|
![[Figure]](./GRAPHICS/DD020330.GIF)
- Action type
-
Displays the type of the specified action.
![[Figure]](./GRAPHICS/DI019120.GIF)
-
A
is displayed next to the label if one of the following conditions is true:
-
Upper limit exceeded due to variable expansion
-
Attribute corresponding to variable does not exist
-
Attribute value of the attribute corresponding to the variable is empty
-
Invalid encoding specification format for a variable
-
Invalid type specification for a variable
-

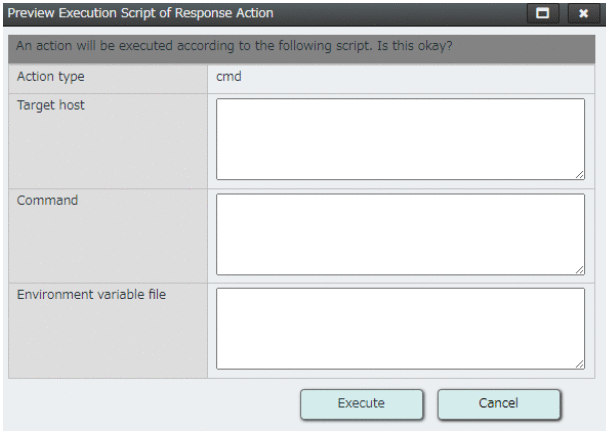

- Target host
-
Displays the host name under which response action runs.
- Command
-
Displays the command line to be executed.
- Environment variable file
-
Displays the name of environment variable file stored on the host where response action runs.

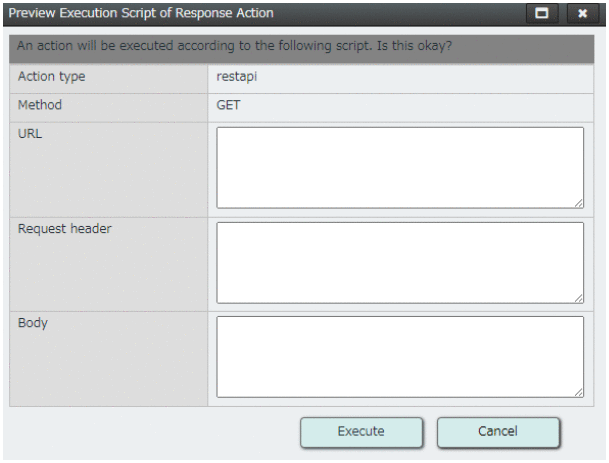

- URL
-
Displays URL of REST API.
- Request header
-
Displays the request header of REST API in object format.
- Body
-
Displays the body of REST API in an object format.

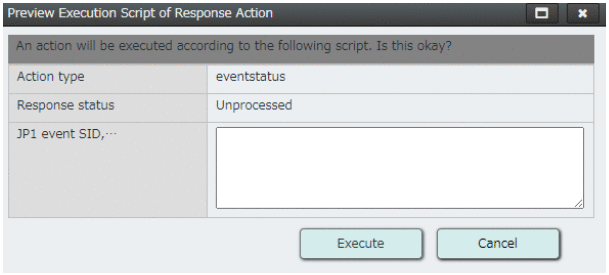

- Response status
-
This displays the response status.
- JP1 event SID, ...
-
Displays SID of JP1 events for which you want to obtain response status.

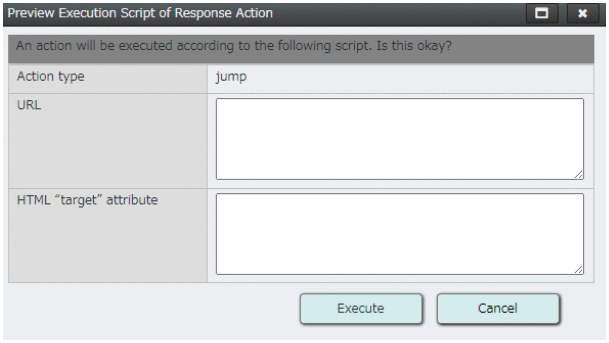

- URL
-
Displays the destination URL.
- HTML "target" attribute
-
Displays target properties of HTML when opening the jumped URL.
- Execute button
-
Run response action.
- Cancel button
-
Close the Preview Execution Script of Response Action window.
