2.1 Overview of the Integrated Operation Viewer window

When a user logs in to JP1/IM - Manager (Intelligent Integrated Management Base), the Integrated Operation Viewer window appears.

The Integrated Operation Viewer window consists of two areas: the Operating status area and the Details area. You can switch the display format of the Operating status area between the sunburst and tree chart format, or search results. In the Details area, you can change the tab to see the information of the IM management node selected in the Operating status area.

Important

Operation of the Integrated Operation Viewer window can not be done with the keyboard.

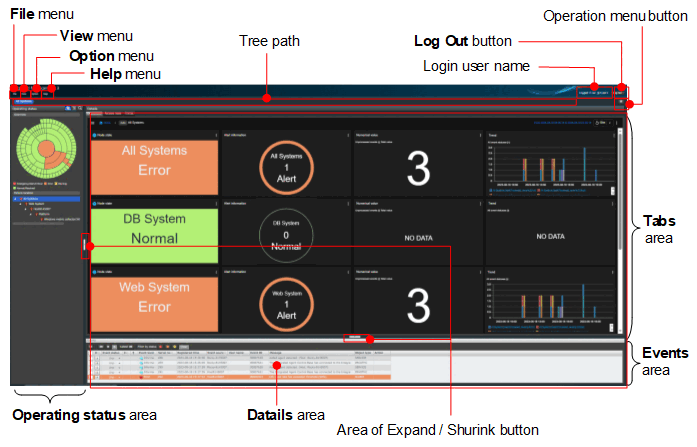

The figures below show examples of the Integrated Operation Viewer window.

Figure 2‒1: Operating status area in Integrated Operation Viewer window

The following describes the items displayed in the window:

File menu

Displays the following menu:

• Log Out

  Clicking it logs you out from the Integrated Operation Viewer window and then displays the Login window.

View menu

Displays the following menu:

• Dashboard List

  Display the Dashboard List dialog box.

• List of Response Action Results

  Display the List of Response Action Results window.

Option menu

This menu is used to configure the settings required for operation monitoring, configure the operation monitoring target, and execute operation of the functions used for operation monitoring. Click to display the next menu. Menus other than Run Response Action are displayed for users with JP1_Console_Admin privileges.

• Issue Initial Secret

  Display the Show Initial Secret window.

• Set Up Definition Files for Managers

  Displays the List of Definition Files for Managers window or the List of Definition Files(host-name) window.

• Set UP Integrated Agents

  Display the List of Integrated Agents window.

• Add/Delete Lower Managers

  Display the List of Lower Managers window.

• Add/Delete IM Clients

  Display the List of IM Clients window.

• Run Response Action

  Display the Run Response Action window.

Help menu

Displays the following menu items:

• Online Manual

  Displays the online manual. With the default settings of the Integrated Operation Viewer at the time of installation, clicking the Help button does not open the manual. For details about how to set up to display the manual in Windows or UNIX, see 1.24 Saving manuals to a computer (for Windows) or 2.22 Saving manuals to a computer (for UNIX) in the JP1/Integrated Management 3 - Manager Configuration Guide, respectively.

• About

  Displays the version of the Integrated Operation Viewer .

Login user name

Displays the name of the user currently logged in the Integrated Operation Viewer window.

Log Out button

Used to log out from the Integrated Operation Viewer window and display the Login window.

Tree path

Displays the tree path to the hierarchy selected in the Operating status area. At login, All Systems is displayed.

When you click a hierarchy name link, the window changes to show the information of the selected hierarchy.

If the area is not enough to show a tree path, you see the button on the left edge and the button on the right edge, which allow you to scroll the tree path. Click either of the buttons to scroll the path to the left or right.

Operation menu button

Shows the following operation menu items:

• Copy tree URL

• Copy tree SID

• Copy tree path

  Important

  If you share or refer to the window in which you selected the IM management node, use the URL copied through Copy tree URL.

Operating status area

By default, this area is displayed in the sunburst chart format. You can switch the display format using icons. For details, see 2.5 Operating status area.

Details area

Displays the information of component selected in the Operating status area.

Tabs area

The Tabs area shows the information related to the component selected in the Operating status area on a tab basis. For details about each tab, see 2.6.1 Tabs area.

Events area

Lists the JP1 events occurring in the components selected in the sunburst chart, the tree chart, search results, or the Job flow or Related node tab.

For details, see 2.6.2 Events area.

Expand/Shrink button

Click this button if you want to close the area. To show the area, click it again. Drag it if you want to change the width of the area.
