2.4.2 Setting Dashboard window

The "Setting Dashboard" window is a screen for creating or editing new dashboards. This is displayed when you click the [Add new] button in the [Dashboard list] dialog or click [Edit] from the operation menu on the [Dashboard] tab.

The following shows an example of the [DSetting Dashboard] window.

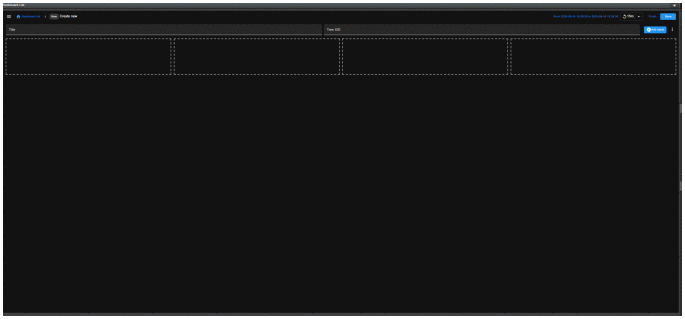

Figure 2‒27: [Setting Dashboard] window

[Dashboard name]

Specify the dashboard name up to255 character.

Display target date and time

The start date and time or the end date and time of the data to be displayed are displayed.

When selected, the Display range settings dialog box is displayed.

Update interval

Select the interval at which the data displayed in the dashboard is refreshed from the pull-down menu. The default is "10 minutes".

Manual
1 minute
5 minutes
10 minutes
15 minutes
30 minutes
1 hour

[End Edit]

Do not save the contents and end the edit.

[Save] button

Save your edits.

[Add panel] button

Clicking this button displays the [Add panel] window.

Miscellaneous Dashboard Operations

Clicking this button displays the various setting menus in the pull-down menu.

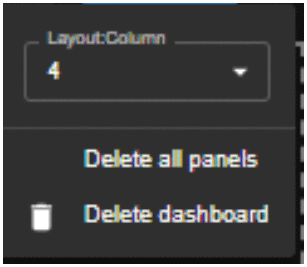

[Figure]

Layout column

Set the number of panel to display next to the dashboard.

You can set a value from 1 to 8.

Delete all panels

Deletes all panels in the dashboard.

Delete dashboard

Delete the dashboard you are configuring.
