2.4.1 Configuring the Dashboard Tab

The following is an example of the Dashboard tab.

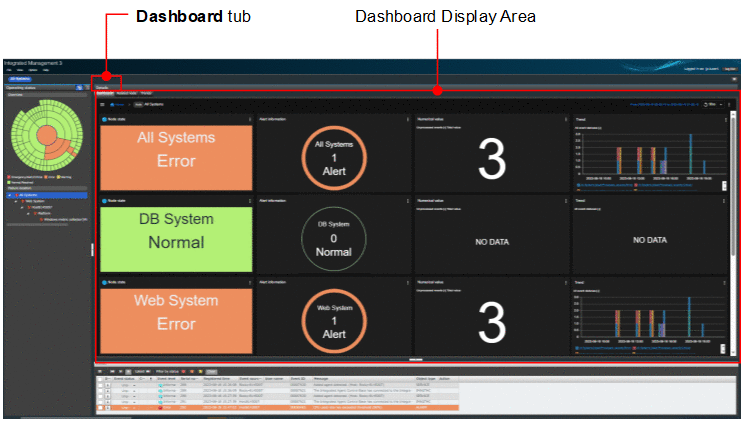

Figure 2‒24: Example of how the *Dashboard* tab appears

Organization of this subsection

(1) [Dashboard Display] area

(1) [Dashboard Display] area

The [Dashboard Display] area displays the screen according to the contents of the menu selected in the [Side Menu].

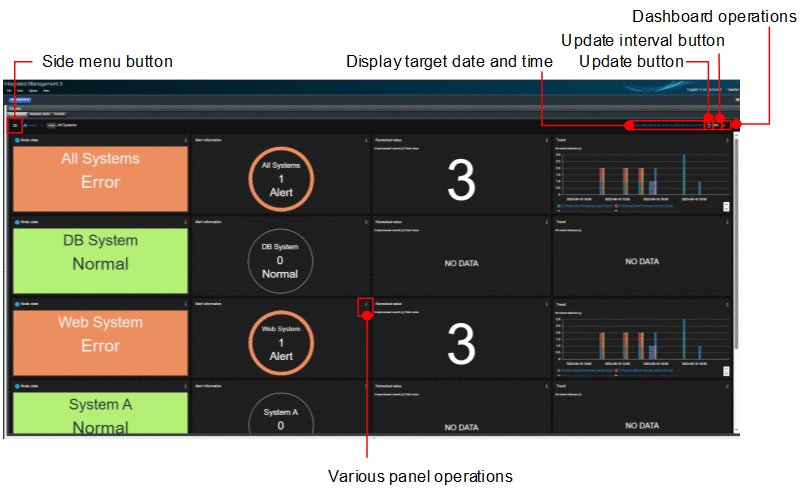

Figure 2‒25: Example of display in the [Dashboard Display] area

The following are the display items:

[Switch display of side menu] button

Display the side menu. The side menu displays a list of Home and favorites.

List of dashboards added to favorites

The names of the dashboards you have added to your favorites are displayed in a list. When you click the dashboard name, the corresponding dashboard screen is displayed in the [Dashboard Display] area. When you click Home [Figure] to display, the dashboard screen corresponding to the selected node is displayed.

Display target date and time

The start and end date and time of the data to be displayed are displayed.

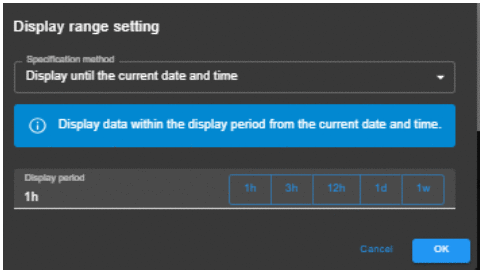

If you want to change the display target range, click to display the Display range settings dialog box.

[Figure]

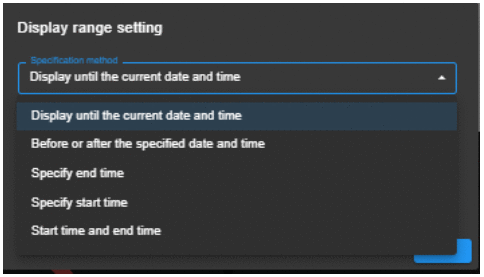

When you click the pull-down menu of Specification method, you can select "Display up to now", "Before and after specified date and time", "Specify end date and time", "Specify start date and time", and "Specify start date and time".

[Figure]

The display period can also be set directly as follows:

1h: 1 hour
2d: 2 day
3w: 3 week

Update button

Click [Figure] to update the latest status.

Update interval

click [Figure] to select the interval at which the data displayed in the dashboard is refreshed from the pull-down menu. The default is 10 minutes.

Manual
1 minute
5 minutes
10 minutes
15 minutes
30 minutes
1 hour

[Panel Display] area

Multiple panels that you have created are displayed.

Miscellaneous Dashboard operations

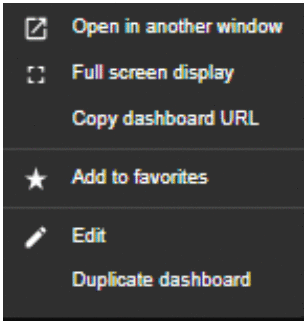

Click [Figure] on the dashboard to display the dashboard operation menu.

[Figure]

View in a separate window: Displays the dashboard in a separate window.
Full Screen View: Displays the dashboard in full screen.
Copy dashboard URL: Copy the dashboard URL.
Favorites, unfavorites: Add or unsubscribe favorites.
Edit: Switch to the Edit Dashboard screen.
Dashboard cloning: Duplicate the dashboard and switch to the dashboard edit screen.

(a) Panel operation

Describes the operation of the panels displayed in the dashboard that is being monitored.

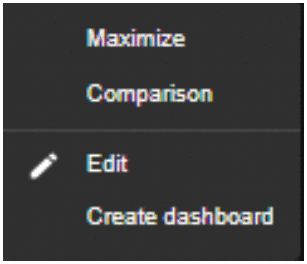

Various panel operations

[Figure]

Maximize: Maximize the appropriate panel. The maximized panel returns to its original size by clicking on the upper right demaximize.
Comparison: Displays a new dashboard with only the panel you are currently viewing and two panels with different ranges. It is used when you want to refer to a comparison with the past time zone, such as a trend graph.

When you click [Compare], the [Display range settings] dialog box is displayed.

You can specify the panel in the same way as the dashboard display range setting.
Edit: Switch to the Edit Dashboard screen.
Dashboard creation: The dashboard creation screen will change.

(b) Dashboard List dialog

Select [File] - [Dashboard List] from the integrated operation viewer menu to display the Dashboard List dialog.

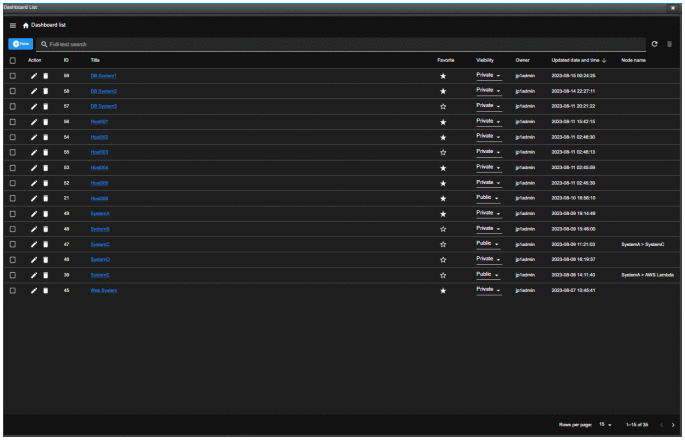

Figure 2‒26: Example of displaying the *Dashboard List* dialog

Click [Figure] to display a sidebar with a list of your favorite dashboards. When you select a dashboard in the list, the selected dashboard is displayed.

New

Click this button to display the [New Dashboard] window. You can add dashboards.

Full-text search

You can search for the full text, such as the title of the dashboard.

Click to delete the selected dashboard.

[Select / Deselect] check box

Select the check box in the header to select all dashboards. Click again to clear the full selection.

If you want to select only specific dashboards, select the individual check boxes.

Click [Figure] to update the dashboard list.

ID

Displays the ID of the dashboard that was automatically numbered by the system.

Title

The title of the dashboard. Click to switch to the monitoring screen of the selected dashboard.

Favorite

By clicking [Figure] , add favorite to the dashboard and switch the icon to . For dashboards that have already been added to favorites, click to remove the favorite and switch the icon to .

: Dashboards that are registered as favorites
: Dashboards that are not registered as favorites

Scope of the exhibition

In the pull-down menu, select the public scope of the dashboard.

Personal: Only the owner will see it.
Share: It is displayed to all JP1 users who can log in to the Integrated Operations Viewer.

Visibility

From the pull-down menu, select the visibility of the dashboard.

Private: Visible only to the owner.
public: Visible to users other than the JP1 user who created it.

Owner

Displays the JP1 username that owns the dashboard.

Updated date and time

Displays the date and time when the dashboard title was last modified.

Node Name

The node name associated with the dashboard is displayed.
