2.2.5 List of Lower Managers window

The List of Lower Managers window is used to manage the secret used for communication with lower manager.

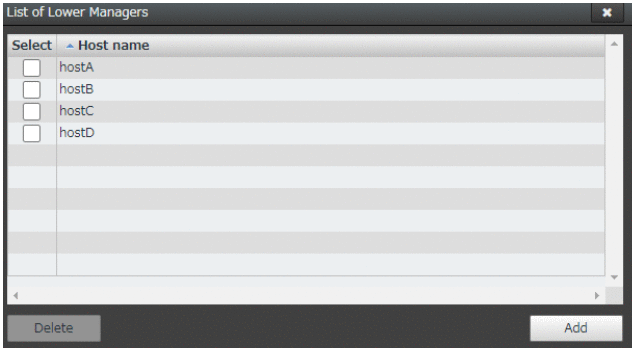

Figure 2‒11: List of Lower Managers window

List of Lower Managers

Lists lower manager. The default is ascending order of the host name. You can sort by the host name column.

[Select] checkbox

Select the row for the host name that you want to delete.

[Host name]

Displays the host name on which lower manager is installed.

[Delete] button

Click this button to display a screen for confirming the deletion. [OK] Click this button to delete the host name selected in the [Select] check box.

Add button

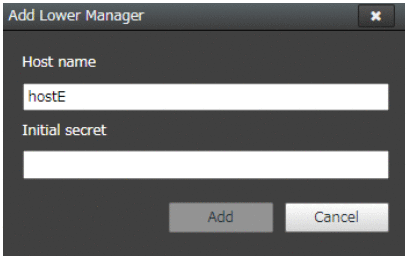

The Add Lower Manager dialogue box appears.

[Host name]

Enter the host name of lower manager, up to 255 characters. You can enter the following characters:

Numbers (ASCII code 0x30 to 0x39), lowercase letters (0x61 to 0x7a), uppercase letters (0x41 to 0x5a), hyphens (-) (ASCII code 0x2d), periods (.) (ASCII code 0x2e)

Note that hyphen "-" and period "." cannot be used at the beginning.

[initial secret]

Enter a initial secret, up to 1024 characters. Characters within ASCII code 0x20 to 0x7E can be entered. The entered characters are displayed in the asterisk of **.

[Add] button

Add the content you entered to lower manager info. If [Host name] or [Initial secret] is blank, this button is inactive.

Close button

Close this screen.
