2.2.4 List of IM Clients window

The List of IM Clients window displays a list of registered IM clients. You can also add IM clients, retrieve IM client secrets, and delete registered IM client information.

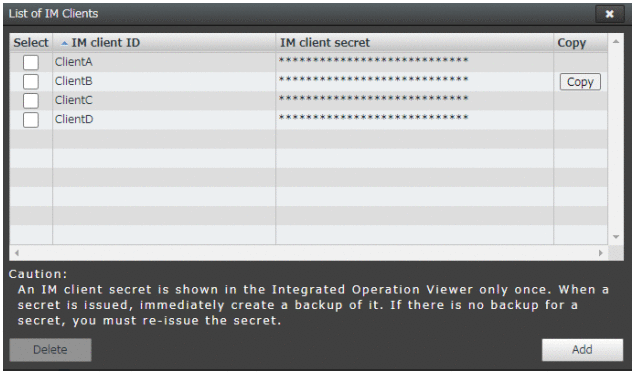

Figure 2‒10: List of IM Clients window

The following shows the items displayed in the [IM client list] window.

List of IM clients

Lists the IM client that the manager authentication for. Defaults to ascending order of IM client ID. It can be sorted in [IM client ID] column.

10 items are displayed in the list. If all IM client cannot be listed, a scroll bar is displayed.

[Select] checkbox

Select the row for IM client ID that you want to remove.

[IM client ID]

Displays ID of the registered IM client secret.

If it cannot be displayed completely, "..." is displayed at the end.

[IM client secret]

IM client secret is displayed in ** abbreviation.

[Copy] button

The [Copy] button is displayed only in the line of the IM client added in the [Add IM client] dialog box. When clicked, "IM client ID: IM client secret" is copied to the clipboard.

Add button

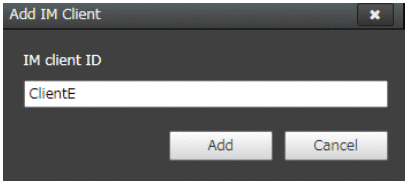

Click this button to display the Add IM Client dialog box.

[IM client ID]

Enter a ID for IM client secret, up to 280 characters. You cannot specify the same ID as an added ID.

Characters that can be entered include ASCII code 0x20 to 0x7e excluding the colon ":". The following characters cannot be entered.

• Characters beginning with AGENT_

• Characters beginning with "MANAGER_"

[Add] button

When clicked, creates and adds a IM client secret with the entered IM client ID.

[Delete] button

Click this button to display a screen for confirming the deletion. [OK] Clicking this button deletes client secret of IM client ID selected in the [Select] checkbox.

Close button

Close this screen.
