5.2.3 Displaying detailed JP1 event information
You can display the detailed attribute information of JP1 events that are displayed in the events list.
To display detailed information, in the events list of the Events area, click ![[Figure]](./GRAPHICS/DI011000.GIF)
of the JP1 event of which you want to display the attribute. The Event detail window opens in a separate window.
|
|

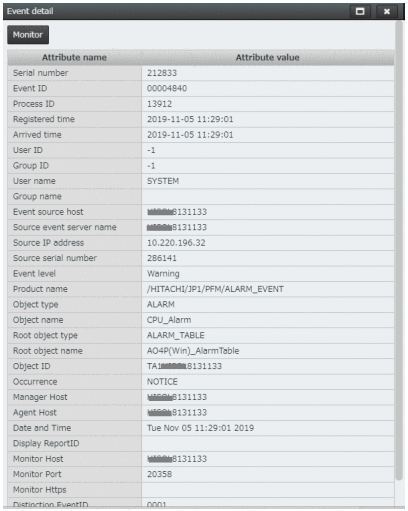

![[Figure]](./GRAPHICS/DD050400.GIF)
The Event detail window displays the event attribute name and attribute value registered for that JP1 event. The registered attributes differ depending on the JP1 event.
In addition, if a selected JP1 event is an event that can be started as a monitor, the Monitor button is enabled. Clicking it opens a window of application that corresponds to the JP1 event.
If there is only one selected JP1 event, the Run Response Action(Event Inheritance) button is activated. Clicking this button displays the Run Response Action window.
The items that are displayed as detailed information are the same as those for the events list of Central Console. For details, see 6.1.1 Items displayed in the events list.
