5.2 Viewing JP1 events (Events area)
By checking the attributes and response status of the system on the Events area, you can operate as follows.

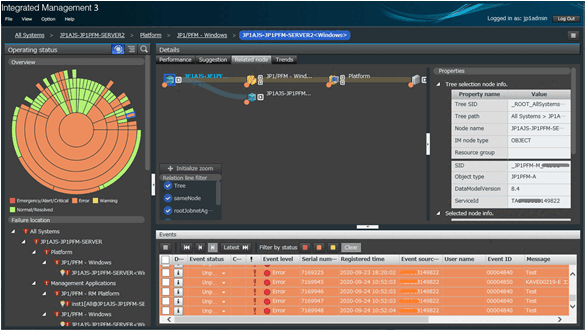

When you select an item in the Operating status area or the Details area of the integrated operation viewer window, ongoing JP1 events for the selected item are listed in the Events area.
New JP1 events are added at the bottom of the events list. The JP1 event with the most recent arrival date/time is displayed at the very bottom of the events list.
|
|
![[Figure]](./GRAPHICS/DD050200.GIF)
The following types of events are displayed in the events list:
-
Event registered in the integrated monitoring database
-
Event that occurs from the selected item and an event that occurs from one of all the underlying items
-
Item that a logged-in user has access permissions to, if a resource group or business group is set up
-
Event that passed a filter according to the event receiver filter setting, if the event receiver filter is set up
By viewing the system attributes and the event status in the Events area, you can:
-
Check the status of the system where a failure occurred, because you can narrow down the events related to the system easily.
-
Carefully examine the cause of the failure and how to handle it with the details of the event.
-
Change an event status easily.
-
For consolidation events, you can see the repeating events that have been consolidation on the repeated event list window by displaying the repeated event list window.
The repeat event List window is displayed by clicking the Repeated event list menu in the event list.
-
If the event is a monitor started event, you can start the application window for the event and see more information about the event.
You can start the monitor from the monitor menu in the event list.
