2.4.1 JP1/IM - Manager function list

The following figure shows the functions of component programs used for system operation monitoring by JP1/IM - Manager.

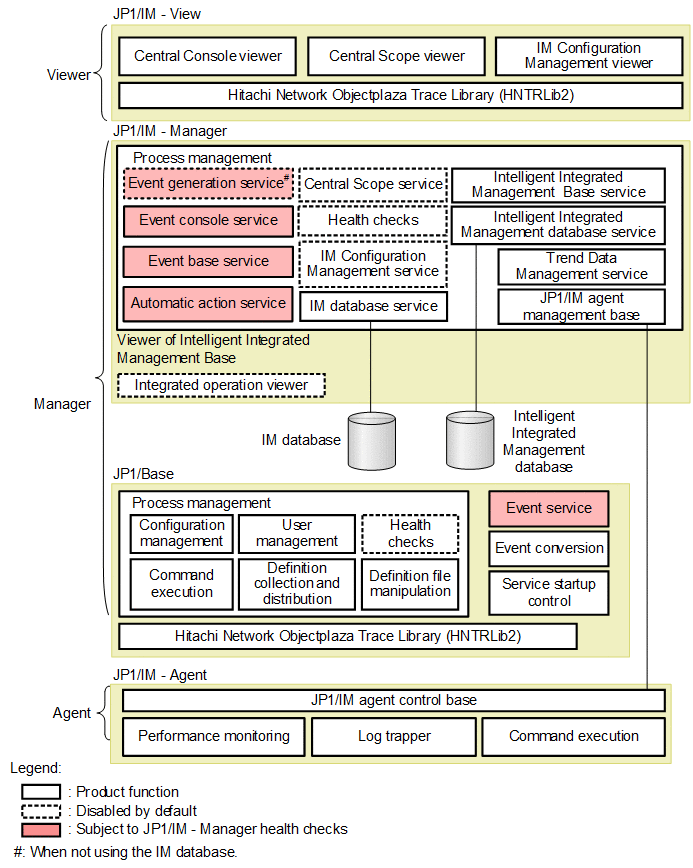

Figure 2‒10: Functions provided by the component products

JP1/IM - Manager is linked with the prerequisite product JP1/Base, and operates using the core functionality provided by JP1/Base. JP1/Base also runs on the agents in the JP1/IM - Manager system. JP1/IM - Manager thus has an inseparable relationship with JP1/Base.

You can also use JP1/IM - Agent as agent for JP1/IM - Manager.

The functions in the figure above are summarized below.

Table 2‒3: Summary of product functions(JP1/IM - Manager)
Function		Description	Service name	Reference
Intelligent Integrated Management Base	Managing the System with System Configuration Information and JP1 Events	Uses data from the systems, such as relations between multiple systems, job management, operation monitoring, event management and performance information, to monitor the status of system configuration information.	Intelligent Integrated Management Base servicing Intelligent Integrated Management Database servicing Integrated operation viewer	3.1 System management based on the system configuration information and JP1 events
	Integrated monitoring of systems with IM management node	Checks the operation status of the components (IM management node) of the monitored system displayed in integrated operation viewer hierarchically based on JP1 events. This enables integrated monitoring of the system.		3.5 Integrated system monitoring using IM management nodes
	Dashboard Visualizing IT SystemHealth	Graphically displays the performance data collected by IM management node status monitoring, alert information monitoring, and IT resource monitoring in a freeform layout.		3.2 Visualizing IT Health
	Event display	Displays the events that occur on the monitored hosts in the event list of integrated operation viewer.		3.10 Event management
	Related node indicator	Integrated operation viewer visualizes the connections of the components as related node and provides an at-a-glance view of multi-system relationships and system-wide status.		3.11 Related node display function
	Trend information indicator	Displays trend information (job residence status, host-performance information) of IM management node or related node selected in integrated operation viewer. This helps you to proactively check issues and determine the cause of problems when they occur.		3.12 Trend data display function
	Linkage with other products	You can retrieve system configuration information from monitored products, such as JP1/IM - Agent, JP1/Base JP1/AJS, JP1/PFM, and monitor the data comprehensively of each product from integrated operation viewer.		3.14 Linking with other products (Intelligent Integrated Management Base)
	Response action	Response action is proposed according to the status of the system. You can select a suggestion and run response action. In addition, auto and manual execution feature of Response Action using JP1/IM - Agent provides a flexible and centralized way to operate and verify response action from integrated operation viewer.		3.14.5 Suggestion of response actions appropriate to the system status 7. Automatic execution and manual execution of response action (JP1/IM - Agent linkage)
	Managing integrated agent	Manage the managed JP1/IM - Agent.	JP1/IM agent management base	3.6.3 Integrated agent management function
Central Console	Centralized monitoring using JP1 events	Monitors JP1 events.	Central Console viewer	4.1 Centralized monitoring using JP1 events
	JP1 event management	Controls the display of JP1 events in the Central Console viewer.	Event console service
		Manages the integrated monitoring database.	IM database service
		Acquires JP1 event information from the JP1/Base event service. Distributes acquired JP1 event information to the JP1/IM - Manager controls (event console service, automatic action service, and central scope service).	Event base service
		Controls JP1 events. Manages the event database.	JP1/Base
	JP1 event filtering	Filters JP1 events to select those required.	Central Console viewer Event console service Event base service Event issue service JP1/Base	4.2 Filtering of JP1 events
	Automated actions	Executes a command automatically, conditional on a specific event being detected by the event base service.	Automatic action service	6. Command Execution by Automated Action (JP1/Base linkage)
	Issue of correlation events	Correlates JP1 events acquired from the JP1/Base event service and registers them as correlation events with JP1/Base.	Event issue service (when not using the integrated monitoring database) Event base service (when using the integrated monitoring database)	4.3 Issue of correlation events
	Event conversion	Extracts information from log files and converts it into JP1 events (log file trapping) Extracts information from the Windows event log and converts it into JP1 events (event log trap conversion) Extracts information from SNMP traps managed by HP NNM version 7.5 or earlier and converts it into JP1 events (SNMP trap conversion).	JP1/Base	JP1/Base User's Guide manual
	Display of user-defined event attributes	Issues JP1 events from a user application by calling a JP1/Base function.	JP1/Base	4.14 Displaying user-defined event attributes
	Event guide function	Displays information about pre-registered response methods and procedures.	Central Console viewer	4.10 Event guide function
	CSV output of information displayed in JP1/IM - View	Outputs JP1 event information displayed in JP1/IM - View in CSV form.		4.15 CSV output of information displayed in JP1/IM - View
	System operation	Launches a linked application. Launches an associated application from the Tool Launcher. Executes a command from JP1/IM - View.		4.19 Performing system operations from JP1/IM
Central Scope	Tree monitoring	Centrally monitors objects in a tree view. Automatically creates a monitoring window.	Central Scope viewer Central Scope service	5.2 Monitoring tree 5.3 Automatically generating a monitoring tree 5.4 Editing a monitoring tree
	Visual monitoring	Centrally monitors objects in a map view.		5.5 Visual monitoring
	Guide function	Displays information about pre-registered response methods and procedures.		5.8 Guide function
IM Configuration Management^#1	Host management	Centrally manages the hosts in the JP1/IM system from the manager.	IM Configuration Management - View IM Configuration Management service IM database service	8.1 Host management
	System hierarchy management	Centrally manages the hierarchical structure of the system from the manager. An agent configuration (where JP1/Base is running on agent hosts and the manager host) and a remote monitoring configuration (where remotely connected hosts are monitored) are managed.		8.2 System hierarchy management
	Management of virtualization configuration information	Manages the hierarchical structure of the system, including virtual hosts.		8.3 Virtualization configuration management
	Business group management	Monitors multiple monitored hosts by creating a group based on the system used for a particular business operation, or based on which monitored objects are managed by a particular system administrator.		8.4 Managing business groups
	Profile management	Enables you to centrally manage, from the manager, the JP1/Base profiles running on each host or the profiles on the remotely monitored hosts.		8.5 Profile management
	Management of service activity information	Checks whether JP1/IM - Manager and JP1/Base services are active on each host.		8.7 Management of service activity information
	Import/export of IM Configuration Management information	Exports and imports IM Configuration Management information.		8.8 Exporting and importing IM Configuration Management information
Core functionality	Process management	Manages JP1/IM - Manager and its functions.	Process management	9.1 JP1/IM - Manager process management 9.4.9 JP1/Base process management
	Health check	Monitors the status of JP1/IM - Manager processes (other than the central scope service and IM configuration management service on the local host). Monitors the status of JP1/Base processes.	Health check JP1/Base	9.2 JP1/IM - Manager health check function 9.4.8 JP1/Base health check function
	Hitachi Network Objectplaza Trace Library (HNTRLib2)	Stores trace information from JP1/Base, JP1/IM - Manager, JP1/IM - View, and other component products.	HNTRLib2	9.4.7 Hitachi Network Objectplaza Trace Library (HNTRLib2)
	User management	Manages JP1 users. Manages command execution permissions.	JP1/Base	9.4.1 Managing JP1 users 9.4.4 Managing command execution
	Configuration management^#2	Manages the configuration of the JP1/IM - Manager system.		9.4.3 Managing the system hierarchy 9.4.4 Managing command execution
	Service startup control	Controls the service start/stop sequencing of products (including JP1/Base) registered with the Windows service.^#3		9.4.6 Managing service startup (Windows only)
	Command execution^#2	Control command execution. Manages command execution log files (manager only).		9.4.4 Managing command execution
	Definition collection and distribution^#2	Collects and distributes definition information related to the JP1/IM - Manager event service.		9.4.5 Collecting and distributing definition information
	Definition file manipulation	Use the functions of acquiring list, retrieving, updating, and deleting definition files to edit, etc. definition files.	Integrated operation viewer REST API	3.6.5 Definition file manipulation function

#1: Available when the IM Configuration Management database has been set up.

#2: JP1/Base function.

#3: Windows-only function.
